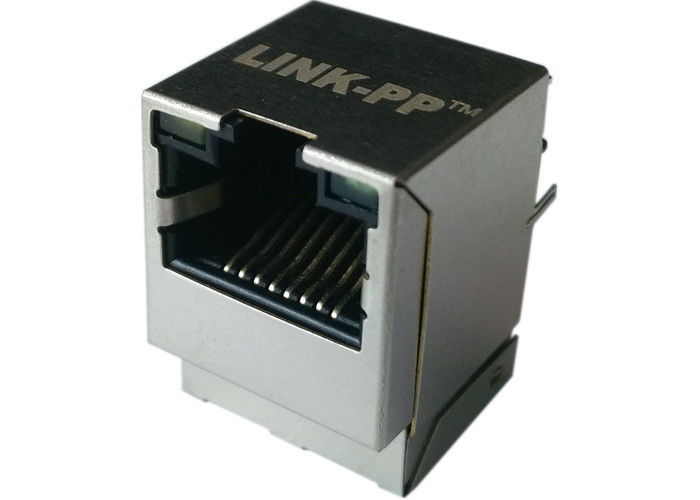

POE Vertikal RJ45 Jack LPJD5049BENL Top Entry Shield w / LED 10 Posisi 10 / 100M

Name: POE Vertikal RJ45 Jack LPJD5049BENL Top Entry Shield w / LED 10 Posisi 10 / 100M
Brand: LINK-PP
SKU: LPJD5049BENL
Price: 0.09 USD
Availability: InStock
Rating: 4.5 (191 reviews)

Rincian Produk

Tempat asal: Guangdong, Cina

Nama merek: LINK-PP

Sertifikasi: UL,ROHS,Reach,ISO

Nomor model: LPJD5049BENL

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 50/500/1000/25K

Harga: $0.09-$1.85

Kemasan rincian: 54PCS / Baki, 24Trays = 37 * 30 * 30cm = 1296PCS = 10kg / Carton

Waktu pengiriman: persediaan

Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day

Menyediakan kemampuan: 3000000/bulan

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyorot:
                                                                                                                                                                                                                                                Konektor RJ45 ditumpuk, konektor port multi


Spesifikasi:	LPJD5049BENL	No Bagian:	LPJD5049BENL
Ethernet:	10 / 100Base-T Power Ethernet PHY	Indikator:	LED Fleksibel
Mouting:	180 derajat	Sampel:	TERSEDIA

Spesifikasi:	LPJD5049BENL
No Bagian:	LPJD5049BENL
Ethernet:	10 / 100Base-T Power Ethernet PHY
Indikator:	LED Fleksibel
Mouting:	180 derajat
Sampel:	TERSEDIA

POE Vertikal RJ45 Jack LPJD5049BENL Top Entry Shield w / LED 10 Posisi 10 / 100M

LPJD5049BENL LINK-PP POE Rj45 Entri Teratas
Rj45 Dengan Dioxides Rectifier
Power Over Ethernet IEEE802.3af / pada Standar
Top Entry Rj-45 Model Dengan 10 / 100Base-T Magnetic Transformers Inside
Rj45 Dengan Pemasangan PCB Magnetik Terpadu

Spesifikasi Listrik @ 25 ℃
1.OCL: 350uH Min
@ 100KHz, 0.1V, 8mADC BIAS
2.Turns Ratio (%% P2%):
TX = 1CT∶1CT RX = 1CT∶1CT
Kerugian 3.Insion:
0,1-100MHz: -1,1dB Maks
4.Return Loss (dB Min):
0,5-30MHz: -18 40MHz: -15,5
50MHz: -13,6 60-80MHz: -12
5.Crosstalk (dB Typ):
0,1-100MHz: -40
6. Penolakan Mode Umum (dB Typ):
0,1-30MHz: -50 30-60MHz: -40
60-100MHz: -35
7. Isolasi Tegangan: 1500Vrms
8. Suhu Operasi: -40 ℃ ～ 85 ℃
