Rincian Produk
Tempat asal: Guangdong, Cina
Nama merek: LINK-PP
Sertifikasi: UL,ROHS,Reach,ISO

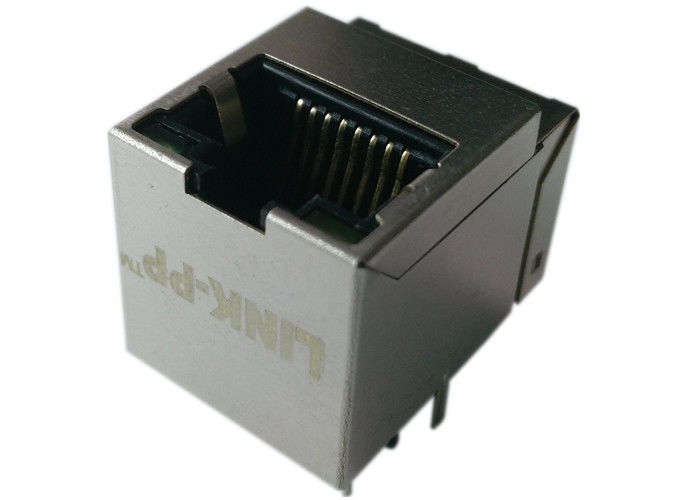

Nomor model: HFJV1-E1G16-L12RL
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 50/500/1000/25K
Harga: $0.09-$1.85
Kemasan rincian: 54PCS/Tray, 1296PCS = 10KG/karton
Waktu pengiriman: persediaan
Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day
Menyediakan kemampuan: 3000000/bulan
Spesifikasi: |
HFJV1-E1G16-L12RL |
No Bagian: |
LPJD4773BDNL |
Ethernet: |
1 x 10/100/1000Mbps |
Indikator: |
G-Y LED |
pemasangan: |
Top Entry, Perisai |
Sampel: |
Tersedia gratis |
Spesifikasi: |
HFJV1-E1G16-L12RL |
No Bagian: |
LPJD4773BDNL |
Ethernet: |
1 x 10/100/1000Mbps |
Indikator: |
G-Y LED |
pemasangan: |
Top Entry, Perisai |
Sampel: |
Tersedia gratis |
| Turn Ratio (± 2%): | TX = 1CT: 1CT RX = 1CT: CT |  |
| Induktansi OCL | 350uH MIN / @ 100KHz, 0,1V, 8mA DC Bias | |
| Rugi Penyisipan | -1.0dB MAX @ 1-65MHz | |
| Mengembalikan kerugian | -20dB MIN @ 1-10MHz | |
| -16dB MIN @ 10-30MHz | ||
| -12dB MIN @ 30-60MHz | ||
| -10dB MIN @ 60-100MHz | ||
| Pembicaraan silang | -40dB MIN @ 1-30MHz | |
| -35dB MIN @ 30-60MHz | ||
| -30dB MIN @ 60-100MHz | ||
| Penolakan Mode Biasa | -30dB MIN @ 1-50MHz | |
| -20dB MIN @ 50-150MHz | ||
| Tes Hipot | 1500Vrms MIN | |
| Kisaran Suhu Operasi | -40 ℃ ～ + 85 ℃ |
