Rincian Produk
Tempat asal: Guangdong, Cina
Nama merek: LINK-PP
Sertifikasi: UL,RoHS,Reach,ISO

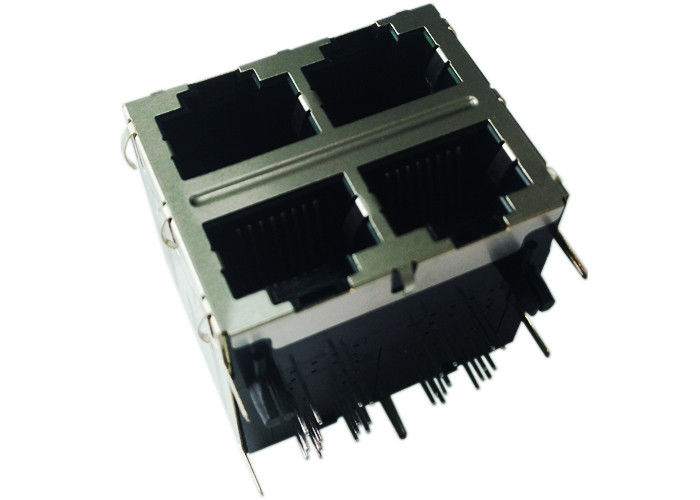

Nomor model: 1840182-1
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 50/500/1000/60K
Harga: $0.11-$24
Kemasan rincian: BAKI
Waktu pengiriman: persediaan
Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day
Menyediakan kemampuan: 180K/Bulan
Spesifikasi: |
1840182-1 |
No Bagian: |
LPJG27591CNL |
Ethernet: |
Ports 4x 1GbE |
pemasangan: |
Thru-Hole |
Penghentian: |
Solder |
Sampel: |
TERSEDIA |
Spesifikasi: |
1840182-1 |
No Bagian: |
LPJG27591CNL |
Ethernet: |
Ports 4x 1GbE |
pemasangan: |
Thru-Hole |
Penghentian: |
Solder |
Sampel: |
TERSEDIA |
| SPESIFIKASI LISTRIK @ 25 ℃ |  | ||
| 1.Turn Ratio (± 2%): | |||
| TX = 1CT: 1CT RX = 1CT: 1CT | |||
| 2.Inductance OCL: 350uH MIN | |||
| @ 100KHz / 0,1 V, 8mA DC Bias | |||
| Kerugian 3.Insion: | |||
| -1.0dB MAX @ 1.0-65MHz | |||
| 4.Return Loss: | |||
| -20dB MIN @ 1-10MHz | |||
| -16dB MIN @ 10-30MHz | |||
| -12dB MIN @ 30-60MHz | |||
| -10dB MIN @ 60-100MHz | |||
| 5.Cross talk: | |||
| -40dB MIN @ 1-30MHz | |||
| -35dB MIN @ 30-60MHz | |||
| -30dB MIN @ 60-100MHz | |||
| 6. Penolakan Mode Umum: | |||
| -30dB MIN @ 1-50MHz | |||
| -20dB MIN @ 50-150MHz | |||
| 7.Hipot Test: 1500Vrms MIN | |||
| 8. Rentang Suhu Operasi: 0 ℃ UNTUK 70 ℃ | |||
