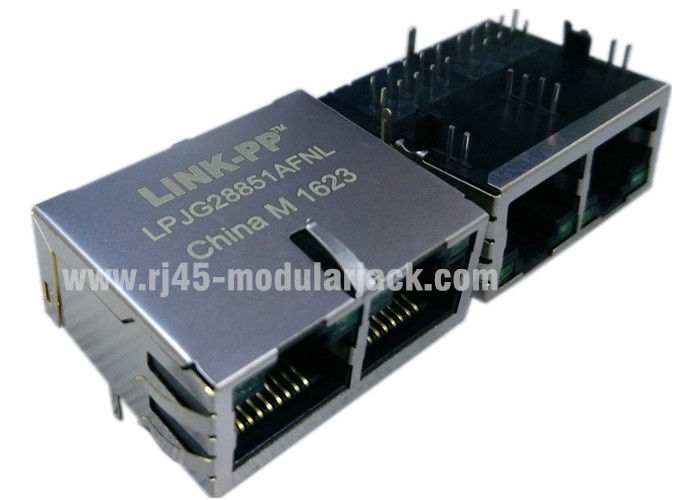

LPJG28851AFNL LINK-PP 2x RJ45 10/100 / 1000Mbps Tab-up Gigabit Ethernet Jack

Name: LPJG28851AFNL LINK-PP 2x RJ45 10/100 / 1000Mbps Tab-up Gigabit Ethernet Jack
Brand: LINK-PP
SKU: LPJG28851AFNL
Price: 0.11 USD
Availability: InStock
Rating: 5 (149 reviews)

Rincian Produk

Tempat asal: Cina

Nama merek: LINK-PP

Sertifikasi: SGS, UL,CE, ISO9001:2008,REACH

Nomor model: LPJG28851AFNL

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 50/500/1000/25K

Harga: $0.11-$12

Kemasan rincian: BAKI

Waktu pengiriman: persediaan

Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day

Menyediakan kemampuan: 208K/Bulan

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyorot:
                                                                                                                                                                                                                                                konektor port multi, Jack ganda RJ45


Spesifikasi:	LPJG28851AFNL	No Bagian:	LPJG28851AFNL
Ethernet:	2 x 10/100 / 1000Mbps	Jenis kelamin:	Laki-laki, wadah
Indikator:	Hijau LED Fleksibel	Sampel:	TERSEDIA

Spesifikasi:	LPJG28851AFNL
No Bagian:	LPJG28851AFNL
Ethernet:	2 x 10/100 / 1000Mbps
Jenis kelamin:	Laki-laki, wadah
Indikator:	Hijau LED Fleksibel
Sampel:	TERSEDIA

LPJG28851AFNL LINK-PP 2x RJ45 10/100 / 1000Mbps Tab-up Gigabit Ethernet Jack

LPJG28851AFNL LINK-PP 2x Rj45 10/100 / 1000Mbps Tab-up Gigabit Ethernet Jack

2x Rj45 10/100 / 1000Mbps LPJG28851AFNL
1X2 Tab-up Gigabit Rj-45
Melalui lubang RJ45 modular jack Dual Port
Panjang 25,4 mm RJ45 Magjack Cross JG0-0023NL Pulse / 1840548-1 TRP
LPJG28851AFNL.pdf

Spesifikasi Listrik @ 25 ℃

1.OCL (100KHz, 0.1V, 8mA DC BIAS):
350uH MIN
2.Persiapan kerugian:
1 ～ 100MHz: -1.0dB MAX
3.Kembali Kerugian:
1 ～ 10MHz: -20dB MIN.load 100Ω %% P15Ω
30MHz: -16dB MIN.load 100Ω %% P15Ω
60 ～ 80MHz: -12dB MIN.load 100Ω %% P15Ω
4.Crosstalk:
1 ～ 10MHz: -40dB MIN
30 ～ 60MHz: -35dB MIN
60 ～ 100MHz: -30dB MIN
5. Penolakan Mode Umum:
1 ～ 125MHz: -30dB MIN
125 ～ 500MHz: -20dB MIN
6.HiPot Test: 1500Vrms MIN
7.Operasi Suhu: 0 ℃ KE + 70 ℃.
