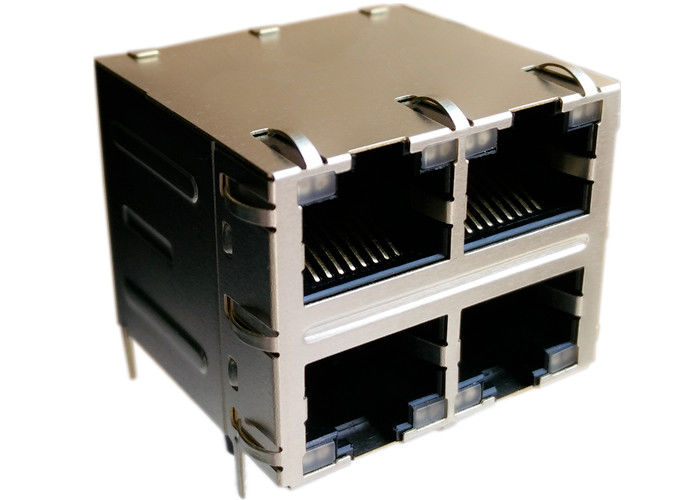

Selama LPJG27011AENL 2x2 Gigabit Ethernet Daya + RJ45 Magnetic Jack IEEE802.3at

Name: Selama LPJG27011AENL 2x2 Gigabit Ethernet Daya + RJ45 Magnetic Jack IEEE802.3at
Brand: LINK-PP
SKU: LPJG27011AENL
Price: 0.11 USD
Availability: InStock
Rating: 4.7 (142 reviews)

Rincian Produk

Tempat asal: Guangdong, Cina

Nama merek: LINK-PP

Sertifikasi: UL,RoHS,Reach,ISO

Nomor model: LPJG27011AENL

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 50/500/1000/60K

Harga: $0.11-$24

Kemasan rincian: BAKI

Waktu pengiriman: persediaan

Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day

Menyediakan kemampuan: 180K/Bulan

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyorot:
                                                                                                                                                                                                                                                Konektor RJ45 ditumpuk, modular Jack rj45


No Bagian:	LPJG27011AENL	Spesifikasi:	LPJG27011AENL
Ethernet:	Daya 4x10 / 100/1000 mbps	pemasangan:	Thru-Hole
Penghentian:	Solder	Sampel:	TERSEDIA

No Bagian:	LPJG27011AENL
Spesifikasi:	LPJG27011AENL
Ethernet:	Daya 4x10 / 100/1000 mbps
pemasangan:	Thru-Hole
Penghentian:	Solder
Sampel:	TERSEDIA

Selama LPJG27011AENL 2x2 Gigabit Ethernet Daya + RJ45 Magnetic Jack IEEE802.3at

LPJG27011AENL 2x2 Gigabit Power Over Ethernet + Rj45 Magnetic Jack IEEE802.3at

4x Rj45 Gigabit Ethernet Magnetik
LPJG27011AENL # LINK-PP Rj45 10/100/1000 Full Power Over Ethernet Plus
R / A Shield Connector POE + Stacked RJ45
6u, 15,30u, 50u Gold Plating
Port Port Rj-45 Port 2x2

1.Turns Ratio (± 2%):

1CT∶1CT
2.Inductance: 350uH Min
@ 0,1 MHz, 0,1 V, 8mA DC Bias
Kerugian 3.Insion:
1-100MHz: -1.0dB Maks
4.Return Loss (dB Min):
1-30MHz: -18 30-60MHz: -16
60-100MHz: -12
5.Crosstalk (dB Typ):
1-30MHz: -40 30-60MHz: -35
60-100MHz: -30
6.Tentang Penolakan Mode (dB Typ):
1-50MHz: -30 50-150MHz: -20
7.Hipot: 1500Vrms
8. Suhu Operasi: -40 ℃ ～ + 85 ℃.
