LPJK2065AONL Rj45 1x 10/100 / 1000Mbps, Power Over Gigabit Ethernet (PoE)

Name: LPJK2065AONL Rj45 1x 10/100 / 1000Mbps, Power Over Gigabit Ethernet (PoE)
Brand: LINK-PP
SKU: LPJK2065AONL
Price: 0.05 USD
Availability: InStock
Rating: 4.8 (131 reviews)

Rincian Produk

Tempat asal: Cina

Nama merek: LINK-PP

Sertifikasi: UL,ROHS,Reach,ISO

Nomor model: LPJK2065AONL

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 50/500/1000/25K

Harga: $0.05-$1.28

Kemasan rincian: 50PCS / Baki, 1200pcs / Carton

Waktu pengiriman: persediaan

Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day

Menyediakan kemampuan: 4200K-PCS / Bulan

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyorot:
                                                                                                                                                                                                                                                modular Jack rj45, konektor RJ45 industri


Spesifikasi:	LPJK2065AONL	No Bagian:	LPJK2065AONL
Ethernet:	1GbE Port POE mendukung	Gilirannya Ratio:	1: 1
pemasangan:	Angle tepat 90 Gelar	Sampel:	TERSEDIA

Spesifikasi:	LPJK2065AONL
No Bagian:	LPJK2065AONL
Ethernet:	1GbE Port POE mendukung
Gilirannya Ratio:	1: 1
pemasangan:	Angle tepat 90 Gelar
Sampel:	TERSEDIA

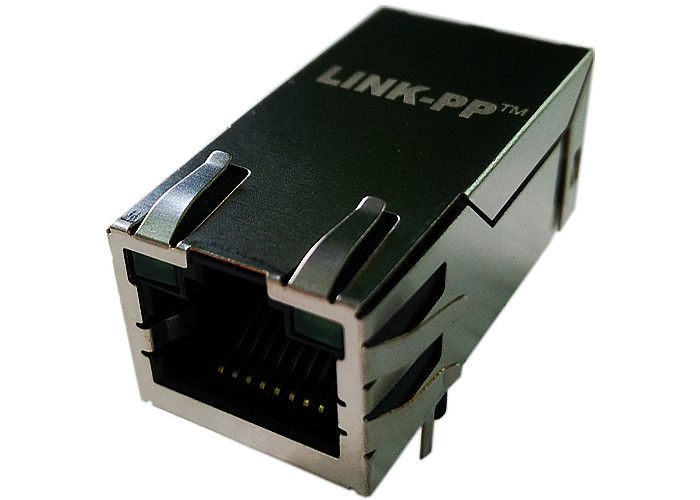

LPJK2065AONL Rj45 1x 10/100 / 1000Mbps, Power Over Gigabit Ethernet (PoE)

LPJK2065AONL 10/100/1000 Mbps Ethernet
Rj45 1x Gigabit Ethernet (10/100/1000)
IEEE 802.3af Power over Ethernet (PoE)

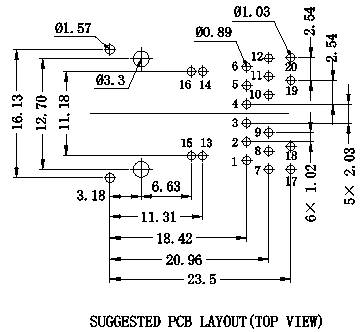

Rj45 Layout PCB Terintegrasi Magnet
Tubuh Panjang Magnetik POE Rj45

Spesifikasi Listrik @ 25 ℃
1.Inductance: 350uH Min
@ 100KHz, 0.1V, 8mA DC BIAS
2.Turns Ratio (± 2%):
TX = 1CT: 1CT RX = 1CT: 1CT
3.Insertion Loss (dB Max):
0.1-1MHz: -1.1 1-65MHz: -0.5
65-100MHz: -0,8 100-125MHz: -1,2
4.Return Loss (dB Min):
0,5-40MHz: -18
40-100MHz: - [12 + 20LOG (f / 80MHz)]
5.Crosstalk:
0,1-100MHz: - [33 + 20LOG (f / 100MHz)] dB Min
6. CM KE CM REJ:
0,1-100MHz: -30dB Min
7. CM UNTUK DM REJ:
0,1-100MHz: -35dB Min
8. Dirancang untuk menangani 600mADC dan memenuhi 802.3at.
9.Hipot: 1500Vrms Min @ 60Hz
10. Suhu Operasi: 0 ℃ ～ 70 ℃.
