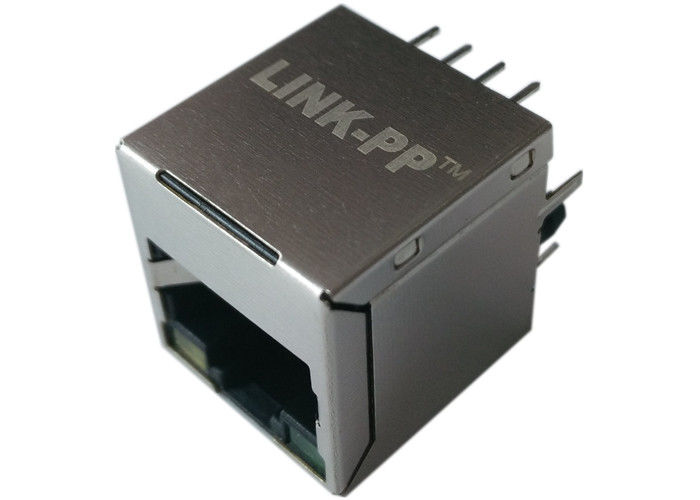

LPJD0514BENL RJ45 Single Port, IEEE 802.3af Power over Ethernet (PoE), 10 / 100M

Name: LPJD0514BENL RJ45 Single Port, IEEE 802.3af Power over Ethernet (PoE), 10 / 100M
Brand: LINK-PP
SKU: LPJD0514BENL
Price: 0.09 USD
Availability: InStock
Rating: 4.9 (190 reviews)

Rincian Produk

Tempat asal: Guangdong, Cina

Nama merek: LINK-PP

Sertifikasi: UL,ROHS,Reach,ISO

Nomor model: LPJD0514BENL

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 50/500/1000/25K

Harga: $0.09-$1.85

Kemasan rincian: 50PCS / Baki, 1200pcs / Carton

Waktu pengiriman: persediaan

Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day

Menyediakan kemampuan: 250000-320000/bulan

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyorot:
                                                                                                                                                                                                                                                Satu Port RJ45, konektor RJ45 smd


Spesifikasi:	LPJD0514BENL	No Bagian:	LPJD0514BENL
Ethernet:	10 / 100Mbps Daya Ethernet	Gilirannya Ratio:	CT: 1 1 CT
pemasangan:	Lurus 180 Gelar	Sampel:	TERSEDIA

Spesifikasi:	LPJD0514BENL
No Bagian:	LPJD0514BENL
Ethernet:	10 / 100Mbps Daya Ethernet
Gilirannya Ratio:	CT: 1 1 CT
pemasangan:	Lurus 180 Gelar
Sampel:	TERSEDIA

LPJD0514BENL RJ45 Single Port, IEEE 802.3af Power over Ethernet (PoE), 10 / 100M

LPJD0514BENL RJ45 Port Tunggal
IEEE 802.3af Power over Ethernet (PoE)
1 x 10/100 Mbit Ethernet
RJ45 Shielded Socket
Entri Teratas Rj45 Jack
Model Industri # LPJD4514BENL
Dirancang untuk menangani 350mA-600mA DC untuk PoE.

Spesifikasi Elektronik @ 25 ℃
1.TURNS RATIO (%% P2%):
TX = 1CT: 1CT RX = 1CT: 1CT
2.Inductance OCL: 350uH MIN
@ 100KHz / 0,1 V, 8mA DC Bias
3.DCR: 1,0 OHMS MAX
4.HIPOT: 1500Vrms MIN
5. RUGI INSERTASI:
-1.2dB MAX @ 1MHz KE 100MHz
6. MENGEMBALIKAN RUGI:
-16dB MIN @ 1MHz KE 30MHz
-14dB MIN @ 40MHz
-13dB MIN @ 50MHz
-12dB MIN @ 60MHz KE 80MHz
7. TIGAS BICARA:
-43dB MIN @ 30MHz
-37dB MIN @ 60MHz
-33dB MIN @ 100MHz
8.COMMON TO COMMON MODE REJECTION:
-30dB MIN @ 1MHz KE 50MHz
-20dB MIN @ 50MHz KE 150MHz
9.HIPOT: 1000VAC / 0.5mA / 60Sec.
10. MENGOPERASIKAN SUHU: 0 ℃ ～ 70 ℃.
