RJ45 Magjack 4Port 1000 Base-T LPJG46801AENL Gigabit Connector Shield R / A

Name: RJ45 Magjack 4Port 1000 Base-T LPJG46801AENL Gigabit Connector Shield R / A
Brand: LINK-PP
SKU: LPJG46801AENL
Price: 0.11 USD
Availability: InStock
Rating: 5 (151 reviews)

Rincian Produk

Tempat asal: Cina

Nama merek: LINK-PP

Sertifikasi: SGS, UL,CE,ISO9001:2008,Reach

Nomor model: LPJG46801AENL

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 50/500/1000/25K

Harga: $0.11-$12

Kemasan rincian: BAKI

Waktu pengiriman: persediaan

Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day

Menyediakan kemampuan: 208K/Bulan

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyorot:
                                                                                                                                                                                                                                                modular Jack rj45, Jack ganda RJ45


Spesifikasi:	LPJG46801AENL	No Bagian:	LPJG46801AENL
Ethernet:	4 x 10/100/1000Mbps	Jenis kelamin:	Laki-laki, wadah
Indikator:	LED Fleksibel	Sampel:	TERSEDIA

Spesifikasi:	LPJG46801AENL
No Bagian:	LPJG46801AENL
Ethernet:	4 x 10/100/1000Mbps
Jenis kelamin:	Laki-laki, wadah
Indikator:	LED Fleksibel
Sampel:	TERSEDIA

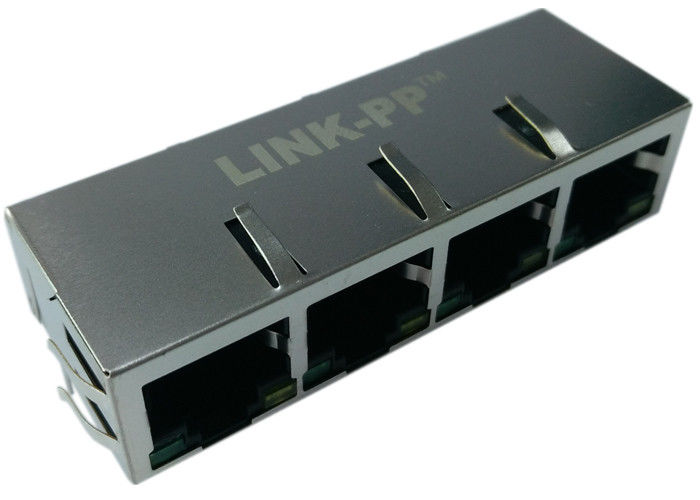

RJ45 Magjack 4Port 1000 Base-T LPJG46801AENL Gigabit Connector Shield R / A

RJ45 Magjack 4Port 1000 Base-T
Ethernet 4x 10/100/1000 Mbps
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab Gigabit Ethernet,
LINK-PP LPJG46801AENL Rj45
Rj45 Dengan Magnetics Transformer

Spesifikasi Listrik @ 25 ℃
1.Turns Ratio (± 5%):

1CT∶1CT
2.OCL: 350uH Min
@ 100KHz, 0.1V, 8mA DC Bias
Kerugian 3.Insion:
1 ～ 100MHz: -1.dB Maks
4.Return Loss (dB Min):
1 ～ 30MHz: -16 30 ～ 40MHz: -13,5
40 ～ 50MHz: -11,5 50 ～ 80MHz: -10
5.Crosstalk (dB Min):
0,3 ～ 30MHz: -40

30 ～ 60MHz: -35
60 ～ 100MHz: -30
6.CMR (dB Min):
1 ～ 30MHz: -35

30 ～ 60MHz: -32
60 ～ 125MHz: -35
7.Hipot: 1500Vrms
8. Suhu Operasi:

0 ℃ ～ 70 ℃ / -40 ℃ ～ + 85 ℃
