Rincian Produk
Tempat asal: Guangdong, Cina
Nama merek: LINK-PP
Sertifikasi: UL,RoHS,Reach,ISO

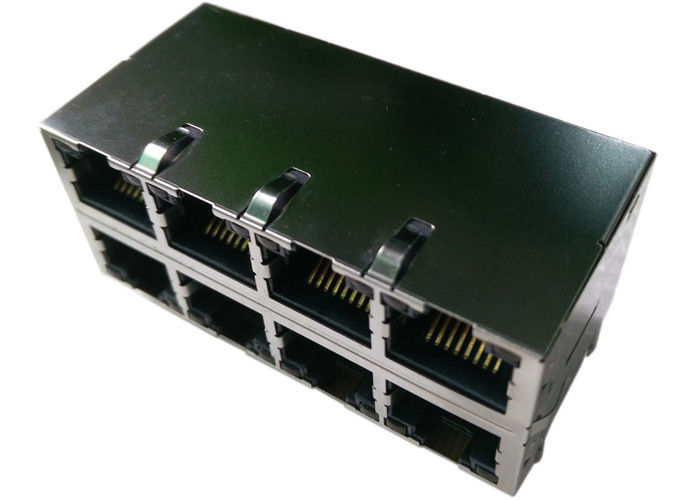

Nomor model: LPJE108XAGNL
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 50/500/1000/60K
Harga: $0.11-$24
Kemasan rincian: BAKI
Waktu pengiriman: persediaan
Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day
Menyediakan kemampuan: 180K/Bulan
No Bagian: |
LPJE108XAGNL |
Spesifikasi: |
LPJE108 Series |
Ethernet: |
Cat5 / 5e |
pemasangan: |
Thru-Hole |
Penghentian: |
Solder |
Sampel: |
TERSEDIA |
No Bagian: |
LPJE108XAGNL |
Spesifikasi: |
LPJE108 Series |
Ethernet: |
Cat5 / 5e |
pemasangan: |
Thru-Hole |
Penghentian: |
Solder |
Sampel: |
TERSEDIA |
| CATATAN: BAHAN: 1. MATERI RUMAH: KACA DITAMBAHKAN POL YESTER UL94V-O. 2.CONTACT MATERIAL: PHISPHOR B RONZE Ø0.46MM. 3.PLATING: PLATING EMAS LEBIH DARI NIKEL. 4.SHIEL: 0.20 KETEBALAN TEMBAGA TEBAL DENGAN BERLAPIS NIKEL. LISTRIK: 1.VOLTAGE RATING: 125 VAC RMS. 2. RATING SAAT INI: 1,5 AMP. 3. KONDISI KONDISI: 30 MILLIOHMS MAX. 4. RESISTEN INSULASI: 500 MEGOHMS MIN @ 500V DC. 5.DIELECTRIC WITHSTANDING RESISTANCE: 1000V AC RMS 50Hz.1MIN MEKANIS: 1. DURRABILITAS: 500 SIKLUS MIN. 2. PCB RETENSI PRA-SOLDER: 1 LB MIN. LINGKUNGAN: 1.STORAGE: -40 ℃ ～ + 85 ℃ 2.OPERASI: -40 ℃ ～ + 85 ℃ |  |
 |
| LPJE108XAGNL | LPJE1083AGNL | LPJE1082AGNL | LPJE1084AGNL |
| LPJE108XCNL | LPJE1083CNL | LPJE1082CNL | LPJE1084CNL |
| LPJE108XNGNL | LPJE1083NGNL | LPJE1082NGNL | LPJE1084NGNL |
| LPJE108XA92NL | LPJE1083A92NL | LPJE1082A92NL | LPJE1084A92NL |
| LPJE108XNHNL | LPJE1083NHNL | LPJE1082NHNL | LPJE1084NHNL |
| LPJE108XA47NL | LPJE1083A47NL | LPJE1082A47NL | LPJE1084A47NL |
| LPJE108XA62NL | LPJE1083A62NL | LPJE1082A62NL | LPJE1084A62NL |
| LPJE108XA82NL | LPJE1083A82NL | LPJE1082A82NL | LPJE1084A82NL |
| LPJE108XAHNL | LPJE1083AHNL | LPJE1082AHNL | LPJE1084AHNL |
| LPJE108XA104NL | LPJE1083A104NL | LPJE1082A104NL | LPJE1084A104NL |
| LPJE108XASNL | LPJE1083ASNL | LPJE1082ASNL | LPJE1084ASNL |
