Rincian Produk
Tempat asal: Guangdong, Cina
Nama merek: LINK-PP
Sertifikasi: UL,ROHS,Reach,ISO
Nomor model: P02-102-11A9
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 50/500/1000/25K
Harga: $0.09-$1.85
Kemasan rincian: 50PCS / Baki, 1200pcs / Carton
Waktu pengiriman: persediaan
Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day
Menyediakan kemampuan: 250000-320000/bulan
PN: |
P02-102-11A9 |
Halo PN: |
P02-102-11A9 |
Buatan China: |
LINK-PP LPJ0025DNL |
Aplikasi: |
10 / 100Mbps, AutoMDIX |
Keluarga: |
Magnetics Rj45 jack |
Orientasi: |
Sudut 90 ° (kanan) |
Warna LED: |
Hijau kuning |
Pemasangan: |
Melalui lubang |
PN: |
P02-102-11A9 |
Halo PN: |
P02-102-11A9 |
Buatan China: |
LINK-PP LPJ0025DNL |
Aplikasi: |
10 / 100Mbps, AutoMDIX |
Keluarga: |
Magnetics Rj45 jack |
Orientasi: |
Sudut 90 ° (kanan) |
Warna LED: |
Hijau kuning |
Pemasangan: |
Melalui lubang |
P02-102-11A9 = LPJ0025DNL | ||||||||||||||||||||||||||||||||
| Nomor Bagian Pedagang | P02-102-11A9 Halo |
| ||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pabrikan | Lingkaran cahaya | |||||||||||||||||||||||||||||||
| Produsen PN | P02-102-11A9 | |||||||||||||||||||||||||||||||
| Deskripsi | 10 / 100Base-T Magjack Rj45 | |||||||||||||||||||||||||||||||
| Status Bebas Timbal / Status RoHS | Bebas timah / Sesuai RoHS | |||||||||||||||||||||||||||||||
| LINK-PP China Factory Cross | LPJ0025DNLBuatan China | |||||||||||||||||||||||||||||||
| LPJ0025DNL Kuantitas Tersedia | 2.000 PCS | |||||||||||||||||||||||||||||||
LINK-PP Buatan China, Daftar Produksi Massal Pabrik:
| P02-102-11A9 | 74990112121 | 13F-64YGD2PLNW2NL | P02-102-11A9 |
| 99751813-01 | 74990112121 | XFATM2GA-CLGY1-2MS | XFATM6CB-CLYG1-4MS |
| JX0011D21BNL | J00-0045NL | MTJ-88TX1-FSZ-PG-D1LH-M7 | MIC24013-5104T-LF3 |
| RJLD260TC1 | SI-60118-F | HFJ11-E2450E-L12RL | 74990112121 |
| RJLD-260TC1 | J1B1211CFD | XFATM2E-Clxu1-4MS | HFJ11-1G02E-L12V3RL |
| 213A-11XAX-R | RJC-248TC1 | MIC24013-5104T-LF3 | MIC66011-5171T-LF3 |
| JXR0-0015NL | RJLBC-060TC1 | HFJ11-1G02E-L12V3RL | XFO656P-CLxu1-4MS |
| 13F-64HND2NL | HY911105AE | P02-102-11A9 | 24F-2011EGYD2SNWXNL |
| HFJ11-E2450E-RL | 2-1840450-8 | HFJ11-E2450E-L11RL | P02-102-11A9 |
| SJTAB-40LB02-L | RJLB-001TC1 | 13F-64GYDPNS2NL | XFAMT6SA-CLGY1-4MS |
| 3070-110204 | J00-0045NL | HFJ11-1G02E-L12V3RL | LPJ0025DNL |
| 74990112121 | P02-102-11A9 | MIC24013-5104T-LF3 | HFJ11-1G02E-L12V3RL |
P02-102-11A9 SPESFIKASI LISTRIK: @ 25 ℃
SPESFIKASI LISTRIK @ 25 ℃
1. Rasio Putaran (%% P2%):
1CT: 1CT
2. Induktansi OCL: 350uH MIN
@ 100KHz / 0.1V, 8mA DC Bias
3. Rugi Insersi:
-1.1dB MAKS @ 0.1-100MHz
4. Rugi Kembali:
-18dB MIN @ 1-40MHz
-14.5dB MIN @ 60MHz
-12dB MIN @ 80MHz
-10dB MIN @ 100MHz
5. Bicara silang:
-40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
6. Penolakan Mode Umum:
-40dB TYP @ 0,1-100MHz
7. Tes Hipot: 1500Vrms
8. Suhu Operasi: 0 ℃ TO 70 ℃. / -40 ℃ TO + 85 ℃

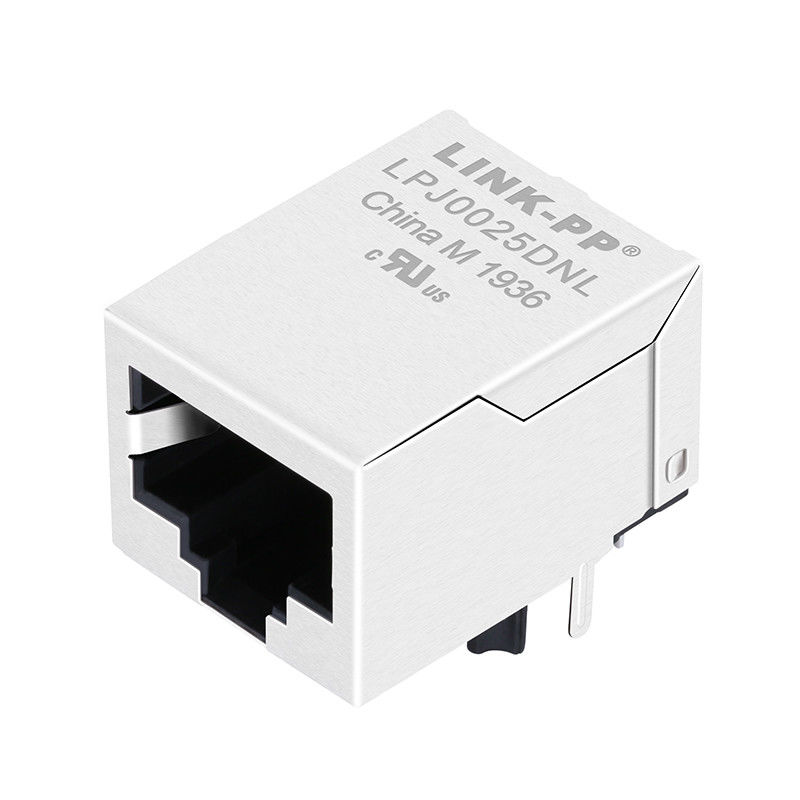

Stech P02-102-11A9 RJ45 Port Tunggal 10 / 100Base-TX Modular Jacks Tanpa LED
