Rincian Produk
Tempat asal: Guangdong, Cina
Nama merek: LINK-PP
Sertifikasi: UL,ROHS,Reach,ISO
Nomor model: HY911105C
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 50/500/1000/25K
Harga: $0.09-$1.85
Kemasan rincian: 50PCS / Baki, 1200pcs / Carton
Waktu pengiriman: persediaan
Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day
Menyediakan kemampuan: 250000-320000/bulan
PN: |
HY911105C |
Hanrun PN: |
HY911105C |
BUATAN CHINA: |

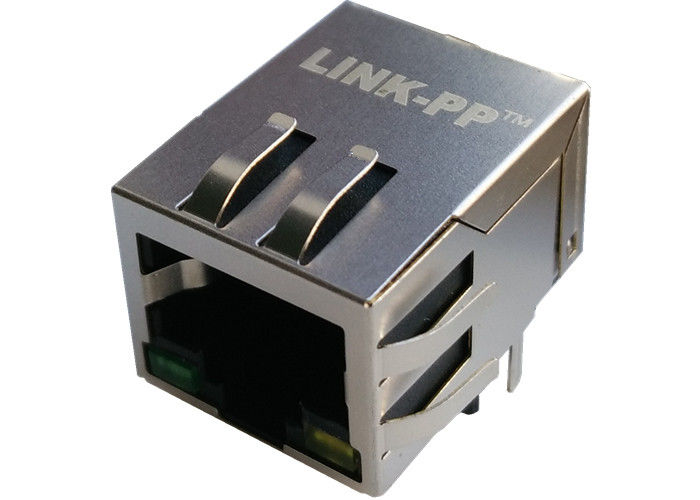

LINK-PP LPJ0011EBNL |
Aplikasi: |
10 / 100Base-TX, AutoMDIX |
Keluarga: |
RJ45 Port tunggal |
Orientasi: |
90 ° Angle (Kanan) |
LED warna: |
Hijau - Kuning |
pemasangan: |
Thru_hole |
PN: |
HY911105C |
Hanrun PN: |
HY911105C |
BUATAN CHINA: |
LINK-PP LPJ0011EBNL |
Aplikasi: |
10 / 100Base-TX, AutoMDIX |
Keluarga: |
RJ45 Port tunggal |
Orientasi: |
90 ° Angle (Kanan) |
LED warna: |
Hijau - Kuning |
pemasangan: |
Thru_hole |
HY911105C = LPJ0011EBNL | ||||||||||||||||||||||||||||||||
| Nomor Bagian Pedagang | Halo HY911105C |
| ||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pabrikan | Hanrun | |||||||||||||||||||||||||||||||
| Produsen PN | HY911105C | |||||||||||||||||||||||||||||||
| Deskripsi | 10 / 100Mbps Tunggal Pelabuhan Rj45 | |||||||||||||||||||||||||||||||
| Status Gratis Memimpin / Status RoHS | Bebas timbal / RoHS Compliant | |||||||||||||||||||||||||||||||
| LINK-PP China Factory Cross | LPJ0011EBNL Buatan China | |||||||||||||||||||||||||||||||
| Kuantitas LPJ0011EBNL Tersedia | 50.000 PCS | |||||||||||||||||||||||||||||||
LINK-PP Made In China, Daftar Produksi Massal Pabrik:
| HY911105C | 74990112121 | 13F-64YGD2PLNW2NL | HFJ11-1G02E-L12V3RL |
| 99751813-01 | 74990112121 | XFATM2GA-CLGY1-2MS | XFATM6CB-CLYG1-4MS |
| JX0011D21BNL | J00-0045NL | MTJ-88TX1-FSZ-PG-D1LH-M7 | MIC24013-5104T-LF3 |
| RJLD260TC1 | HY911105C | HFJ11-E2450E-L12RL | HY911105C |
| RJLD-260TC1 | J1B1211CFD | XFATM2E-Clxu1-4MS | HFJ11-1G02E-L12V3RL |
| HY911105C | RJC-248TC1 | MIC24013-5104T-LF3 | MIC66011-5171T-LF3 |
| JXR0-0015NL | RJLBC-060TC1 | HFJ11-1G02E-L12V3RL | XFO656P-CLxu1-4MS |
| 13F-64HND2NL | HY911105AE | HY911105C | 24F-2011EGYD2SNWXNL |
| HFJ11-E2450E-RL | 2-1840450-8 | HFJ11-E2450E-L11RL | 5-6605443-1 |
| SJTAB-40LB02-L | RJLB-001TC1 | 13F-64GYDPNS2NL | XFAMT6SA-CLGY1-4MS |
| HY911105C | J00-0045NL | HFJ11-1G02E-L12V3RL | 24G-66JGYDPLZ2NL |
| 74990112121 | 74990112121 | HY911105C | HFJ11-1G02E-L12V3RL |
SPESIFIKASI LISTRIK HY911105C: @ 25 ℃
SPESIFIKASI LISTRIK @ 25 ℃
1.Turn Ratio (%% P2%):
1CT: 1CT
2.Inductance OCL: 350uH MIN
@ 100KHz / 0,1 V, 8mA DC Bias
Kerugian 3.Insion:
-1.1dB MAX @ 0.1-100MHz
4.Return Loss:
-18dB MIN @ 1-40MHz
-14.5dB MIN @ 60MHz
-12dB MIN @ 80MHz
-10dB MIN @ 100MHz
5.Cross talk:
-40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
6. Penolakan Mode Umum:
-40dB TYP @ 0,1-100MHz
7.Hipot Test: 1500Vrms
Suhu 8.Operating: 0 ℃ UNTUK 70 ℃. / -40 ℃ TO + 85 ℃
