Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| PN.1: | S558-5999-AR-F | Keluarga: | Transformator Pulsa |
|---|---|---|---|
| Rasio berubah: | 1CT : Pemancar 1CT, Penerima 1CT : 1CT | Ukuran / Dimensi: | 17.7mm L x 15.8mm W |

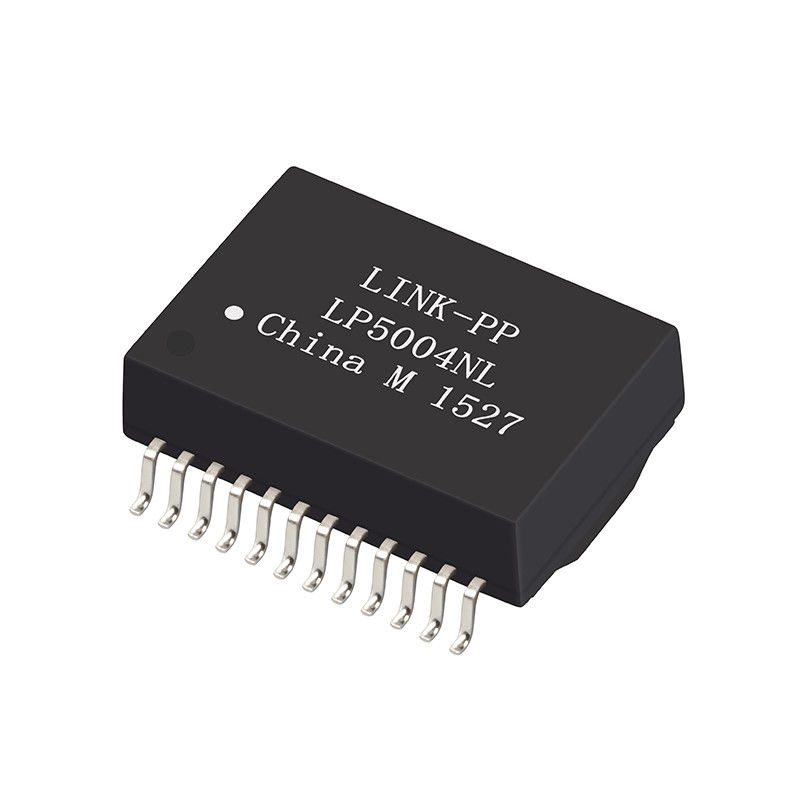

| Hipot: | 1500V | Produksi massal: | LP5004NL |
| Archivi Disponibili: | PDF / 3D / ISG / Stp / Langkah / Lembar Data | ||
| Menyorot: | Gigabit Magnetics Transformer,Transformator Ethernet |
||
S558-5999-AR-F Bel Fuse | Datasheet / Harga Spesifikasi / 3D | Gigabit Transformator | Lintas LP5004NL |
Spesifikasi Listrik @ 25 ° C
1CT: Transmitter 1CT, 1CT: Penerima 1CT
Surface Mount XFRMR MOD LAN GIGABIT EXTEMP 24P
Bebas timah / RoHS Compliant S558-5999-AR-F 1000Base-T
Induktansi OCL: 350uH Min @ 100KHz 0.2V 8mA DC BIAS,
Kemampuan arus 350mA
Induktansi Kebocoran: 0,50uH Max @ 100KHz 0.2V
Interwinding Capacitance: 25PF TYP @ 100KHz 0.2V
Ketahanan DC: 0.9Ω Max
Turn Ratio: 1CT: 1CT ± 5%
Polaritas: 2-23,5-20, 8-17,11-14In-Fase
Return Loss 0,5-30 MHz - 18dB Min
40.0MHz - 14,4 dB Min
50.0MHz - 13,1 dB Min
60-80MHz - 12,0 dB Min
Cross Talk: 0,50-60MHz - 40dB Min
60-100MHz -35dB Min
Penolakan Mode Umum: 0,5-100MHz - 20dB Min
Isolasi HI-POT: 1500VAC 1mA 1S
Jenis Produk: Produk Hijau & Produk Gratis Halogen
Suhu Operasional: -40 ℃ SAMPAI ＋ 85 ℃
| S558-5999-AR-F Gigabit Transformer, LP5004NL Lan 1000Base-T Xfrmr 24Pins SMT | |||
|---|---|---|---|
| S558-5999-AR-F | HN2436G | 749020020A | S558-5999-AR-F |
| G2401CG | 7490101120 | G2401CG | HX2326FNL |
| 0826-1X4T-43-F | 0810-2H6R-28-F | 0811-2X4R-28-F | HN2436G |
| HX2326NL | 749020023 | S558-5999-AR-F | 749020023 |
| HN2436G | HN2436G | S560-6600-GG | S553-6500-43 |
| 749020020A | 7490101120 | LP82440ANL | S553-6500-44 |
| HX1225FNL | S553-6500-E2 | S560-6600-GK | 13F-2010CNL |
| G4802CG | S558-5999-AR-F | 749020023 | S553-6500-55 |
| HN2436G | S553-6500-E4 | S560-6600-GV | S553-6500-58 |
| LP82440ANL | G2401CG | 7490101120 | 749020020A |
CATATAN:
1.Dirancang untuk mendukung aplikasi, seperti SOHO (ADSL
modem), LAN-on-Motherboard (LOM), hub dan Switch.
2. Dengan berbagai Turns Rasio.
3,350uH menit OCL dengan bias 8mA saat ini.
4.RoHS "NL" puncak rating solder 255 ± 5 ℃.
