Rincian Produk
Tempat asal: Cina
Nama merek: LINK-PP
Sertifikasi: UL,ROHS,Reach,ISO
Nomor model: RJMG163007101NR
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 50/500/1000/25K
Harga: $0.05-$1.28
Kemasan rincian: 50PCS / Baki, 1200pcs / Carton
Waktu pengiriman: persediaan
Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day
Menyediakan kemampuan: 4200K-PCS / Bulan
Nomor bagian: |
RJMG163007101NR |
Produksi massal: |
SM-LPJ2030CNL |
Munafactuer asli: |
LINK-PP |
Ethernet: |
10 / 100Mbps Antarmuka |
Keluarga: |
konektor modular rj45 |
Sampel: |
Tersedia gratis |
Nomor bagian: |
RJMG163007101NR |
Produksi massal: |
SM-LPJ2030CNL |
Munafactuer asli: |
LINK-PP |
Ethernet: |
10 / 100Mbps Antarmuka |
Keluarga: |
konektor modular rj45 |
Sampel: |
Tersedia gratis |

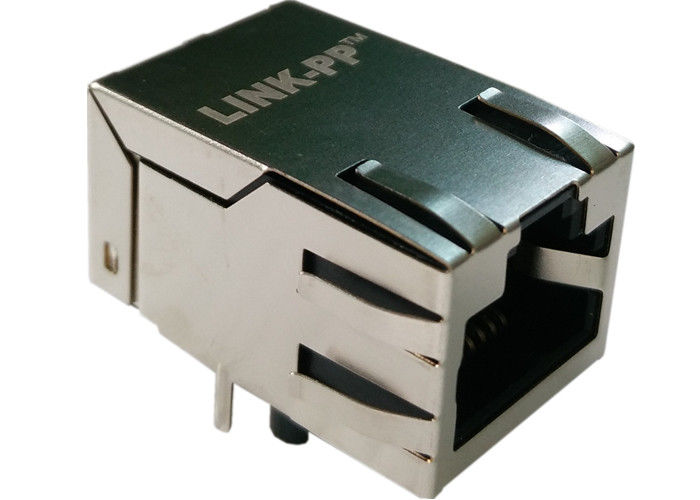

| RJMG163007101NR | Konektor Modular Rj45 | 10/100 Base-T | RJ45 Modular Jack |
SPESIFIKASI LISTRIK: @ 25 ℃
RJMG163008101NR Harga / PDF / Spesifikasi / Salib.
1.TR:(100KHZ,100mV);
TX = 1CT: 1CT ± 3% RX = 1CT: 1CT ± 3% P2.LX: (100KHZ, 100mV, 8mA, DC Bias)
PIN: (P1, P3), (P4, P6) = 350uH MIN
3.HIPOT:
PINS (P1, P2, P3) TO (J1, J2) = 1500V
PIN (P4, P5, P6) TO (J3, J6) = 1500V
4. KERUGIAN INSERTION:
-1.0dB MAX @ 1.0MHz KE 65MHz
5. KEMBALIKAN RUGI:
-20dB MIN @ 1MHz KE 10MHz
-16dB MIN @ 10MHz KE 30MHz
-12dB MIN @ 30MHz KE 60MHz
-10dB MIN @ 60MHz KE 100MHz
6.CROSS TALK:
-40dB MIN @ 1MHz KE 30MHz
-35dB MIN @ 30MHz KE 60MHz
-30dB MIN @ 60MHz KE 100MHz
7.COMMON TO COMMON MODE REJECTION:
-30dB MIN @ 1MHz KE 50MHz
-20dB MIN @ 50MHz KE 150MHz
8. Rentang Suhu Operasi: 0 ℃ UNTUK 70 ℃ / -40 ℃ Ke 85 ℃
CATATAN:
1.Dirancang untuk mendukung aplikasi, seperti SOHO (ADSL
modem), LAN-on-Motherboard (LOM), hub dan Switch.
2.Memenuhi spesifikasi IEEE 802.3
3. Bahan Bahan:
Perumahan: Termoplastik UL94V-0
Kontak / Perisai: Paduan tembaga
Perisai plating: Nikel
Kontak plating: Emas 6 inci mikro. Di area kontak.
4.Wave suhu ujung solder: 265 ℃ Max
Suhu ujung solder ujung gelombang: 5 Detik Maks
| RJMG163008101NR RJ45 Modular Jack Rjmag 10/100, Satu Port Tidak Ada Leds | ||
|---|---|---|
