Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Nomor bagian: | ARJ11C-MBSAT-A-B-4MU2 | Grendel: | Tab-Up |
|---|---|---|---|
| Munafactuer asli: | LINK-PP | Ethernet: | 10/100/1000 Gigabit |
| Keluarga: | PCB 10pin RJ45 | Mengetik: | Jack magnetik RJ45 |
| Menyorot: | Konektor RJ45 ditumpuk,jack magnetik RJ45 |
||

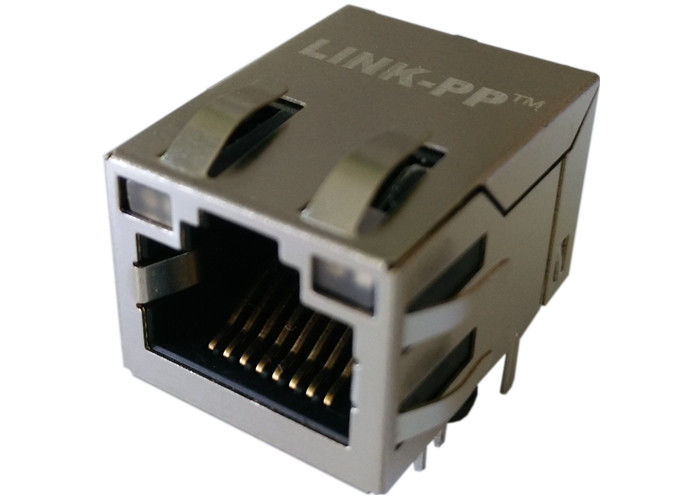

| ARJ11C-MBSAT-AB-4MU2 | Jack RJ45 Magnetik | 10/100/1000 Base-T | Konektor Rj45 Lekukan |
SPESIFIKASI LISTRIK: @ 25 ℃
ARJ11C-MBSAT-AB-4MU2 Harga / PDF / Spesifikasi / Salib.
1.Turns Ratio (± 2%):
TX = 1CT: 1CT RX = 1CT: 1CT
2.Persiapan kerugian:
0.1-0.9MHz: -1.0dB Max 0.9-100MHz: -1.1dB Max
3.Return Loss (dB Min):
0,1-15MHz: -18 15-60MHz: -16 60-80MHz: -15 80-100MHz: -12
4.Crosstalk (dB Min):
0,1-0,9MHz: -43 1-15MHz: -35 15-30MHz: -26 30-100MHz: -24
5.CMR (dB Min):
0,1-30MHz: -46 30-100MHz: -42
6.Isolation Voltage: 1500Vrms
7. Kisaran Suhu Operasi:
0 ℃ UNTUK 70 ℃ / -40 ℃ Ke 85 ℃
CATATAN:
1. Bahan Bahan:
Perumahan: Termoplastik UL94V-0
Kontak / Perisai: Paduan tembaga
Perisai plating: Nikel
Kontak plating: Emas 6 inci mikro. Di area kontak.
2. Suhu ujung solder: 265 ℃ Maks
Suhu ujung solder ujung gelombang: 5 Detik Maks
3.Dirancang untuk mendukung aplikasi, seperti SOHO (ADSL
modem), LAN-on-Motherboard (LOM), hub dan Switch.
4.Mengatur spesifikasi IEEE 802.3
| Gigabit Magnetic Rj45 ARJ11C-MBSAT-AB-4MU2 Modular Jack Terlindung Sudut Kanan | ||
|---|---|---|
| ARJ11C-MBSAT-AB-4MU2 | ARJC02-111008B | Jack RJ45 Magnetik |
| ARJ11A-MASL-QU2 | ARJ11B-MASAI-MU2 | ARJ11C-MCSAT- AB-xMU2 |
| ARJ11A-MASM-RT2 | ARJ11C-MBSAT-AB-3MU2 | ARJ11C-MASAA- BA-xLU2 |
| ARJ11A-MDSN-MU2 | ARJ11C-MBSAT-AB-4MU2 | ARJ11C-MASAB- BA-xMU2 |
| ARJ11B-MASAI-MU2 | ARJ11C-MBSAS-A-BA-7MU2 | ARJ11C-MASAD- AA-xMU2 |
| ARJ11B-MASAA-MU2 | ARJ11B-MASAM-MU2 | ARJ11B-MASAI-MU2 |
| ARJ11B-MASAI-MU2 | ARJ11B-MASAI-MU2 | ARJ11D-MASB-BA-XMU2 |
| ARJ11B-MASAJ-MU2 | ARJ11B-MASAA-MU2 | ARJ11C-MBSAT-AB-4MU2 |
| ARJ11B-MASAM-MU2 | ARJ11B-MASAI-MU2 | ARJ11D-MDSD-AB-XLT2 |
| ARJ11B-MASAN-LU2 | ARJ11C-MBSAT-AB-4MU2 | ARJ11C-MBSAS-A-BA-7MU2 |
| ARJ11B-MASAJ-MU2 | ARJ11B-MASAA-MU2 | ARJ11D-MDSE-AB-XMU2 |
| ARJ11B-MESCB-AB-ELT2 | ARJ11C-MBSAT-AB-4MU2 | ARJ11D-MASE-AB-XMU2 |
| ARJ11C-MBSAT-AB-4MU2 | ARJP11A-MASA-BA-EMU2 | ARJ11B-MASAA-MU2 |
| ARJ11B-MBSCB-AB-ELT2 | ARJ11C-MBSAT-AB-3MU2 | ARJ11D-MASG-BA-XMU2 |
| ARJ11C-MBSAS-A-BA-7MU2 | ARJP11A-MBSB-AB-EMU2 | ARJ11D-MASG-AA-XMU2 |
| ARJ11B-MESBQ-AB-EMU2 | ARJ11C-MBSAS-A-BA-7MU2 | ARJ11B-MASAJ-MU2 |
| ARJ11B-MASBQ-MU2 | ARJP11B-MASA-BA-EMU2 | ARJ11D-MDSH-AB-XLU2 |
| ARJ11B-MBSBQ-AB-EMU2 | ARJP11B-MBSB-AB-EMU2 | ARJ11C-MBSAT-AB-4MU2 |
| ARJ11B-MFSBQ-AA-EMU2 | ARJP11C-MASA-AB-EMU2 | ARJ11D-MBSJ-A-DA-HLT2 |
| ARJ11B-MASAM-MU2 | ARJP11C-MASB-AB-A-FMU2 | ARJ11D-MBSK-A-DA-HMU2 |
| ARJ11C-MBSAT-AB-3MU2 | ARJ11B-MASAJ-MU2 | ARJ11D-MBSL-A-DA-HLU2 |
Gigabit Magnetic Rj45 ARJ11C-MBSAT-AB-4MU2 Modular Jack Terlindung Sudut Kanan
ARJ11C-MBSAT-AB-4MU2 Gigabit Magnetic Rj45
