Rincian Produk
Tempat asal: Cina
Nama merek: LINK-PP
Sertifikasi: UL,ROHS,Reach,ISO
Nomor model: Arje-0027
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 50/500/1000
Harga: Supportive
Kemasan rincian: 50PCS / Baki, 1200pcs / Carton
Waktu pengiriman: persediaan
Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day
Menyediakan kemampuan: 4600K. PCS/bulan
Nomor bagian: |
Arje-0027 |
Produksi massal: |
LPJXXXXNL |
Munafactuer asli: |
LINK-PP |
Aplikasi: |
10/100/1000Base-T |
Penghentian: |
Solder |
Mengetik: |
DIP / Side Masuk |
Nomor bagian: |
Arje-0027 |
Produksi massal: |
LPJXXXXNL |
Munafactuer asli: |
LINK-PP |
Aplikasi: |
10/100/1000Base-T |
Penghentian: |
Solder |
Mengetik: |
DIP / Side Masuk |

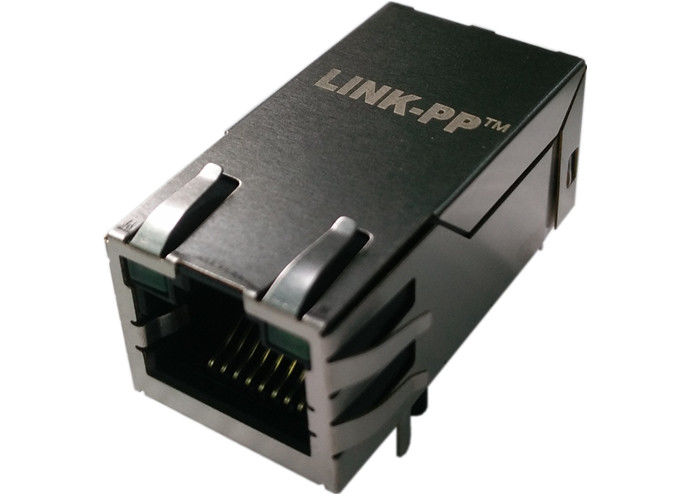

| ARJE-0027 | RJ45 Single Port | 10/100 / 1000Base-T | Gigabit RJ45 Dengan LED |
• Compliant dengan standar IEEE802.3ab
• OCR minimum 350uH dengan arus bias 8mA
• Kinerja tinggi untuk penekanan EMI maksimum
• Keandalan tinggi - 750 siklus kawin / unmating
• Dirancang untuk perangkat transceiver Gigabit Ethernet Marvell 88E1119R
• Mendukung 10/100/1000 Base-Tapplications
• Menyediakan pengkondisian sinyal, penekanan EMI dan isolasi sinyal
SPESIFIKASI LISTRIK: @ 25 ℃
1.Inductance: 350uH Min
@ 100KHz, 0.1V, 8mA DC BIAS
2.Turns Ratio (± 2%):
TX = 1CT: 1 RX = 1CT: 1
Kerugian 3.Insion:
1-100MHz: -1.0dB Maks
4.Return Loss (memuat 100Ω):
1-30MHz: -18dB Min
30-60MHz: -16dB Min
60-80MHz: -12dB Min
80-100MHz: -10dB Min
5.Crosstalk:
1-100MHz: -30dB Min
6. Penolakan Mode Umum:
1-100MHz: -30dB Min
7.HI-POT: 1500Vrms Min @ 60Hz
8. Rentang Suhu Operasi: 0 ℃ UNTUK 70 ℃ / -40 ℃ Ke 85 ℃
