Rincian Produk
Tempat asal: Guangdong, Cina
Nama merek: LINK-PP
Sertifikasi: UL,RoHS,Reach,ISO
Nomor model: XF68066B
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 400/2000/10K/25K
Harga: $0.06-$3.2
Kemasan rincian: T&R
Waktu pengiriman: persediaan
Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day
Menyediakan kemampuan: 3KK/Bulan
Spesifikasi: |
XF68066B |
Mengetik: |

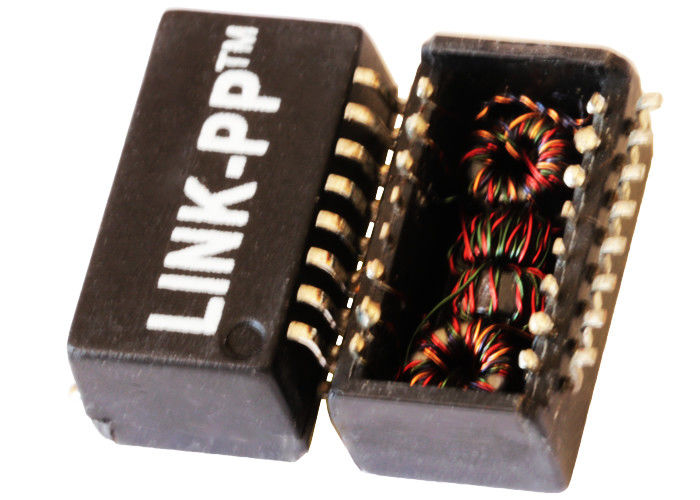

Ethernet RJ45 Transformer |
Gilirannya Ratio: |
1: 1 |
Aplikasi: |
Lan Ethernet (NoN PoE) |
Jenis mounting: |
SMT |
LINK-PP P / N: |
LP21646ANL |
Suhu: |
-40 ℃ untuk + 85 ℃ |
Archivi Disponibil: |
PDF / 3D / ISG / Stp / Langkah / Datasheet |
Spesifikasi: |
XF68066B |
Mengetik: |
Ethernet RJ45 Transformer |
Gilirannya Ratio: |
1: 1 |
Aplikasi: |
Lan Ethernet (NoN PoE) |
Jenis mounting: |
SMT |
LINK-PP P / N: |
LP21646ANL |
Suhu: |
-40 ℃ untuk + 85 ℃ |
Archivi Disponibil: |
PDF / 3D / ISG / Stp / Langkah / Datasheet |
| XF68066B | TLA-6T214ALF-T | 13F-33ANL | PN massal. LP41606NL |
Spesifikasi Listrik @ 25 ℃
1.Menolak Rasio
(1-3) :( 16-14) = 1CT: 1CT
(6-8) :( 11-9) = 1CT: 1.414CT
2.OCL:
Pin 1-3 160uH Minimum @ 100KHz 50mV
Pin 6-8 120uH Minimum @ 100KHz 50mV
Kerugian 3.Insion:
1-10MHz: -1.5dB MAX
4.Atenuasi:
TX: 20MHz: -7dB MIN
25MHz: -19dB MIN
30MHz: -32dB MIN
40MHz: -35dB MIN
RX: 20MHz: -6dB MIN
25MHz: -14dB MIN
30MHz: -20dB MIN
40MHz: -31dB MIN
5.Return Loss:
5-10MHz: -15dB MIN
6.Crosstalk:
1-10MHz: -30dB MIN
7. Penolakan mode umum:
30-100MHz: -30dB MIN
8.Hipot: 1500VAC
9. Suhu Operasi: -40 ℃ ～ + 85 ℃.
CATATAN:
1. Untuk aplikasi Adaptor Kartu, Maus, Hub, dan Motherboard
2. Dirancang untuk memenuhi atau melampaui IEEE802.3, 10 Base-T spesifikasi
3. Tersedia Dengan Common Mode Chokes untuk EMI Suppression
4.Untuk bagian RoHS tambahkan akhiran NL
5.RoHS "NL" puncak solder rating 245 ℃.
| XF68066B 10 BASE-TX Transformers Modul LP21646ANL Low Pass Filter | |||
|---|---|---|---|
| XF68066B | TLA-6T214ALF | TG110-S460NXRL | TD37-1205ALF |
| TG74-4406NCRL | TG42-1505NZRL | TG110-S465NXRL | TD38-1505ALF |
| TG75-4406NCRL | XF68066B | TG110-S422NXRL | XF68066B |
| TG92-4006NCRL | TG63-S002NZRL | TG110-S423NXRL | TD71-1205ALF |
| TD01-1006L1RL | TG73-1505NZRL | LP41606NL | LP41606NL |
| TG01-1006N2RL | TG74-1505NZRL | TG110-S453NXRL | TG02-1205NSRL |
| TD54-1006L1RL | XF68066B | TLA-6T214ALF | TG04-1205NSRL |
| XF68066B | TG91-1505NZRL | TG110-S463NXRL | TLA-6T214ALF-T |
| TD55-1406L1RL | TG05-1205NXRL | TG110-RP04NV6RL | TG10-1205NSRL |
| TG55-1406N2RL | TG28-1205NXRL | TG110-RP16NV6RL | TG15-1205NSRL |
| TD83-2006L1RL | TLA-6T214ALF | TG111-RPE41NV6RL | TG23-1505NSRL |
| TLA-6T214ALF | TG39-1205NXRL | XF68066B | TG37-1205NSRL |
| TG44-1406NXRL | TGSP-S024NXRL | TG1G-RPE33NV6LF | TG38-1205NSRL |
| XF68066B | TG23-1505NXRL | TG111-HP3NV6LF | TG42-1205NSRL |
| TG46-1406NXRL | TLA-6T214ALF-T | TG110-RPE17NV6RL | TLA-6T214ALF-T |
| TG57-1006NXRL | TG29-1505NXRL | TG110-RP08NVRL | TG71-1205NSRL |
| TG58-1006NXRL | TG34-1505NXRL | TG110-RP13NVRL | TG08-1205N1L |
