Rincian Produk
Tempat asal: Guangdong, Cina
Nama merek: LINK-PP
Sertifikasi: UL,RoHS,Reach,ISO
Nomor model: 20PT1024X LF / 13F-2010CNL
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 400/2000/10K/25K
Harga: $0.06-$3.2
Kemasan rincian: T&R
Waktu pengiriman: persediaan
Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day
Menyediakan kemampuan: 3KK/Bulan
PN.1: |
20PT1024X LF / 13F-2010CNL |
Aplikasi: |
FE Transformer |
Gilirannya Ratio: |
1: 1 |
pin: |
40 |
HiPot: |
1500V |
Produksi massal: |

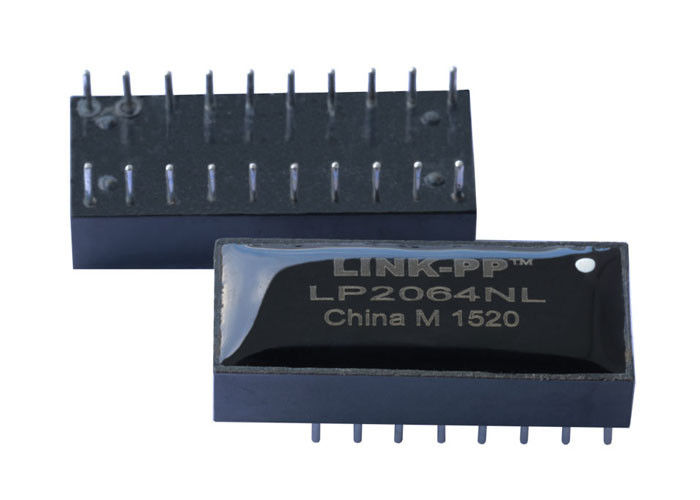

LP2064NL |
PN.1: |
20PT1024X LF / 13F-2010CNL |
Aplikasi: |
FE Transformer |
Gilirannya Ratio: |
1: 1 |
pin: |
40 |
HiPot: |
1500V |
Produksi massal: |
LP2064NL |
| 20PT1024X LF | 13F-2010CNL | 10/100 Transformer | 1: 1 Ubah Rasio | Cross LP2064NL |
Spesifikasi Listrik @ 25 ° C
1. Mengembalikan Rasio:
TX = 1CT∶1CT RX = 1CT∶1CT
2.Pri OCL: 350uH MIN
@ 100KHz, 0.1V, 8mADC Bias.
Kerugian 3.Insion:
1-100MHz: -1.15dB MAX
4.Return Loss (dB MIN):
1-30MHz: -18 30-60MHz: -14
60-80MHz: -12
5.Crosstalk:
1-100MHz: -38dB MIN
6. CMRR: 1-100MHz: -40dB TYP
7.Hi-Pot: 1500Vrms @ 0.5mA
8. Suhu Operasi: 0 ℃ ～ 70 ℃
| 20PT1024X LF 10 / 100Base Dual Port Transformer 13F-2010CNL PHT 20 pin Filter | |||
|---|---|---|---|
| 0875-1G2T-E3 | C855-2B4R-54 | 08B1-1X4T-36-F | 0879-2C6R-54 |
| 13F-2010CNL | 0833-2X6R-55-F | 0833-2X1T-33-F | C850-2G6R-54 |
| 0826-1X4T-43-F | 0810-2H6R-28-F | 0811-2X4R-28-F | 0854-2X8R-GK-F |
| L826-1X4T-23-F | 20PT1024X LF | L826-1X4T-43-F | 0895-2X6R-GK |
| 13F-2010CNL | S553-6500-D8 | S560-6600-GG | S553-6500-43 |
| S553-1006-AE | S553-6500-D9 | 20PT1024X LF | S553-6500-44 |
| S553-1084-01 | S553-6500-E2 | S560-6600-GK | 13F-2010CNL |
| S553-1084-11 | S553-6500-E3 | S560-6600-GM | S553-6500-55 |
| S553-1506-AE | S553-6500-E4 | S560-6600-GV | S553-6500-58 |
| 13F-2010CNL | S553-6500-E5 | 20PT1024X LF | 13F-2010CNL |
CATATAN:
1.Untuk kartu adaptor, maus, hub, dan motherboard.aplikasi
2. Dirancang untuk memenuhi atau melampaui spesifikasi IEEE802.3,10Base-T
3. Tersedia dengan modus tersedak umum untuk penekanan EMI
Paket 4.SMT, THT, DIP dll
5.RoHS "NL" puncak solder peringkat 260 ℃.
6.OCL, Cww dan LL diukur pada 20 mVrms, 100KHz
20PT1024X LF 10 / 100Base Dual Port Transformer 13F-2010CNL PHT 20 pin Filter
