Rincian Produk
Tempat asal: Cina
Nama merek: LINK-PP
Sertifikasi: UL,ROHS,Reach,ISO
Nomor model: LJ-640B10-41-F
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 50/500/1000
Harga: Supportive
Kemasan rincian: 50PCS / Baki, 1200pcs / Carton
Waktu pengiriman: persediaan
Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day
Menyediakan kemampuan: 4600K. PCS/bulan
Nomor bagian: |
LJ-640B10-41-F |
Lintas PN: |
LPJG0803GONL |
Tipe Konektor: |
Gigabyte Ethernet |
Aplikasi: |
1000Base-T Lan |
Jenis mounting: |
Melalui lubang |
Orientasi: |
90 ~ sudut (kanan) |
Penghentian: |
Solder |
Perisai: |
Terlindung, EMI jari |
Nomor bagian: |
LJ-640B10-41-F |
Lintas PN: |
LPJG0803GONL |
Tipe Konektor: |
Gigabyte Ethernet |
Aplikasi: |
1000Base-T Lan |
Jenis mounting: |
Melalui lubang |
Orientasi: |
90 ~ sudut (kanan) |
Penghentian: |
Solder |
Perisai: |
Terlindung, EMI jari |

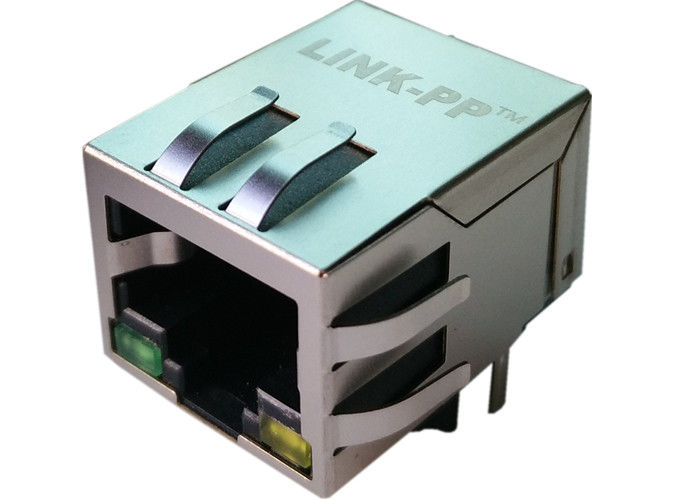

| LJ-640B10-41-F | 10 Pin Rj45 | Gigabit Rj45 Magjack | Konektor 1000Base-T Rj45 |
Spesifikasi Listrik @ 25 ℃
1.Turns Ratio (± 2%):
TX = 1CT: 1CT RX = 1CT: 1CT
2.OCL: 350uH Min
@ 100KHz / 0.1V Dengan 8mA DC Bias
3.Return Loss (dB MIN):
1-30MHz: -18 30-60MHz: -16
60-80MHz: -12 80-100MHz: -10
4.Crosstalk (dB MIN):
1-30MHz: -40 30-60MHz: -35
60-100MHz: -30
5. Penangguhan Kehilangan:
1-100MHz: -1.0dB MAX
6.CMR (dB MIN):
1-50MHz: -40 50-150MHz: -30
7.Hipot: 1500Vrms
8. Suhu Operasi: 0 ℃ ～ + 70 ℃. / -40 ℃ ～ + 85 ℃.
Daftar Silang:
| LJ-640B10-41-F Rj-45 Jack 1000Base-T Magnetics PCIE-G41A2 Gigabit Ethernet Port | |||
|---|---|---|---|
| LJ-H17S1A-B4-F | LJ-H17S4H-08-F | LJ-H17S1A-08-F | LJ-H17S1A-72-F |
| LJ-H17S4A-04-F | LJ-H17S4H-Y4-F | LJ-G40B4E-00-F | LJ-G40A1A-06-F |
| LJ-G40B8E-90 | LJ-H17S4H-CB-F | LJ-G40B4E-06-F | LJ-G40A5E-0A-F |
| LJ-H17S1A-02-F | LJ-H17S4H-CY-F | LJ-G40A4H-03-F | LJ-H17S1A-00-F |
| LJ-H17S1A-12-F | LJ-H17S4H-04-F | LJ-H17S4H-05-F | LJ-G40A5H-00-F |
| LJ-G40B4C-04-F | LJ-H17S4H-C4-F | LJ-G40A1A-02-F | LJ-G40A1D-B1-F |
| LJ-H17S1A-04-F | LJ-G40A4I-01-F | LJ-G40A4R-00-F | LJ-G40A5H-01-F |
| LJ-T17S2C-10 | LJ-H17S4H-U4-F | LJ-G40A8E-01-F | LJ-H17S1A-21-F |
| LJ-H17S1A-06-F | LJ-H17S4H-97-F | LJ-H17S1A-07-F | LJ-G40A5E-00-F |
| LJ-H17S4H-9A-F | LJ-H17S4H-Y5-F | LJ-G40A4E-00-F | LJ-G40A1D-41-F |
| LJ-T17S2D-10 | LJ-G40A1A-05-F | LJ-G40B4E-0A-F | LJ-G40A1B-06-F |
| LJ-H17S1A-03-F | LJ-G40A1B-04-F | LJ-G40A1A-00-F | LJ-G40A1B-00-F |
| LJ-H17S4E-00-F | LJ-G40A4H-06-F | LJ-G40B4H-Y0-F | LJ-G40B8B-00 |
| LJ-H17S4E-02-F | LJ-P17S1Z-66-F | LJ-P17S1C-00-F | LJ-G40B8B-90 |
| LJ-H17S4B-00-F | LJ-P17S1Z-67-F | LJ-G40B4H-06-F | LJ-G40A1D-21-F |
| LJ-H17S4H-06-F | LJ-G40A4Z-Y2-F | LJ-G40B4H-00-F | LJ-G40A1D-11-F |
| LJ-H17S4H-A5-F | LJ-G40A1D-45-F | LJ-G40A4H-00-F | LJ-H17S1A-66-F |
| LJ-G40B4E-03-F | LJ-H17S1A-4U-F | LJ-G40A8H-00-F | LJ-G40A1E-00-F |
| LJ-G40A1A-01-F | LJ-G40A1B-09-F | LJ-G40A8E-00-F | LJ-G40A4H-Y1-F |
| LJ-H17S4H-02-F | LJ-H17S1A-05-F | LJ-H17S1A-01-F | LJ-G40A4H-01-F |
| LJ-H17S4H-B5-F | LJ-G40A1C-Y2-F | LJ-G40A1A-08-F | LJ-G40A5E-01-F |
| LJ-H17S4H-Y7-F | LJ-G40A1C-00-F | LJ-H17S1A-98-F | LJ-H17E1C-96-F |
CATATAN:
1.Dirancang untuk mendukung aplikasi, seperti SOHO (modem ADSL), LAN-on-Motherboard (LOM), hub dan Switch. Terutama di PCIE-G41A2 Board.
2.Memenuhi spesifikasi IEEE 802.3
3. Bahan Bahan:
Perumahan: Termoplastik UL94V-0
Kontak / Perisai: Paduan tembaga
Perisai plating: Nikel
Kontak plating: Emas 6 inci mikro. Di area kontak.
4.Wave suhu ujung solder: 265 ℃ Max
Suhu ujung solder ujung gelombang: 5 Detik Maks
