Rincian Produk
Tempat asal: Guangdong, Cina
Nama merek: LINK-PP
Sertifikasi: UL,RoHS,Reach,ISO
Nomor model: TG1G-S031NYRL / TG1G-E001NYRL
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 400/2000/10K/25K
Harga: $0.06-$3.2
Kemasan rincian: T&R
Waktu pengiriman: persediaan
Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day
Menyediakan kemampuan: 3KK/Bulan
Item No1: |
TG1G-S032NYRL |
Kategori: |
Gigabit Isolasi Transformer |
Ternyata Ratio: |
1CT: 1CT |
pemasangan: |
Permukaan gunung |
Ukuran / Dimensi: |
13.72mm L x 15.24mm W |
Tinggi - duduk (Max): |
6.35mm |
Old PN: |
TG1G-S032NYRL |
LINK-PP PN: |
LP5008ANL |
Item No1: |
TG1G-S032NYRL |
Kategori: |
Gigabit Isolasi Transformer |
Ternyata Ratio: |
1CT: 1CT |
pemasangan: |
Permukaan gunung |
Ukuran / Dimensi: |
13.72mm L x 15.24mm W |
Tinggi - duduk (Max): |
6.35mm |
Old PN: |
TG1G-S032NYRL |
LINK-PP PN: |
LP5008ANL |
| TG1G-S032NYRL => LP5008ANL | Halo Transformer | LAN Gigabit | SMD Transformer |
Gigabit Ethernet Discrete Transformer
Port Ganda 10 / 100BASE-TX POE / POE + Transformer
IEEE802.3ab Compliant, 1500Vrms Hi-Pot
Konstruksi Bingkai Terbuka yang Dipatenkan

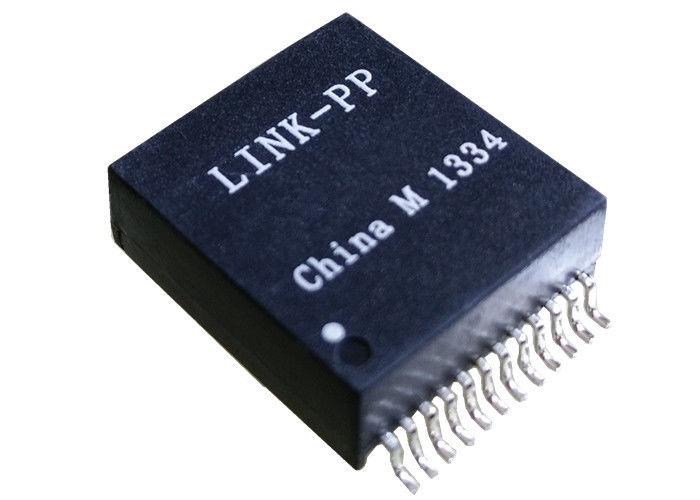

Halo TG1G-S032NYRL Gigabit Ethernet Transformer
LINK-PP LP5008ANLTransformer Cross
Keunggulan kompetitif
☛ Desainer / Produsen selama 18 tahun.
☛ 2.500 Pekerjaan, 4 tanaman
☛ Pasti Pass Fluke network analyzer
☛ Stok atau 4 minggu.
☛ Desain yang fleksibel sesuai dengan informasi yang dibutuhkan pelanggan tanpa biaya exral.
| Jumlah port | Aplikasi | Ternyata Rasio | Power Over Ethernet |
| Single GE / Ganda FE | 1G Ethernet | 1: 1 | IEEE 802.3 |
| Pengemasan | Arah Tab | Mounting Type | Kontak Selesai |
| Reel, Carton | - | SMT / SMD | - |
| Nomor Tanda | Melindungi | Tegangan Isolasi | Warna LED |
| 24 Pin | - | 1500 Vrms | --- |
Spesifikasi Listrik @ 25 ℃
1.Turns Ratio: 1CT∶1
2.Persiapan kerugian:
1-100MHz: -1.0dB MAX
3.Return Loss (dB MIN):
1-30MHz: -18 40MHz: -18
50MHz: -16 60-80MHz: -12
100MHz: -10
4.Crosstalk (dB MIN):
30MHz: -45 60MHz: -40
100MHz: -33
5.DCMR (dB MIN):
30MHz: -43 60MHz: -37
100MHz: -33
6.Hipot: 1500Vrms MIN
7.Operasi Suhu: -40 ℃ ～ + 85 ℃.
CATATAN:
1.Gigabit Transformer Modul Dengan Opsi Power Over Ethernet
2.Memenuhi IEEE 802.3 / af speciffcation
3.Untuk bagian RoHS tambahkan akhiran NL
4.RoHS "NL" puncak solder peringkat 260 ℃ %% P5 ℃.
5.100% Pengujian Listrik
| TG1G-S031NYRL Ethernet Isolasi Transformer TG1G-E001NYRL IEEE802.3ab Compliant | |||
|---|---|---|---|
| TG1G-S032NYRL | TG05-2004NARL | FD02-104G1RL | TG1G-E001NYRL |
| TG66-S020NXRL | TG05-2004NCRL | FD12-104G1RL | TG1G-S032NYRL |
| TG1G-S012NZRL | TG1G-S012NZRL | TG1G-S031NYRL | TG1G-E001NYRL |
| TG88-S020NXRL | TG1G-S001NZRL | TG1G-E010NZRL | TG1G-S012NZRL |
| TG89-S020NXRL | LG01-0346N1LF | TG1G-S012NZRL | LP5008ANL |
| TG1G-S012NZRL | TG1G-S032NYRL | TG1G-E001NYRL | TG1G-S012NZRL |
| LP5008ANL | TG1G-S012NZRL | TG1G-S032NYRL | TG1G-S012NZRL |
| TG1G-S032NYRL | LG01-0356N1LF | TG110-S053P2RL | LG01-0506NLF |
| TG1G-S031NYRL | LG01-0856N1LF | TG1G-S032NYRL | TG1G-S012NZRL |
| TG1G-S032NYRL | TG1G-S032NYRL | TG1G-S010NZRL | LG01-0346N1LF |
| TG1G-E001NZRL | TG1G-S001NZRL | TG110-S055J2RL | LP5008ANLL |
| TG1G-S031NYRL | TG1G-E010NZRL | TG1G-E001NZRL | TG42-1406P1RL |
| TG1G-S012NZRL | TG1G-S031NYRL | LP5008ANL | TG1G-S012NZRL |
| TG1G-S032NYRL | TG1G-S010NZRL | TG1G-S012NZRL | TG62-1006P1RL |
| TG1G-S012NZRL | LP5008ANL | TG1G-E010NZRL | TG1G-E001NYRL |
Halo TG1G-S032NYRL Gigabit Ethernet Transformer Single Port LINK-PP LP5008ANL
