| Item No: | TG1G-S012NZRL | Kategori: | Gigabit RJ45 Transformer |
|---|---|---|---|
| Ternyata Ratio: | 1CT: 1CT | pemasangan: | Permukaan gunung |
| Ukuran / Dimensi: | 17.7mm x 15.8mm W L | Tinggi - duduk (Max): | 6.6mm |
| Old PN: | TG1G-S012NZRL | Massa PN: | LP6062ANL |
| Archivi Disponibili: | PDF / 3D / ISG / Stp / Langkah / Datasheet | ||
| Menyorot: | 10 / 100Base-T Magnetics,Transformator Ethernet |
||

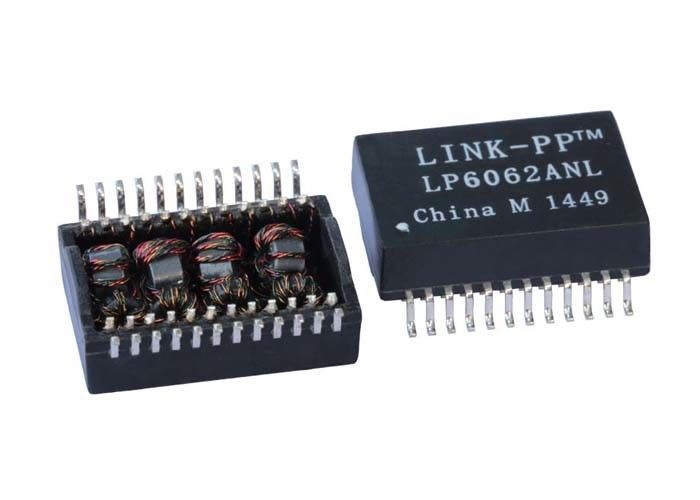

| TG1G-S012NZRL => LP6062ANL | Ubah 1CT: 1CT | Gigabit Discrete Transformer | 1000 Base-T SMT |
Gigabit Ethernet Discrete Transformer
IEEE802.3ab / af Compliant
UL / EN60950 Diakui
100% Pengujian Listrik
1500Vrms Hi-Pot
Konstruksi Bingkai Terbuka yang Dipatenkan
Halo TG1G-S012NZRL Transformer
LINK-PP LP6062ANL Cross
☛ Desainer dan Produsen selama 18 tahun.
☛ 2.500 Pekerjaan, 4 tanaman
☛ Pasti Pass Fluke network analyzer
☛ Stok atau 4 minggu.
☛ Desain yang fleksibel sesuai dengan informasi yang dibutuhkan pelanggan tanpa biaya exral.
| Jumlah port | Aplikasi | Ternyata Rasio | Power Over Ethernet |
| Single GE | 1G Ethernet | 1: 1 | IEEE 802.3 / IEEE 802.3af |
| Pengemasan | Arah Tab | Mounting Type | Kontak Selesai |
| Reel, Carton | - | SMT / SMD | - |
| Nomor Tanda | Melindungi | Tegangan Isolasi | Warna LED |
| 24 Pin | - | 1500 Vrms | --- |
Spesifikasi Listrik @ 25 ℃
1.Insertion Loss (dB Max):
0.3-1MHz: -1.1 1-65MHz: -0.8
65-100MHz: -1.0 100-125MHz: -1.2
2.Return Loss (dB Min @ 100 OHM):
0,5-40MHz: -18
40-100MHz: -12-20LOG (f / 80MHz)
3.Crosstalk (dB Min):
0.3-100MHz: -33-20LOG (f / 100MHz)
4. CM KE CM REJ:
0.3-100MHz: -30dB Min
5.CM KE DM REJ:
0.3-100MHz: -35dB Min
6. menghasilkan rasio:
PRI: SEC = 1CT: 1CT ± 2% P7.Inductance (100KHz/0.1V@11mA): 350uH Min
8.Sedikit Arus DC Line:
350mA Max @ 57VDC Terus Menerus
9.Hipot: 1500Vrms / 0,5mA
10. Suhu Operasi: -40 ℃ ～ + 85 ℃.
CATATAN:
1.Gigabit Transformer Modul Dengan Opsi Power Over Ethernet
2.Memenuhi spesifikasi IEEE 802.3af
3.Untuk bagian RoHS tambahkan akhiran NL
4.RoHS "NL" puncak solder peringkat 260 ℃ %% P5 ℃.
