Rincian Produk
Tempat asal: Guangdong, Cina
Nama merek: LINK-PP
Sertifikasi: UL,ROHS,Reach,ISO
Nomor model: 1368398-6 / 1368398-7
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 50/500/1000/25K
Harga: $0.08-$1.79
Kemasan rincian: 60pcs / tray, atau Paket Reel
Waktu pengiriman: persediaan
Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day
Menyediakan kemampuan: 2800K-PCS/bulan
Nomor bagian: |
1368398-6 / 1368398-7 |
Spesifikasi: |
1368398-6 / 1368398-7 |
Tipe Konektor: |
Gigabit Low Profile |
Aplikasi: |
10/100/1000 Lan |
Jenis mounting: |
Melalui lubang |
Orientasi: |
90 ~ sudut (kanan) |
Penghentian: |
Solder |
Perisai: |
Terlindung, EMI jari |
Nomor bagian: |
1368398-6 / 1368398-7 |
Spesifikasi: |
1368398-6 / 1368398-7 |
Tipe Konektor: |
Gigabit Low Profile |
Aplikasi: |
10/100/1000 Lan |
Jenis mounting: |
Melalui lubang |
Orientasi: |
90 ~ sudut (kanan) |
Penghentian: |
Solder |
Perisai: |
Terlindung, EMI jari |
| 1368398-6 / 1368398-7 | Profil Rendah Rj45 | Low Profile Rj45 PCB | 10/100/1000 Profil Rendah Rj45 |
Merancang Model: 【 1368398-6 / 1368398-7 】
♦ 1368398-6 Gigabit Low Profile Rj45
♦ Low Profile Rj45 steker 1368398-7
♦ 1000Base-T Low Profile Rj45 Dengan Magnetics
♦ Low Profile Rj45 PCB
♦ Low Profile Rj45 10/100/1000 Dengan Magnetics
♦ profil rendah Rj45 connecTor
♦ Dirancang untuk aplikasi kartu antarmuka jaringan.
♦ Dirancang untuk memenuhi persyaratan IEEE802.3u.
♦ Tersedia dalam semua rasio putaran yang digunakan oleh LAN ICmanufactures.
♦ Tap pusat utama tersedia untuk penambahan EMIreduction.
♦ Komponen magnetik paling sederhana untuk ditempatkan dan di route pada PCB.
♦ Menghemat meminimalkan ruang PCB.
♦ Model Produksi Massal: 【LPJXXXXNL】
MAG.REVERSE LATCH,
LED opsional; EMI-finger Opsional.

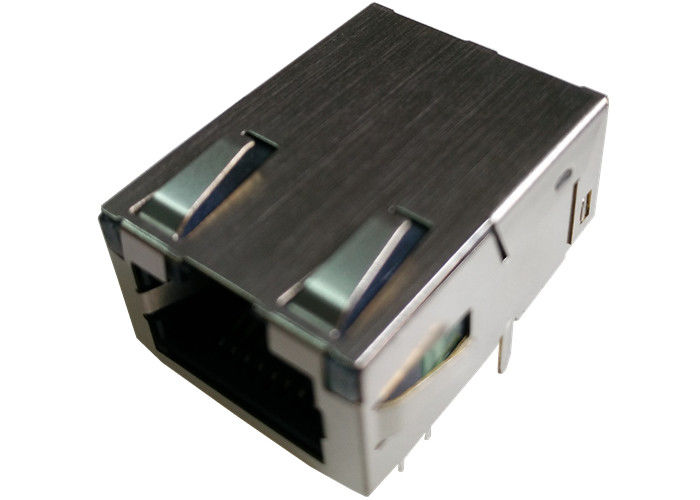

| Single Port Low Profile RJ45 Jack dengan 1000 Base-T Integrated Magnetics, Orange & Green / Yellow LED, Tab Up, RoHS | |
| Nomor Bagian LINK-PP | LPJK7003A98NL |
| Nomor Bagian Tyco | 1368398-2 / 1368398-4 / 1368398-6 |
| Aplikasi-Lan | ETHERNET (NoN PoE) |
| AutomDX | IYA NIH |
| Bst Circuit | IYA NIH |
| Konfigurasi RX | T, C |
| Konfigurasi TX | T, C |
| Hubungi Plating Area Perkawinan | EMAS 6u "/ 15u" / 30u " |
| Cores per Port | 8 |
| Dioda | TIDAK ADA DIODA |
| Opsi LED | ORANGE & GRREN / KUNING |
| Memalangi | TAB UP |
| Jumlah Port | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Mempertahankan Posting | T POST |
| Tinggi Paket (mm) | 11.30 |
| Paket Panjang (mm) | 24.04 |
| Lebar Paket (mm) | 16,85 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YA-ROHS-5 DENGAN MEMIMPIN DI PEMERIKSAAN SOLDER |
| Pencarian | IYA NIH |
| Perisai Tab EMI | DENGAN |
| Kecepatan | 1000 BASE-T |
| Suhu | 0 HINGGA 70 ℃ |
| Ternyata Rasio RX | 1CT: 1CT |
| Ternyata Rasio TX | 1CT: 1CT |
Didesain untuk mendukung aplikasi, seperti modem ADSL, LAN-on-Motherboard. Peralatan jaringan dan komunikasi seperti HUB, kartu PC, Switch, Router, Mainboard PC, SDH, PDH, IP Phone, modem xDSL, solusi Call Center, kotak atasan kompleks, konfigurasi gateway VOIP, Border Gateway Protocol, switch ethernet cepat .. .
Desain untuk Ti, Intel, Samsung, Fluke, Jabil, Flextronics, Cypress, Freescale, EKF .......
| 1368398-6 | Profil Rendah Rj45 | Gigabit Tab-up | 1368398-7 |
|---|---|---|---|
| 0817-1G1T-21 | 1840472-1 | RJMG63117102 | RJHSE-3380 |
| 1368398-6 | 1-1368398-6 | RJMG63118601 | 1368398-5 |
| LMJ1568815S0ALFG | 1368398-6 | RJMG631186A1 | 1840472-5 |
| 1840472-1 | 1368398-4 | 1-1840472-4 | 1368398-6 |
| Rj45 Connector Shield | RJMG168127101GR | 1-1368398-6 | RJHSE-3384 |
| Permukaan Gunung Rjmag | RJMG168129101GR | 1368398-3 | RJHSE-3385 |
| 1840472-1 | RJMG168217101GR | 1368398-4 | RJHSE-338A |
| LMJ2018814100DL3T1B | RJMG168218101GR | RJMG-6315-71-01 | 1840472-5 |
| 1368398-2 | 1368398-4 | 0817-1G1T-21 | RJHS-E3P84 |
| LMJ20581024100DL1T3 | 1-1840472-4 | 0813-1X1T-43 | 1368398-3 |
| LMJ2138812S0L1T1C | 1368398-7 | 1368398-5 | RJHSE-5080-02 |
| LMJ2138812S0L1T1C | 0817-1G1T-21 | 1-1840472-4 | 0817-1G1T-21 |
| RT7-174ABB1A | 1840472-5 | RJMG73117101 | RJHSE-5080A2 |
| LMJ262881413BB | 1-1368398-6 | RJMG-7312-71-01 | 0813-1X1T-23 |
| 1840472-8 | 1368398-4 | 1368398-7 | RJHSE-5081-02 |
| LMJ3078812J10816 | 0813-1X1T-43 | 1-1368398-6 | 1368398-3 |
| LMJ3078814J10816 | 1-1368398-6 | 1368398-6 | 1-1840472-4 |
| 1840472-8 | 1368398-3 | RJMG-B312-71-01 | 1368398-5 |
| 1368398-3 | 1840472-8 | 0811-1X1T-06 | RJHSE-5082 |
| 1368398-7 | 08B0-1X1T-03 | RJSAE-J38X-A8X | 1368398-5 |
| LMJ3138812S113TC | 1368398-7 | 1840472-8 | 1-1840472-4 |
