Rincian Produk
Tempat asal: Guangdong, Cina
Nama merek: LINK-PP
Sertifikasi: UL,RoHS,Reach,ISO
Nomor model: TG110-E055N5RL
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 400/2000/10K/25K
Harga: $0.6-$1.2
Kemasan rincian: T&R
Waktu pengiriman: persediaan
Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day
Menyediakan kemampuan: 4500k/Bulan
Jumlah PIN: |
16 |
Melindungi: |
Terlindung |
Penghentian: |
SMD |
Gunung: |
Permukaan Gunung |
Ternyata Rasio: |
1CT:1CT |
Suhu operasi: |
-40 °C hingga +85 °C |
Jumlah PIN: |
16 |
Melindungi: |
Terlindung |
Penghentian: |
SMD |
Gunung: |
Permukaan Gunung |
Ternyata Rasio: |
1CT:1CT |
Suhu operasi: |
-40 °C hingga +85 °C |
RincianModul Transformer Single Port:

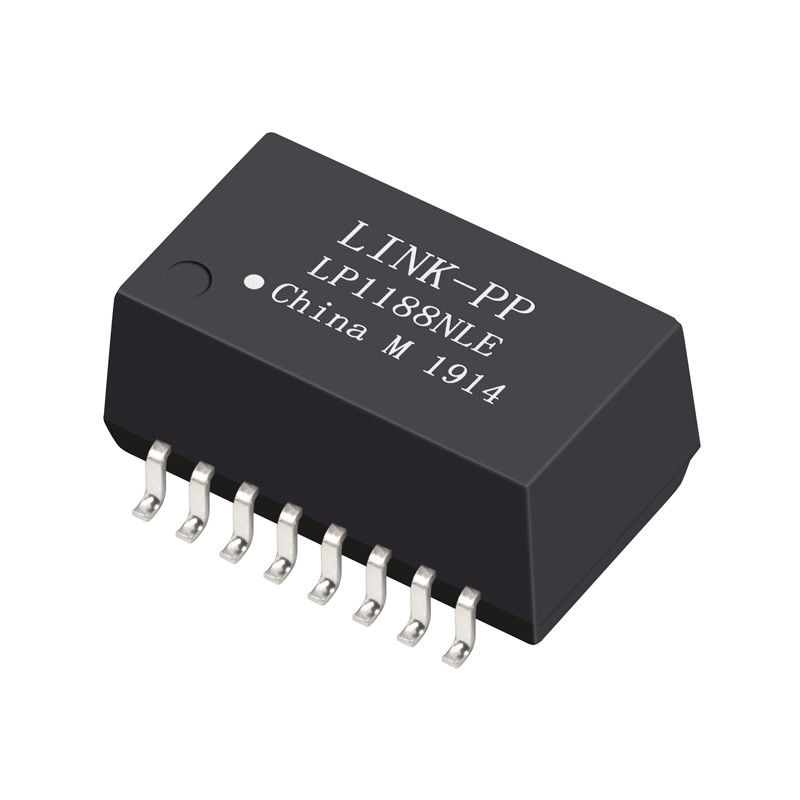

LINK-PP LP1188NLE 100% CROSS Halo TG110-E055N5RL | |
Nomor Bagian LINK-PP | LP1188NLE |
Spesifikasi | TG110-E055N5RL |
Kecepatan | 10/100BASE-TX |
Jumlah Pelabuhan | SINGLE |
Aplikasi - LAN | ETHERNET (Tidak ada PoE) |
Paket | SMD |
Jangkauan suhu operasi | -40°C sampai +85°C |
Rasio berputar (± 3%) | 1CT:1CT |
Cw/w | 40pF maksimal |
PRI/SEC LL | 0.4μH maksimal |
PRI DCR | 1.0Ω maksimal |
Konstruksi | Open Frame (Rangka terbuka) |
Inti Per Pelabuhan | 4 |
Ketinggian kemasan (mm) | 6.35 |
Panjang kemasan (mm) | 12.7 |
Lebar Paket (mm) | 7.11 |
Sertifikasi LINK-PP Magenetics:
Nomor Bagian Lainnya:
TD11-6006G | TD37-1205ALF | TG42-1205NM5RL | TG42-1205NSRL |
TD12-0756F | TD38-1505ALF | TG49-1205NM5RL | TG70-1205NSRL |
TD12-0756G | TD70-1205ALF | TG83-1205NM5RL | TG71-1205NSRL |
TD12-1506F | TD71-1205ALF | TGSP-S125NM5RL | TG08-1205N1LF |
TD12-1506G | TD72-1205ALF | TG36-1505NZRL | TG24-1205N1LF |
TD12-2506F | TG02-1205NSRL | TG43-1505NZRL | TG26-1205N1LF |
TD12-2506G | TG04-1205NSRL | TG48-1505NZRL | TG27-1205N1LF |
TG110-RP01NZRL | TG08-1205NSRL | TG75-1505NZRL | TG38-1205N1LF |
TG110-RP03NZRL | TG10-1205NSRL | TG85-1505NZRL | TG42-1205N1LF |
TG110-RPE9NZRL | TG15-1205NSRL | TG85-S002NZRL | TG48-1205N1LF |
TG110-RP05NYRL | TG23-1505NSRL | TG93-1505NZRL | TG63-1205N1LF |
TG110-RP10NYRL | TG37-1205NSRL | TG96-1505NZRL | TG64-1205N1LF |
TG110-RPE10NYRL | TG38-1205NSRL | TG97-1505NZRL | TG73-1205N1LF |
TG08-1505N5LF | TG23-1505NZRL | TG98-1505NZRL | TG74-1205N1LF |
TG23-1505N5LF | TG24-1505NZRL | TGSP-S225NZRL | TG80-1205N1LF |
TG24-1505N5LF | TG26-1505NZRL | TGSP-S281NZRL | TG27-1505N5LF |
TG26-1505N5LF | TG27-S004NZRL | TG08-1505NZRL | TG38-1505N5LF |
