Rincian Produk
Tempat asal: Guangdong, Tiongkok
Nama merek: LINK-PP
Sertifikasi: UL,RoHS,Reach,ISO
Nomor model: LPJG4933-7HENL
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 50 buah
Harga: $0.6-$1.3
Kemasan rincian: Tape dan Reel (1 karton = 1200pcs)
Waktu pengiriman: Di kapal stok dalam waktu 3 hari
Syarat-syarat pembayaran: TT,NET30/60/90 hari, Western Union
Menyediakan kemampuan: 5000K.PCS/Bulan
Nomor Bagian: |
LPJG4933-7HENL |
Posisi/Kontak: |
10P8C |
Warna LED: |
Hijau kuning |
Jumlah port: |
1x1 |
Memalangi: |
Turun |
Kecepatan Data: |
1000base-t |
PoE: |
Non |
Opsi LED: |
Dengan |
Tab EMl: |
tanpa |
Tipe Pemasangan: |
Tht |
Jenis solder: |
Melambai |
Kisaran suhu pengoperasian: |
-40°C hingga +85°C |
Nomor Bagian: |
LPJG4933-7HENL |
Posisi/Kontak: |
10P8C |
Warna LED: |
Hijau kuning |
Jumlah port: |
1x1 |
Memalangi: |
Turun |
Kecepatan Data: |
1000base-t |
PoE: |
Non |
Opsi LED: |
Dengan |
Tab EMl: |
tanpa |
Tipe Pemasangan: |
Tht |
Jenis solder: |
Melambai |
Kisaran suhu pengoperasian: |
-40°C hingga +85°C |
| Parameter | Specification |
|---|---|

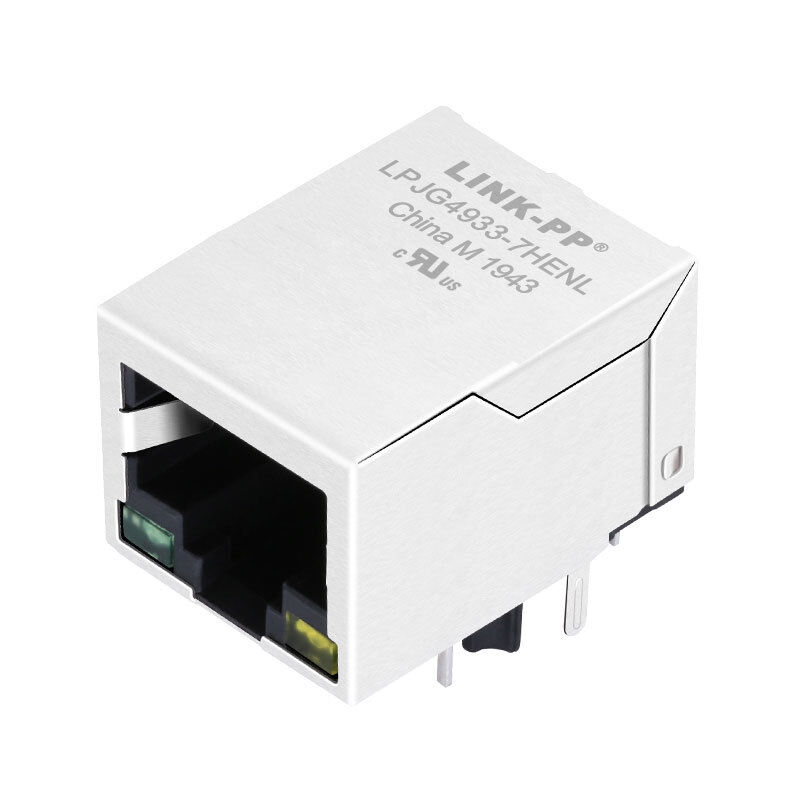

| Part Number | LPJG4933-7HENL |
| Brand | LINK-PP |
| Connector Type | RJ45 MagJack (Integrated Magnetics) |
| Port Configuration | 1 × 1 (Single Port) |
| Number of Positions / Contacts | 10P8C |
| Ethernet Speed | 10/100/1000 Base-T |
| Application | Ethernet (Non-PoE) |
| Mounting Type | Through Hole |
| Orientation | 90° Right Angle (Side Entry) |
| Latch Type | Tab Down |
| Shielding | Shielded (Without EMI Spring Finger) |
| LED Indicator | Green / Yellow |
| Operating Temperature | -40°C to +85°C |
| Compliance | IEEE 802.3, RoHS |
| UL Certification | E484635 |
| Parameter | Specification |
|---|---|
| Turn Ratio | 1CT:1CT ±5% |
| OCL (Open Circuit Inductance) | ≥ 350 µH @ 100 kHz, 0.1V, 8mA DC Bias |
| Insertion Loss | ≤ -1.2 dB (1-100 MHz) |
| Return Loss | ≥ -16 dB (1-30 MHz) ≥ -12 dB (30-60 MHz) ≥ -10 dB (60-80 MHz) ≥ -8 dB (80-100 MHz) |
| Crosstalk | ≥ -30 dB (1-100 MHz) |
| Common Mode Rejection | ≥ -30 dB (1-100 MHz) |
| Isolation Voltage | 1500 Vrms (PHY to Line) |
| Parameter | Green LED | Yellow LED |
|---|---|---|
| Peak Wavelength | 565 nm | 585 nm |
| Forward Voltage (VF @ 20mA) | 1.8 - 2.6 V | 1.8 - 2.6 V |
| Reverse Current (IR @ 5V) | ≤ 10 µA | ≤ 10 µA |
| Parameter | Specification |
|---|---|
| Package Length | 21.25 mm (0.837 in) |
| Package Width | 15.94 mm (0.628 in) |
| Package Height | 13.30 mm (0.524 in) |
| PCB Mounting | Through Hole |
| PCB Layout | Recommended Top View Available |
| Entry Direction | Side Entry |
| Component | Material |
|---|---|
| Housing | Thermoplastic PBT + 30% Glass Fiber (UL94V-0) |
| Contacts | Phosphor Bronze (C5210R-EH, 0.35 mm) |
| Pins | Brass (C2680R-H, 0.35 mm) |
| Shield | SUS 304 (0.2 mm thickness) |
| Contact Plating | Gold ≥ 15 µin (contact area) |
| Parameter | Specification |
|---|---|
| Soldering Method | Wave Soldering |
| Peak Solder Temperature | 260°C |
| Solder Time | 5 seconds |
| Category | Details |
|---|---|
| Typical Applications | SOHO Devices, ADSL Modems, LAN-on-Motherboard (LOM), Hubs, Switches |
| Target Platform | BeagleBone Green Eco (Gigabit Ethernet Interface) |
| Design Advantage | Integrated magnetics reduces BOM and simplifies PCB layout |
