A00-108-222-450 Top Entry PCB Modular Jack through-hole for Cat 5

Name: A00-108-222-450 Top Entry PCB Modular Jack through-hole for Cat 5
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: A00-108-222-450
Price: 0.05 USD
Availability: InStock

Rincian Produk

Tempat asal: Guangdong, Huizhou

Nama merek: LINK-PP

Sertifikasi: UL,RoHS,Reach,ISO

Nomor model: A00-108-222-450

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 50 buah

Harga: $0.05-$0.8

Kemasan rincian: T & r

Waktu pengiriman: Di kapal stok dalam waktu 3 hari

Syarat-syarat pembayaran: T/T, L/C, CAD/D/P, OA

Menyediakan kemampuan: 5kk/bulan

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                    Top Entry PCB Modular Jack, Vertical RJ45 Jack through-hole, Cat 5 Modular Jack PCB


Nomor Bagian:	A	Jenis Produk:	R
Jenis kelamin:	J	Jumlah port:	1
Kontak:	8	Perisai:	S
Kategori kinerja:	C	Arahan Tab:	T
Suhu pengoperasian:	-	Pelapisan Kontak:	G

Nomor Bagian:	A
Jenis Produk:	R
Jenis kelamin:	J
Jumlah port:	1
Kontak:	8
Perisai:	S
Kategori kinerja:	C
Arahan Tab:	T
Suhu pengoperasian:	-
Pelapisan Kontak:	G

A00-108-222-450 Top Entry PCB Modular Jack through-hole for Cat 5

A00-108-222-450 Top Entry PCB Modular Jack

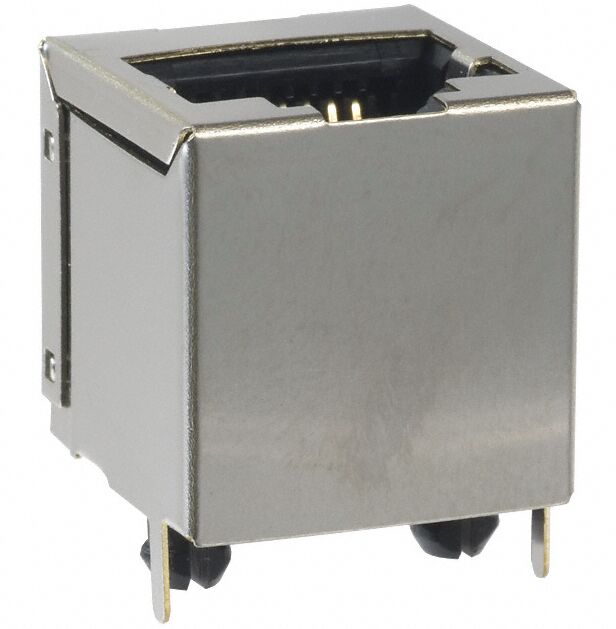

A00-108-222-450 is a shielded RJ45 top entry P.C.B modular jack with 8P8C contacts, 1x1 port, through-hole solder mounting, Cat 5 performance, and 10/100Base-T application support.

A00-108-222-450 Shielded RJ45 Modular Jack Overview

The A00-108-222-450 Shielded RJ45 Top Entry P.C.B Modular Jack is a female RJ45 modular connector designed for reliable PCB-mounted Ethernet connectivity. This part belongs to the EDAC A00 series and is built as a 1x1, 8P8C, shielded modular jack with top-entry tab direction, vertical mounting style, and through-hole solder termination. It is suited for 10/100 Base-T network applications and other Cat 5 designs that require a compact and durable board interface.

Why Choose the A00-108-222-450 Vertical RJ45 Jack?

If you are searching for an A00-108-222-450 RJ45 connector or a shielded RJ45 top entry PCB modular jack, this part offers the key features most design teams need: standard RJ45 / USOC compatibility, 8-position / 8-contact (8P8C) interface, shielded construction, and THT solder mounting for stable board assembly. The datasheet also lists Cat 5 performance, making it a practical choice for Ethernet ports in industrial, networking, and embedded systems.

Key Features

Standard RJ45 Interface (8P8C)
Shielded Design for EMI Protection
Top Entry (Vertical) Configuration
1x1 Port Compact Structure
Through-Hole (THT) Solder Mounting
Cat 5 Performance Support
Gold-Plated Contacts (Enhanced Conductivity)
Wide Operating Temperature Range (-40°C to +80°C)
High Reliability Contact Material (Phosphor Bronze)

Technical Specifications of A00-108-222-450

Item	Specification
Part Number	A00-108-222-450
Product Series	A00
Product Type	Modular Jack
Brand	EDAC
Gender	Jack (Female)
USOC Code	RJ45
Configuration	1x1
Number of Positions / Contacts	8P8C
Number of Ports	1 Port
Shielding	Shielded
Performance Category	Cat 5
Mounting Style	Through Hole
Mounting Angle	Vertical
Termination Style	Solder
Tab Direction	Top Entry
Current Rating	1.5 A
Voltage Rating	125 VAC
Operating Temperature	-40°C to +80°C
Color	Black
Application	10/100 Base-T
Contact Material	Phosphor Bronze
Contact Plating	Gold
RX/TX Turns Ratio	1CT:1CT

Typical Applications of Top Entry PCB Modular Jack

The A00-108-222-450 is a strong fit for:

Ethernet communication boards
10/100Base-T network devices
Industrial control equipment
Embedded systems
PCB designs requiring a shielded RJ45 top entry modular jack
Equipment needing a 1x1 RJ45 PCB connector with through-hole solder mounting

FAQ about A00-108-222-450 Cat 5 RJ45 Modular Jack

If your project needs a shielded RJ45 top entry P.C.B modular jack with 8P8C contacts, 1x1 port, through-hole solder mounting, Cat 5 performance, and 10/100 Base-T support, the A00-108-222-450 is a practical and search-relevant choice for PCB Ethernet connectivity.

1. What is the A00-108-222-450?

The A00-108-222-450 is a shielded RJ45 top entry P.C.B modular jack in the EDAC A00 series, designed as a 1x1, 8P8C, through-hole solder Ethernet connector.

2. What is the mounting style of this RJ45 jack?

It uses through-hole mounting with a vertical mounting angle and solder termination.

3. Is this connector shielded?

Yes. The A00-108-222-450 is listed as shielded, which helps support EMI-sensitive network designs.

4. What is the contact configuration?

It uses 8P8C contacts, which is the standard RJ45 Ethernet format.

Tags:

RJ45 modular jack

Jack magnetik RJ45

Jack RJ45 Profil Rendah

Konektor PoE RJ45

Jack vertikal RJ45

SMT RJ45 Connector

Jack Multi Port RJ45

Transceivers optik

Modul 10G SFP+

Transformator POE LAN

Transformator Magnetik Diskrit

Konektor Kandang SFP

Kandang QSFP

Konektor Melingkar

Magjacks LINK-PP

LINK-PP Modjacks

LINK-PP Magnetics

Kandang LINK-PP

Transceiver LINK-PP
