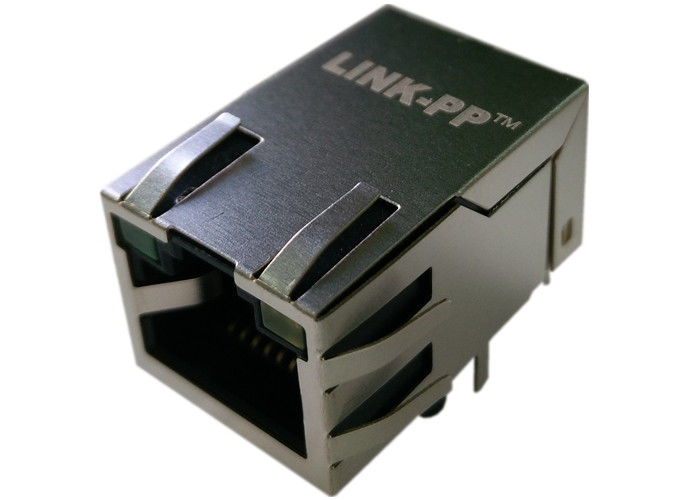

Konektor PulseJack J1011F21PNL Perempuan Ethernet RJ45 Tab-up 10 / 100Mbps

1.10 / 100Base-T Base-T SIngle Port Rj45 Aplikasi Tab-up

2.1X1, INT. MAG., LED, LATCH REVERSE

3. J1011F21PNL 【Merancang Model】

4.SM- LPJ1011ABNL 【Model Produksi Massal】

4.LED opsional, EMI-finger Opsional.

J1011F21PNL Spesifikasi Listrik: TEST CATATAN (25 ± 5 ℃)
1.TR:(100KHZ,0.1V);
TX = 1CT: 1CT ± 3% RX = 1CT: 1CT ± 3% P2.LX: (100KHz, 100mV, 8mA, DC Bias)
PIN: (P1, P2), (P7, P8) = 350uH MIN
3.HIPOT:
PINS (P1, P3, P2) TO (J1, J2) = 1500VAC SELAMA 60 DETIK
PINS (P7, P6, P8) TO (J3, J6) = 1500VAC SELAMA 60 DETIK
4. KERUGIAN INSERTION:
-1.0dB MAX @ 1.0MHz KE 65MHz
5. KEMBALIKAN RUGI:
-20dB MIN @ 1MHz KE 10MHz
-16dB MIN @ 10MHz KE 30MHz
-12dB MIN @ 30MHz KE 60MHz
-10dB MIN @ 60MHz KE 100MHz
6.CROSS TALK:
-40dB MIN @ 1MHz KE 30MHz
-35dB MIN @ 30MHz KE 60MHz
-30dB MIN @ 60MHz KE 100MHz
7.COMMON TO COMMON MODE REJECTION:
-30dB MIN @ 1MHz KE 50MHz
-20dB MIN @ 50MHz KE 150MHz
8. MENGOPERASIKAN SUHU: 0 ℃ ～ 70 ℃.
