Rincian Produk
Tempat asal: Guangdong, Tiongkok
Nama merek: LINK-PP
Sertifikasi: UL,RoHS,Reach,ISO
Nomor model: AA1403011-E6
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 10 PC
Harga: $3.2-$5
Kemasan rincian: T & r
Waktu pengiriman: Di kapal stok dalam waktu 3 hari
Syarat-syarat pembayaran: TT, Net30/60/90 hari
Menyediakan kemampuan: 5kk/bulan
Nomor bagian: |
AA1403011-E6 |
Kecepatan data: |
10Gbps (10GBASE-LR) |
Panjang gelombang: |
1310 nm |
Jarak maksimal: |
10 km (6,2 mil) |
Jenis Serat: |
Serat Single-Mode (SMF) |
hot-swappable: |
Ya |
Nomor bagian: |
AA1403011-E6 |
Kecepatan data: |
10Gbps (10GBASE-LR) |
Panjang gelombang: |
1310 nm |
Jarak maksimal: |
10 km (6,2 mil) |
Jenis Serat: |
Serat Single-Mode (SMF) |
hot-swappable: |
Ya |

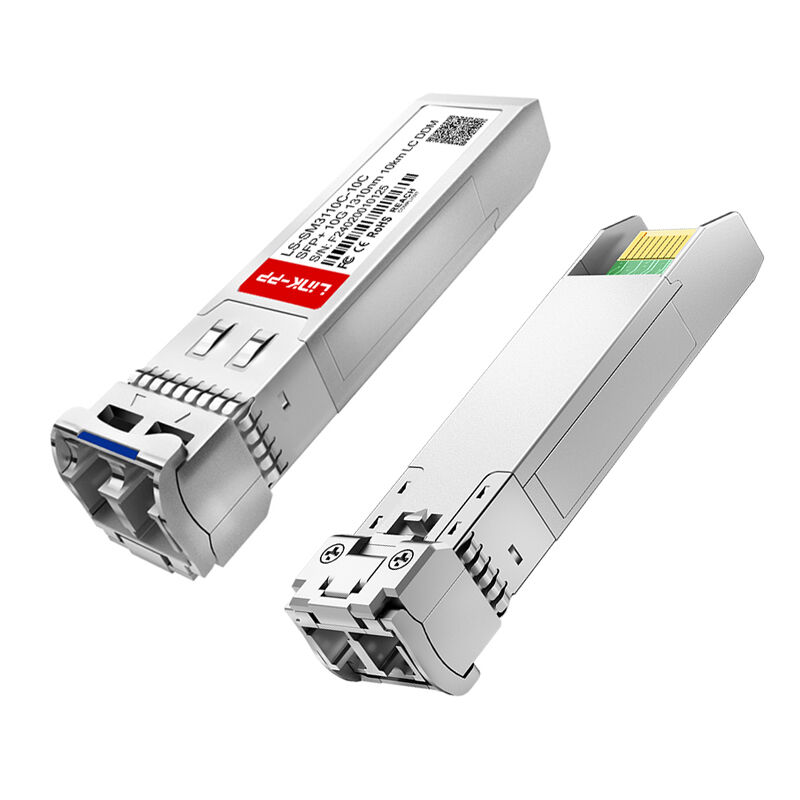

The AA1403011-E6 is a 10 Gigabit Small Form-Factor Pluggable Plus (SFP+) transceiver module designed for high-speed data transmission. It is engineered to support 10GBASE-LR Ethernet links up to 10 kilometers over Single-Mode Fiber (SMF). This module is fully compliant with the SFP+ Multi-Source Agreement (MSA) and IEEE 802.3ae standards.
| Form Factor | SFP+ |
|---|---|
| Data Rate | Up to 10.3 Gbps |
| Application Standard | 10GBASE-LR / 10GBASE-LW |
| Wavelength | 1310 nm |
| Maximum Distance | 10 km (SMF) |
| Fiber Type | Single-Mode Fiber (9/125 µm) |
| Connector Type | Duplex LC |
| Digital Diagnostics | Yes (DDM/DOM per SFF-8472) |
| Operating Voltage | 3.3 V |
| Operating Temperature | 0°C to +70°C (commercial), extended range options available |
| Transmitter Type | DFB Laser |
|---|---|
| TX Output Power | -8.0 dBm to +0.5 dBm |
| Receiver Type | PIN Photodiode |
| Receiver Sensitivity | ≤ -14.0 dBm |
| Receiver Overload | ≥ +0.5 dBm |
| Optical Budget | 6 dB |
