Rincian Produk
Tempat asal: Guangdong, Tiongkok
Nama merek: LINK-PP
Sertifikasi: UL,RoHS,Reach,ISO
Nomor model: LPJD0718DNL
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 400/2000/10k/25k
Harga: $0.5-$1.1
Kemasan rincian: T & r
Waktu pengiriman: di kapal stok hari ini
Syarat-syarat pembayaran: TT, Net30/60/90 hari
Menyediakan kemampuan: 5kk/bulan
Nomor Bagian: |
LPJD0718DNL |
Kategori: |
Konektor vertikal RJ45 |
Aplikasi: |
Ethernet Gigabit Non-PoE |
Hipot: |
1500 VRM |
Jenis Mount: |
Vertikal (THT) |
kisaran suhu pengoperasian: |
0°C ~ 70°C |
Posisi / kontak: |
10P8C |
Orientasi kait: |
Ke atas |
Lindungi Tab EMI: |
Tanpa |
Bahan perumahan: |
PBT termoplastik + 30% Serat Kaca |
Bahan kontak: |
Perunggu fosfor |
UL94V-0: |
Ya |
Bahan pin: |
Kuningan C2680R-H, 0,35 mm |
Bahan Perisai: |
Kuningan Paduan Tembaga |
Pelapisan kontak: |
Emas 6 µin Min |
Suhu Solder Gelombang.: |
250°C ±5°C selama 5 Detik |
Nomor Bagian: |
LPJD0718DNL |
Kategori: |
Konektor vertikal RJ45 |
Aplikasi: |
Ethernet Gigabit Non-PoE |
Hipot: |
1500 VRM |
Jenis Mount: |
Vertikal (THT) |
kisaran suhu pengoperasian: |
0°C ~ 70°C |
Posisi / kontak: |
10P8C |
Orientasi kait: |
Ke atas |
Lindungi Tab EMI: |
Tanpa |
Bahan perumahan: |
PBT termoplastik + 30% Serat Kaca |
Bahan kontak: |
Perunggu fosfor |
UL94V-0: |
Ya |
Bahan pin: |
Kuningan C2680R-H, 0,35 mm |
Bahan Perisai: |
Kuningan Paduan Tembaga |
Pelapisan kontak: |
Emas 6 µin Min |
Suhu Solder Gelombang.: |
250°C ±5°C selama 5 Detik |

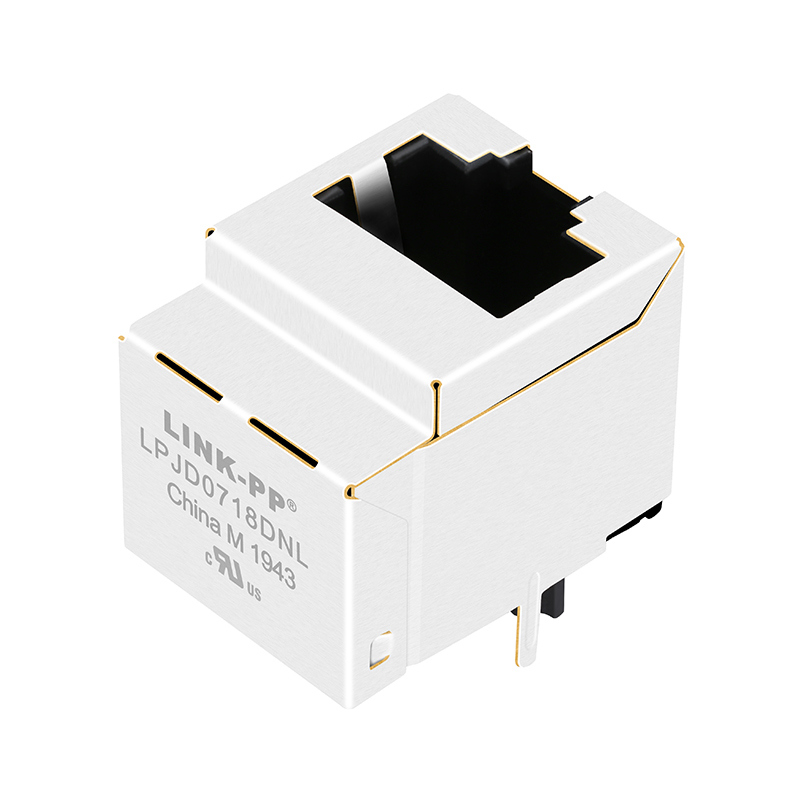

The LPJD0718DNL is a single-port 10/100/1000 Base-T (Gigabit Ethernet) RJ45 magnetic connector designed for vertical PCB mounting. It integrates a high-performance transformer module within the jack housing and supports non-PoE applications.
This model does not include LED indicators, making it ideal for compact or customized Ethernet designs where external status indication is not required.
The LPJD0718DNL provides excellent signal integrity, EMI suppression, and long-term reliability across Ethernet transmission environments, ensuring stable connectivity in high-speed data applications.
| Specification | Value | Condition |
|---|---|---|
| Turn Ratio (±2%) | 1CT:1CT | Primary: Secondary (TX/RX) |
| OCL Inductance (Min) | 350 µH | @100kHz, 0.1V, 8mA DC Bias |
| Insertion Loss (Max) | -1.0 dB | 1 - 100 MHz |
| Return Loss (Min) | -18 dB | 1 - 40 MHz |
| Return Loss (Min) | -14 dB | 60 MHz |
| Return Loss (Min) | -12 dB | 80 MHz |
| Return Loss (Min) | -10 dB | 100 MHz |
| Crosstalk (Min) | -30 dB | 1 - 100 MHz |
| CMRR (Min) | -30 dB | 1 - 100 MHz |
| HiPot Test | 1500 Vrms | -- |
| Operating Temperature Range | 0°C ~ 70°C | -- |
| Dimension | Inches | Millimeters (mm) |
|---|---|---|
| Height | 0.654" | 16.60 mm |
| Length | 0.850" | 21.59 mm |
| Width | 0.630" | 16.00 mm |
The LPJD0718DNL Vertical RJ45 Gigabit MagJack is widely used in networking and embedded communication equipment that requires high-speed Ethernet performance without PoE.
