Rincian Produk
Tempat asal: Guangdong, Tiongkok
Nama merek: LINK-PP
Sertifikasi: UL,ROHS,Reach,ISO
Nomor model: LPJD0713DNL
Dokumen: LPJD0713DNL.pdf
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 50/500/1000/25K
Harga: $0.09-$1.85
Kemasan rincian: 54 pcs dalam 1 baki, 22 baki dalam 1 karton, yaitu 37*30*30 cm, 10KGS (1080 pcs) setiap karton
Waktu pengiriman: 1 hari, kirim hari ini
Syarat-syarat pembayaran: TT, Net30/60/90 hari
Menyediakan kemampuan: 3000000/Bulan
Seri: |
Konektor RJ45 vertikal |
Nomor Bagian: |
LPJD0713DNL |
Ethernet: |
10/100/1000BASE-T |
DIPIMPIN: |
Tanpa led |
Suhu Operasional: |
0 ° C hingga +70 ° C. |
Orientasi: |
Entri teratas |
Tinggi: |
16.6mm |
Panjang: |
21.59mm |
Lebar: |
16.00mm |
File: |
Lembar data, jejak PCB, dan LANGKAH 3D tersedia |
Seri: |
Konektor RJ45 vertikal |
Nomor Bagian: |
LPJD0713DNL |
Ethernet: |
10/100/1000BASE-T |
DIPIMPIN: |
Tanpa led |
Suhu Operasional: |
0 ° C hingga +70 ° C. |
Orientasi: |
Entri teratas |
Tinggi: |
16.6mm |
Panjang: |
21.59mm |
Lebar: |
16.00mm |
File: |
Lembar data, jejak PCB, dan LANGKAH 3D tersedia |

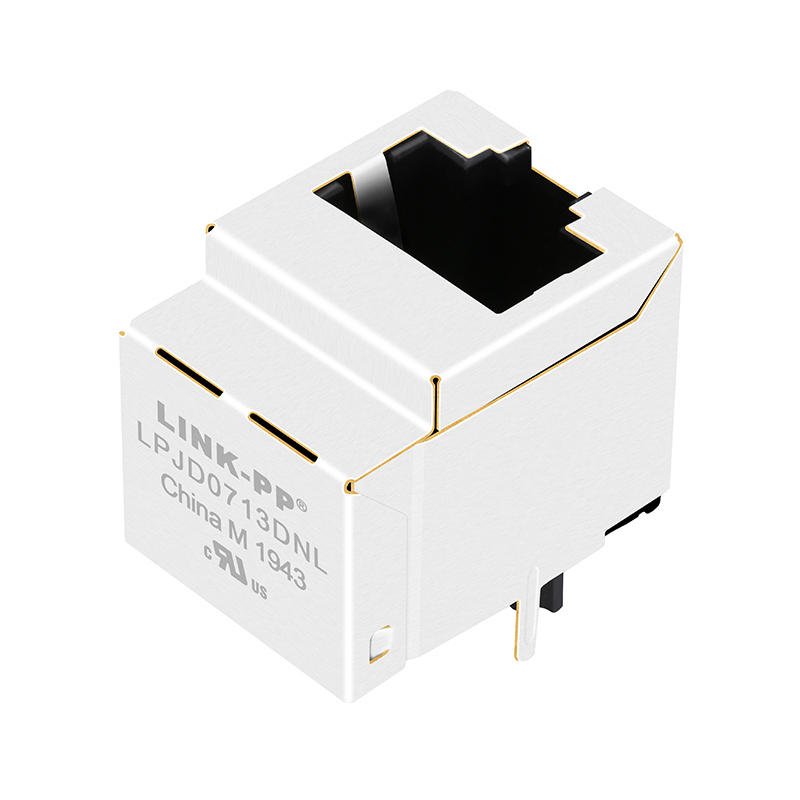

The LINK-PP LPJD0713DNL is a 1 ×1 vertical (top-entry) RJ45 connector with integrated magnetics, designed for 10/100/1000BASE-T Ethernet applications. Featuring a built-in transformer, excellent EMI performance, and no-LED design, it delivers cost-effective, high-reliability Ethernet connectivity for compact embedded and industrial systems.
Ideal for applications where board space, simplified design, and long-term reliability are priorities.
| Parameter | Description |
|---|---|
| Product Model | LPJD0713DNL |
| Connector Type | RJ45 w/ Integrated Magnetics |
| Port Configuration | 1×1 Single Port |
| Speed | 10/100/1000BASE-T |
| Transformer Ratio | 1CT:1CT |
| OCL | ≥ 350 µH @ 100kHz, 0.1V, 8mA |
| Isolation Voltage | 1500 Vrms |
| Mounting Style | Vertical / Top Entry |
| Termination | Through-Hole |
| Shielding | Metal shield |
| Contact Plating Options | 6µ" / 15µ" / 30µ" Gold |
| Operating Temperature | 0°C to +70°C |
| Housing Material | High-temperature thermoplastic |
| Compliance | RoHS, REACH, UL, ISO9001/14001 |
This Vertical RJ45 connector supports PHYs from:
Offers plug-and-play compatibility with major industry Ethernet controllers.
