Rincian Produk
Tempat asal: CINA
Nama merek: LINK-PP
Sertifikasi: UL,ROHS,Reach,ISO
Nomor model: HFJV1-1G46RL
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 50/500/1000
Harga: $0.09-$3.85
Kemasan rincian: 50pcs/tray, 1200pcs/karton
Waktu pengiriman: di kapal stok hari ini
Syarat-syarat pembayaran: TT, Net30/60/90 hari
Menyediakan kemampuan: 4200K-PCS/Bulan
Nomor Bagian: |
HFJV1-1G46RL / HFJV1-E1G46RL |
Setara: |
LPJD0718DNL |
Hi-Pot: |
1500Vrms |
OCL: |
350uH Menit pada Bias DC 8mA |
Penggerak PHY: |
Voltase |
Jenis: |
Konektor RJ45 Vertikal Dengan 1000 Magnetik |
Nomor Bagian: |
HFJV1-1G46RL / HFJV1-E1G46RL |
Setara: |
LPJD0718DNL |
Hi-Pot: |
1500Vrms |
OCL: |
350uH Menit pada Bias DC 8mA |
Penggerak PHY: |
Voltase |
Jenis: |
Konektor RJ45 Vertikal Dengan 1000 Magnetik |

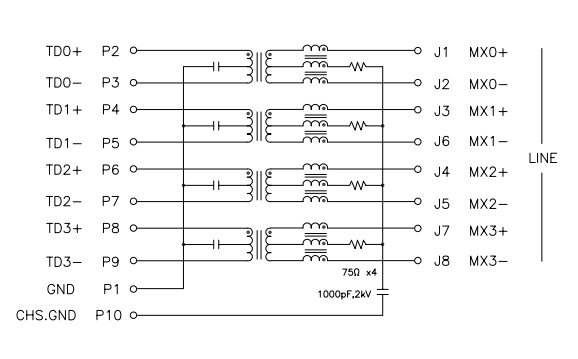

1x1 vertical shielded Gigabit RJ45 MagJack with integrated transformers, IEEE-802.3 compliant, available in standard (HFJV1-1G46RL) and industrial-temperature versions (HFJV1-E1G46RL) for networking and industrial applications.
1-port RJ45 Connector with integrated magnetics
Supports 10/100/1000Base-T Ethernet
Without LEDs
Compatible with PoE / PoE+ (IEEE 802.3af/at)
Low cross-talk & superior EMI suppression
TOP-Entry Mounting
RoHS-compliant, Halogen-free options available
Shielded housing for noise immunity
| Parameter | Specification |
|---|---|
| Ethernet Speed | 10/100/1000 Mbps |
| Transformer Ratio | 1:1 (Gigabit) |
| Compliant | IEEE 802.3 compliant |
| HI-POT | 1500VAC, 60s |
| Insulation Resistance | ≥ 500MΩ |
| Contact Resistance | ≤ 40mΩ |
| Insertion/Withdrawal Cycles | 750+ cycles |
| Parameter | HFJV1-1G46RL / HFJV1-E1G46RL |
|---|---|
| Connector Type | RJ45 Magnetic Jack |
| Port Count | 1 port |
| LED | No LEDs |
| Orientation | Top-Entry |
| Shield | Yes |
| Operating Temperature | 0°C to +70°C / -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 0–95% RH |
