Rincian Produk
Tempat asal: Guangdong, Cina
Nama merek: LINK-PP
Sertifikasi: UL,RoHS,REACH,ISO
Nomor model: LPJ4012AHNL
Dokumen: LPJ4012AHNL.pdf
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 50/1200 pcs
Harga: $0.7-$1.5
Kemasan rincian: baki
Waktu pengiriman: 5-8 hari kerja
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union
Menyediakan kemampuan: 5kk/bulan
Nomor bagian: |
LPJ4012AHNL |
Jenis kelamin: |
Magjack Wanita |
Merek yang kompatibel: |
Detak |
Jumlah port: |
1x1 |
Memalangi: |
Turun |
Laju data: |
100base-t |
Poe: |
Non |
Opsi LED: |
Dengan |
Tab EMl: |
Dengan |
Jenis pemasangan: |
Tht |
Jenis solder: |
Melambai |
Kisaran suhu operasi: |
-40 ° C hingga +85 ° C. |
Nomor bagian: |
LPJ4012AHNL |
Jenis kelamin: |
Magjack Wanita |
Merek yang kompatibel: |
Detak |
Jumlah port: |
1x1 |
Memalangi: |
Turun |
Laju data: |
100base-t |
Poe: |
Non |
Opsi LED: |
Dengan |
Tab EMl: |
Dengan |
Jenis pemasangan: |
Tht |
Jenis solder: |
Melambai |
Kisaran suhu operasi: |
-40 ° C hingga +85 ° C. |

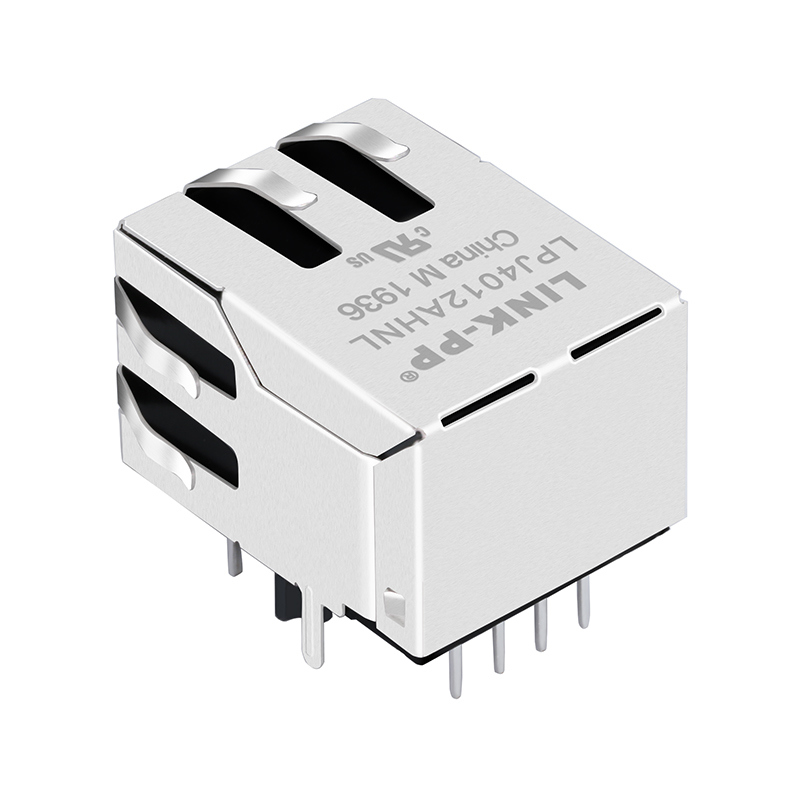

The LPJ4012AHNL from LINK-PP is a 10/100BASE-T Single Port RJ45 Female Connector featuring integrated LEDs and EMI shielding. It is designed for Fast Ethernet (IEEE 802.3) applications such as network switches, routers, media converters, and embedded Ethernet interfaces.
| Feature | Specification | Details |
|---|---|---|
| Ethernet Speed | 10/100 Base-T | Supports IEEE 802.3 Fast Ethernet |
| Number of Ports | 1×1 | Single Port RJ45 Connectors |
| Pin Count | 8P8C | Standard RJ45 modular interface |
| Mounting Type | THT (Through-Hole) | Wave-soldered through PCB holes |
| Orientation | Tab Down | Latch positioned downward for PCB edge mounting |
| LED Indicators | Green / Yellow | Display link and activity status |
| Shielding | EMI Shield with Ground Tabs | Provides better noise immunity |
| Operating Temperature | -40 °C to +85 °C | Industrial temperature range |
| Dimensions | 21.25 mm L × 15.93 mm W × 13.30 mm H | Compact design |
| Compliance | IEEE 802.3, UL, RoHS, REACH, ISO9001/14001 | Fully certified for global markets |
| Packaging | 50 pcs/tray, 1200 pcs/carton | Standard packaging |
