Name: 4-2170808-4 zQSFP+/QSFP28 28Gb/s Cage Assembly Ganged 1x2
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: 4-2170808-4
Price: 7.00 USD
Availability: InStock

Rincian Produk

Tempat asal: Guangdong, Cina

Nama merek: LINK-PP

Sertifikasi: ISO 9001,ISO 14001,UL,SGS,REACH168

Nomor model: 4-2170808-4

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 10/100/25K

Harga: $3-$12

Kemasan rincian: 20/baki

Waktu pengiriman: Di kapal stok dalam waktu 3 hari

Syarat-syarat pembayaran: TT, Net30/60/90 hari

Menyediakan kemampuan: 350k/bulan

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                    Ganged QSFP28 Cage, TE Connectivity 4-2170808-4, 28Gb/s Cage Assembly


Jenis:	QSFP28 Cage	Heat sink:	Dengan
Penghentian:	Tekan-Fit	Dapat disegel:	TIDAK
Nomor bagian:	4-2170808-4	Kisaran suhu operasi:	-40 -85 ° C
Jenis pemasangan:	Melalui lubang	Status ROHS:	Ya

Jenis:	QSFP28 Cage
Heat sink:	Dengan
Penghentian:	Tekan-Fit
Dapat disegel:	TIDAK
Nomor bagian:	4-2170808-4
Kisaran suhu operasi:	-40 -85 ° C
Jenis pemasangan:	Melalui lubang
Status ROHS:	Ya

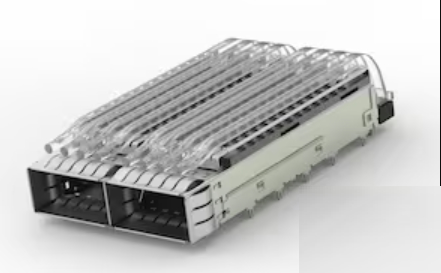

4-2170808-4 zQSFP+/QSFP28 28Gb/s Cage Assembly Ganged 1x2

4-2170808-4 QSFP28 Cage Quick Details

Form Factor Compatibility: QSFP28 / QSFP56
Data Rate: Up to 28 Gb/s
Operating Temperature Range: –40 °C to +85 °C (–40 °F to +185 °F)
Cage Type: Ganged
Sealable: No
Thermal Accessory: Heat Sink (Pin Type, Anodized Black Finish)
EMI Containment: Internal and External EMI Springs
Included Components: Lightpipe
PCB Contact Termination: Through-Hole Press-Fit, Tin Plated, 2.05 mm Tail Length
Recommended PCB Thickness: 1.57 mm (0.062 in)
Cage Material: Nickel Silver
Heat Sink Height: 4.2 mm
UL Flammability Rating: UL 94V-0
Packaging: Box & Tray

4-2170808-4 1X2 Ganged Cage Applications

This cage assembly is designed for high-speed data transmission applications, including:

Data center switches and routers
Telecom and networking equipment
Backplane and board-to-board interconnects
Systems requiring robust thermal and EMI control under wide ambient temperature conditions

Mechanical & Environmental Considerations

Nickel Silver Cage: Provides excellent mechanical strength and conductivity for shielding
Heat Sink: Assists in heat dissipation in dense module configurations
Operating Temperature Range: Suitable for industrial, telecom, and rugged environments
Non-Sealable Design: Should be protected from dust, moisture, or contaminant ingress where necessary
