Rincian Produk
Tempat asal: Guangdong, Cina
Nama merek: LINK-PP
Sertifikasi: ISO 9001,ISO 14001,UL,SGS,REACH168
Nomor model: 4-2170808-1
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 10/100/25K
Harga: $3-$12
Kemasan rincian: 20/baki
Waktu pengiriman: Di kapal stok dalam waktu 3 hari
Syarat-syarat pembayaran: TT, Net30/60/90 hari
Menyediakan kemampuan: 350k/bulan
Nomor bagian: |
TE 4-2170808-1 |
Jenis aksesori termal disertakan: |
Heat sink |
Tipe kandang: |
Dikeroyok |
Faktor bentuk: |
QSFP28/56 |
Jumlah port: |
1x2 |
Kecepatan Data (Maks): |
28GB/s |
Nomor bagian: |
TE 4-2170808-1 |
Jenis aksesori termal disertakan: |
Heat sink |
Tipe kandang: |
Dikeroyok |
Faktor bentuk: |
QSFP28/56 |
Jumlah port: |
1x2 |
Kecepatan Data (Maks): |
28GB/s |

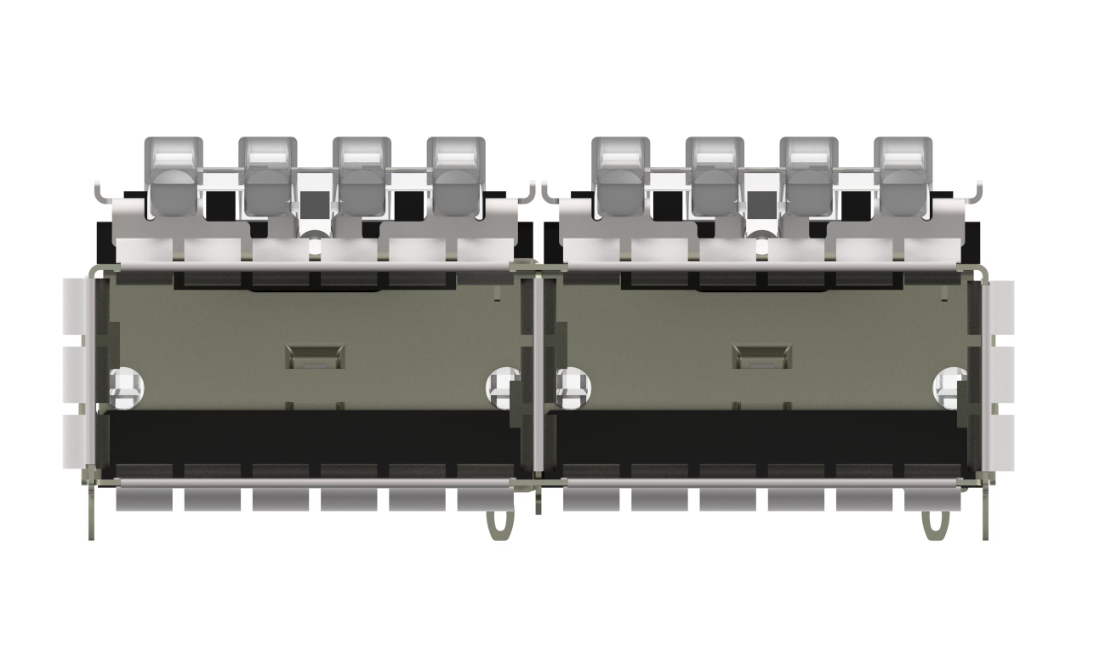

| Parameter | Specification |
|---|---|
| Product Type | Cage Assembly (Pluggable I/O) |
| Ports / Configuration | 2 ports (1 × 2 matrix) |
| Max Data Rate | 28 Gb/s |
| Temperature Range | –40 °C to +85 °C (–40 °F to +185 °F) |
| Sealable | No |
| Contact Termination | Through-hole, press-fit, tail length 2.05 mm |
| PCB Thickness (recommended) | 1.57 mm (0.062 in) |
| Cage Material | Nickel Silver |
| Heat Sink | Pin type, anodized black finish |
| Heat Sink Height | 4.2 mm |
| EMI Features | Internal & external EMI springs |
| Flammability Rating | UL 94V-0 |
| Packaging | Box & Tray |
| Included Accessories | Lightpipe |
This cage assembly is intended for high-speed data transmission applications using QSFP28 / QSFP56 optical or copper modules. It is suitable for:
