Rincian Produk
Tempat asal: Guangdong, Cina
Nama merek: LINK-PP
Sertifikasi: RoHS Compliant
Nomor model: SM42P01EL
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 800 BUAH
Harga: $0.06-$3.2
Kemasan rincian: Tape & Reel, 800 pcs./reel
Waktu pengiriman: di kapal stok hari ini
Syarat-syarat pembayaran: TT, Net30/60/90 hari
Menyediakan kemampuan: 3kk/bulan
Nomor bagian: |
SM42P01EL |
Jenis: |
Transformator PoE |
Laju data: |
Basis 5G-T |
Gaya terminasi: |
Smt |
Suhu operasi (tingkat komersial): |
-40-+85 ° C. |
Tegangan isolasi: |
1500 vac, 60 detik |
Induktansi: |
230uh |
Jumlah saluran: |
segi empat |
Nomor bagian: |
SM42P01EL |
Jenis: |
Transformator PoE |
Laju data: |
Basis 5G-T |
Gaya terminasi: |
Smt |
Suhu operasi (tingkat komersial): |
-40-+85 ° C. |
Tegangan isolasi: |
1500 vac, 60 detik |
Induktansi: |
230uh |
Jumlah saluran: |
segi empat |

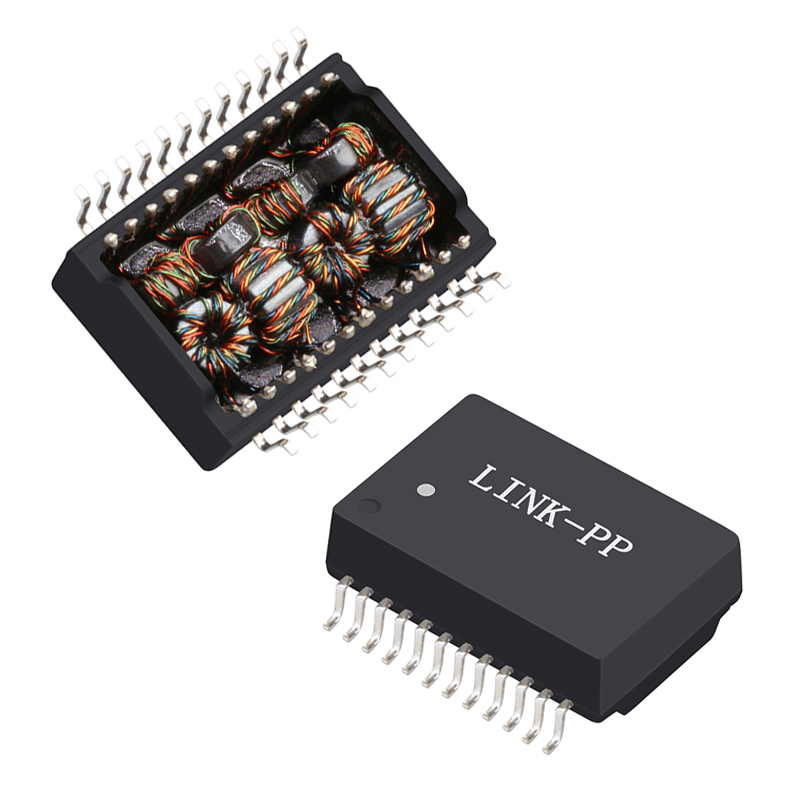

SM42P01EL Chip LAN Transformer Module designed for 5 Gigabit Ethernet (5GbE) applications, supporting PoE+ (Power over Ethernet Plus). This surface-mount (SMT) transformer integrates common-mode chokes to ensure superior EMI suppression, signal integrity, and isolation performance. Engineered for high-speed networking, it provides reliable connectivity for next-generation Ethernet devices requiring efficiency, compact size, and robust power delivery.
| Parameter | Specification |
|---|---|
| Inductance | 230 µH min. @ 100 kHz, 0.1 V |
| Insertion Loss (TD-MX) | 1-100 MHz: −1.0 dB max. 100-250 MHz: −2.0 dB max. |
| Return Loss (TD-MX) | 1-40 MHz: −16 dB min. 40-250 MHz: −(16 − 10 log(f/40)) dB min. |
| Crosstalk | 1-250 MHz: −35 dB min. |
| DCMR (TD-MX) | 1-50 MHz: −30 dB min. 50-150 MHz: −20 dB min. 150-250 MHz: −15 dB min. |
| Hi-Pot | 1500 Vac, 60 s |
| PoE+ Current | 600 mA |
| Operating Temperature | −40 °C to +85 °C |
| Storage Temperature | −40 °C to +85 °C |
