Rincian Produk
Place of Origin: China
Nama merek: LINK-PP
Sertifikasi: RoHS compliant, REACH compliant, UL certified
Model Number: 74991114410
Ketentuan Pembayaran & Pengiriman
Minimum Order Quantity: 400/2000/10K/25K
Harga: $0.06-$0.6
Packaging Details: Tape & Reel, Tube
Delivery Time: In Stock Ship Within 3 Days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Products: |

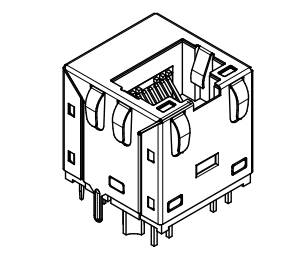

74991114410 RJ45 Vertical Connenctor |
Number of Ports: |
1 |
Tab: |
Vertical |
EMI Fingers: |
Yes |
Mount: |
THT |
Data Rate: |
1000BASE-T |
LED (Left-Right): |
yellow/green-yellow/green |
PHY Chip Mode: |
Current |
Products: |
74991114410 RJ45 Vertical Connenctor |
Number of Ports: |
1 |
Tab: |
Vertical |
EMI Fingers: |
Yes |
Mount: |
THT |
Data Rate: |
1000BASE-T |
LED (Left-Right): |
yellow/green-yellow/green |
PHY Chip Mode: |
Current |
| Atribut | Nilai |
|---|---|
| Produk | 74991114410 RJ45 Konektor vertikal |
| Jumlah Pelabuhan | 1 |
| Tab | Vertikal |
| Jari EMI | Ya, aku tahu. |
| Gunung | THT |
| Tingkat Data | 1000BASE-T |
| LED (kiri-kanan) | Kuning/hijau-kuning/hijau |
| PHY Chip Mode | Saat ini |
| Properti | Spesifikasi |
|---|---|
| Bahan Rumah Plastik | Termoplastik PA66, Hitam |
| Kemampuan Menyala Rumah | UL94 V-0 |
| Bahan Perisai | Tembaga |
| Perlengkapan Pelindung | 30 μ" nikel |
| Bahan kontak | Fosfor Perunggu |
| Contact Plating | 30 μ" emas lebih dari 50 μ" nikel |
| Tipe pemasangan | THT (Through-Hole Technology) |
| Orientasi | Vertikal |
| Siklus Perkawinan | 750 Siklus |
| Properti | Kondisi pengujian | Nilai |
|---|---|---|
| Tingkat Data | - | 1000BASE-T |
| PoE | - | non-PoE |
| Induktansi | 100 kHz / 100 mV @ 8 mA | 350 μH menit. |
| Tegangan Uji Isolasi | 1 menit | 2250 V (DC) menit. |
| Rasio berputar | - | 11 ± 3% |
| Kerugian Penempatan (IL) | 1-100 MHz | -1 dB maksimal. |
| Kembali kerugian (RL) | 1-30 MHz | - 18 dB min. |
| Kembali kerugian (RL) | 30-60 MHz | -13,5 dB min. |
| Kembali kerugian (RL) | 60-80 MHz | - 12 dB min. |
| Kembali kerugian (RL) | 80-100 MHz | - 10 dB min. |
| Swara lintas | 1-60 MHz | - 32 dB min. |
| Swara lintas | 60-100 MHz | - 30 dB min. |
| Penolakan Mode Umum (CMRR) | 1-30 MHz | -35 dB min. |
| Penolakan Mode Umum (CMRR) | 30-60 MHz | - 32 dB min. |
| Penolakan Mode Umum (CMRR) | 60-100 MHz | - 30 dB min. |
| Properti | Spesifikasi |
|---|---|
| Suhu operasi | -40°C sampai +85°C |
| Kondisi Penyimpanan | < 40°C; < 75% RH (dalam kemasan asli) |
| Tingkat Sensitivitas Kelembaban (MSL) | 1 |
