Rincian Produk
Tempat asal: Cina
Nama merek: Link-pp
Sertifikasi: RoHS compliant
Nomor model: 74981104402
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 1 buah, sampel gratis
Harga: $0.9 - $2.3
Kemasan rincian: baki
Waktu pengiriman: sekitar 3 hari
Syarat-syarat pembayaran: TT, NET30/60/90 Hari, Western Union
Menyediakan kemampuan: 20K Potongan per Minggu
Nomor bagian: |

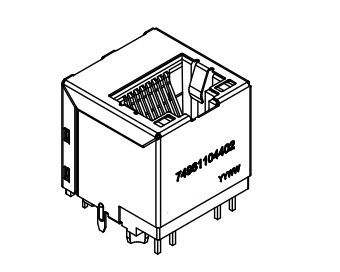

74981104402 RJ45 Konektor vertikal |
Jumlah port: |
1 |
Jumlah baris: |
1 |
Warna LED: |
Hijau, Kuning - Hijau, Kuning |
Melindungi: |
Terlindung |
Aplikasi: |
10/100/1000 Basis-t |
Pemasangan: |
Melalui Lubang Reflow |
Orientasi: |
Vertikal |
Suhu operasi: |
-40 ° C ~ 85 ° C. |
Hubungi Ketebalan Selesai: |
30,0µin (0,76µm) |
Nomor bagian: |
74981104402 RJ45 Konektor vertikal |
Jumlah port: |
1 |
Jumlah baris: |
1 |
Warna LED: |
Hijau, Kuning - Hijau, Kuning |
Melindungi: |
Terlindung |
Aplikasi: |
10/100/1000 Basis-t |
Pemasangan: |
Melalui Lubang Reflow |
Orientasi: |
Vertikal |
Suhu operasi: |
-40 ° C ~ 85 ° C. |
Hubungi Ketebalan Selesai: |
30,0µin (0,76µm) |
| Specification | 74981104402 |
|---|---|
| Number of Ports | 1×1 |
| Tab Position | Vertical |
| Data Rate | 1000BASE‑T |
| Mount | THR |
| EMI Tabs | NO |
| LED Type | yellow/green-yellow/green |
| PHY Chip Mode | voltage |
| Operating Temperature | Industrial Grade -40 °C up to +85 °C |
| RoHS Compliant | Yes |
| PoE | non-PoE |
| Integrated Magnetics | With |
| Turns Ratio (TX/RX) | 1:1 |
| Open Circuit Inductance (OCL) | 350µH (minimum) with 8mA DC bias |
| Insertion Loss | -16 dB min @1-40 MHz -10 + 20*log(f/80MHz) dB min @40-100 MHz |
| Crosstalk | -30 dB min @1-100 MHz |
| Common Mode Rejection Ratio (CMRR) | -30 dB min@1-100 MHz |
| Hi-Pot (Isolation Voltage) | 1500 Vrms |
