Rincian Produk
Place of Origin: China
Nama merek: LINK-PP
Sertifikasi: UL,RoHS,Reach,ISO
Model Number: 1-1840860-1
Ketentuan Pembayaran & Pengiriman
Minimum Order Quantity: 50/500/1000/60K
Harga: $0.11-$7
Packaging Details: Tray
Delivery Time: 3-5 days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Number of Ports: |
Stacked 2x6 |
Series: |

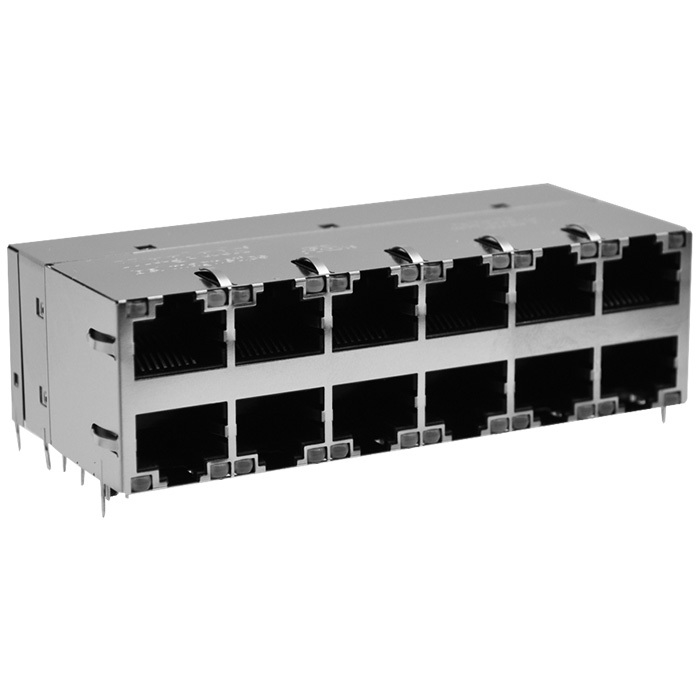

Multiport RJ45 Connector with Magnetics |
EMI Fingers: |
With |
LED Configuration: |
G/G |
Operating Temperature: |
0°C to +70°C |
Free Samples: |
Available |
Number of Ports: |
Stacked 2x6 |
Series: |
Multiport RJ45 Connector with Magnetics |
EMI Fingers: |
With |
LED Configuration: |
G/G |
Operating Temperature: |
0°C to +70°C |
Free Samples: |
Available |
| Part Number | 1840860‑1 |
|---|---|
| Number of Ports | 2×6 (Stacked) |
| Ethernet Speed | 1000BASE‑T (Gigabit) |
| LED Presence | Yes |
| LED Type | Green/Green (G/G) |
| Height Profile | Standard |
| Port Configuration | Stacked |
| EMI Shield Tabs | Yes |
| Mounting Type | Through-Hole |
| Operating Temp. (ºC) | 0 ~ +70 |
| RoHS Compliant | Yes |
1. Electrostatic Discharge (ESD)
2. Connector Cleaning
3. Soldering Precautions
