Rincian Produk
Place of Origin: CHINA
Nama merek: LINK-PP
Sertifikasi: RoHS compliant

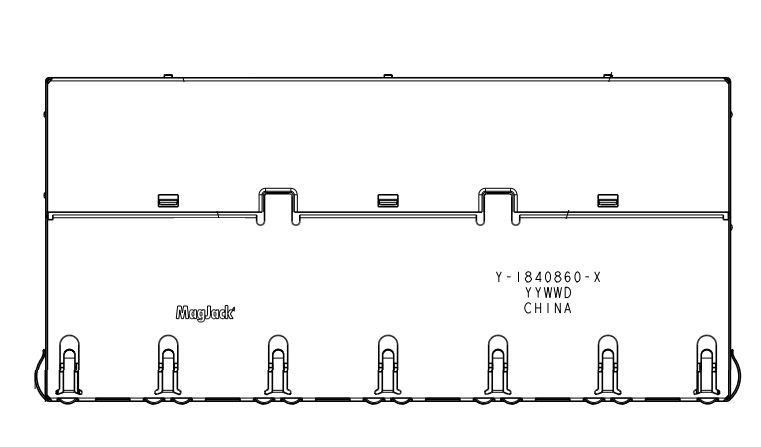

Model Number: 1840860-4
Ketentuan Pembayaran & Pengiriman
Minimum Order Quantity: 1pcs，Free samples
Harga: $1.2 - $3.5
Packaging Details: Tray
Delivery Time: About 3 Days
Payment Terms: TT, NET30/60/90 Days, Western Union
Supply Ability: 20K Pieces per Week
Number of Ports: |
Multiport RJ45 |
Series: |
2X6 |
Port Configuration: |
Stacked |
Application: |
Gigabit Ethernet |
EMI Tabs: |
With |
Operating Temperature: |
0°C ~ 70°C |
Number of Ports: |
Multiport RJ45 |
Series: |
2X6 |
Port Configuration: |
Stacked |
Application: |
Gigabit Ethernet |
EMI Tabs: |
With |
Operating Temperature: |
0°C ~ 70°C |
| Parameter | Spesifikasi |
|---|---|
| Nomor Bagian | 1840860-4 |
| Aplikasi | 10/100/1000BASE-T |
| Impedansi | 100 Ω |
| Rasio berputar (Chip: Kabel) | 11:1 (Semua Empat Pasangan) |
| OCL (Induktansi Sirkuit Terbuka) | ≥ 350 μH @ 100 kHz, 0,1 Vrms, bias DC 8 mA, 0 ̊70°C |
| Pasangan dua arah | Keempat pasang |
| Kerugian Penempatan (IL) | ≤ -1,1 dB (1100 MHz) |
| Kembali kerugian (RL) | ≥ -18 dB (1 ̇40 MHz); ≥ -12 ̇20·log ((f/80) dB (40,1 ̇100 MHz) |
| Atenuasi Crosstalk | ≥ -35 dB (1 ̇40 MHz); ≥ -33 ̇20·log ((f/50) dB (40,1 ̇100 MHz) |
| CMRR (Common Mode Rejection) | ≥ -30 dB (1100 MHz) |
| Tegangan isolasi | 2250 VDC, 60 detik, 500 V/detik naik, semua port terhubung |
PeraturanKonektor RJ45 2x6 yang ditumpukdengan magnetik terintegrasi banyak digunakan di lingkungan Ethernet kepadatan tinggi yang membutuhkan antarmuka jaringan yang andal, hemat ruang, dan kecepatan tinggi.
