Rincian Produk
Place of Origin: GuangDong, China
Nama merek: LINK-PP
Sertifikasi: UL,RoHS,Reach,ISO

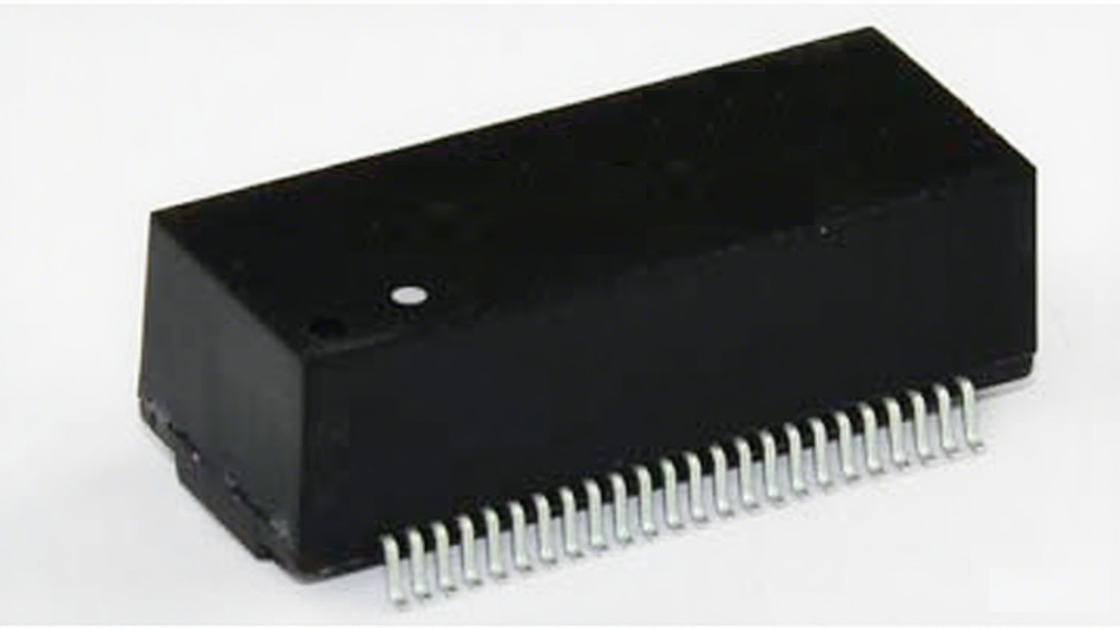

Model Number: HST-48002S
Ketentuan Pembayaran & Pengiriman
Minimum Order Quantity: 50/500/1000/60K
Harga: $1.1-$16
Packaging Details: Tray
Delivery Time: in Stock Ship Today
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Part Number: |
HST-48001S / HST-48002S |
Series: |
SMD 48Pins Magnetics Modules |
Speed: |
1000 Base-T |
PoE: |
Non-PoE |
RoHS compliance: |
Yes |
Operating Temperature: |
0 to 70℃ |
Part Number: |
HST-48001S / HST-48002S |
Series: |
SMD 48Pins Magnetics Modules |
Speed: |
1000 Base-T |
PoE: |
Non-PoE |
RoHS compliance: |
Yes |
Operating Temperature: |
0 to 70℃ |
| Nomor Bagian | HST - 48001S | HST - 48002S |
|---|---|---|
| Insertion Loss | 1.0 dB MAKS | 1.4 dB MAKS |
| Return Loss (@ 100Ω)1 - 30 MHz | -18 dB MIN | -18 dB MIN |
| Return Loss (@ 100Ω) 40 MHz | -14.4 dB MIN | -14.4 dB MIN |
| Return Loss (@ 100Ω) 50 MHz | -13.1 dB MIN | -13.1 dB MIN |
| Return Loss (@ 100Ω) 60 - 80 MHz | -12 dB MIN | -12 dB MIN |
| Return Loss (@ 100Ω) - 100 MHz | -10 dB MIN | -10 dB MIN |
| DCMR 30 MHz | -43 dB MIN | -43 dB MIN |
| DCMR 60 MHz | -37 dB MIN | -37 dB MIN |
| DCMR 100 MHz | -33 dB MIN | -33 dB MIN |
| Crosstalk 30 MHz | -45 dB MIN | -45 dB MIN |
| Crosstalk 60 MHz | -40 dB MIN | -35 dB MIN |
| Crosstalk 100 MHz | -35 dB MIN | -30 dB MIN |
| Hipot | 1500Vrms MIN | 1500Vrms MIN |
● Dirancang untuk memenuhi persyaratan IEEE 802.3ab.
● Cocok untuk aplikasi non-PoE.
● Induktansi Primer (Lp) 350uH min.@100KHz,0.1Vrms,DC 8mA.
● Induktansi Kebocoran (LL) 0.5uH Maks (pada 100kHz, 0.1V).
● Induktansi Keseimbangan (BL) 1.0uH Maks (pada 100kHz, 0.1V)
● Dirancang untuk penyolderan reflow pada suhu 260 °C Maks.
● Suhu Pengoperasian 0℃ hingga +70'℃,10%~90%RH.
● Kepatuhan RoHS.
