Rincian Produk
Tempat asal: Cina
Nama merek: LINK-PP
Sertifikasi: ISO 9001,ISO 14001,UL,SGS,REACH168
Nomor model: 1-1840661-7
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 50/500/1000/25K
Harga: $0.09-$1.85
Kemasan rincian: 50 pcs/1Tray, 20 baki/1 karton, 32*30*31cm, 8kgs (1000 pcs)/1 karton
Waktu pengiriman: Stok
Syarat-syarat pembayaran: TT,NET30/60/90 Hari
Menyediakan kemampuan: 4200K-PCS/Bulan
Item: |
1-1840661-7 konektor RJ45 dengan transformator |
Jumlah port: |
Ditumpuk 2x4 |
TAB EMI: |
Ya. |
Lampu indikator: |
Pergi ke kiri, pergi ke kanan |
Kecepatan: |
1000Base-T |
Suhu operasi: |
0 ~ +70ºC |
Item: |
1-1840661-7 konektor RJ45 dengan transformator |
Jumlah port: |
Ditumpuk 2x4 |
TAB EMI: |
Ya. |
Lampu indikator: |
Pergi ke kiri, pergi ke kanan |
Kecepatan: |
1000Base-T |
Suhu operasi: |
0 ~ +70ºC |
|

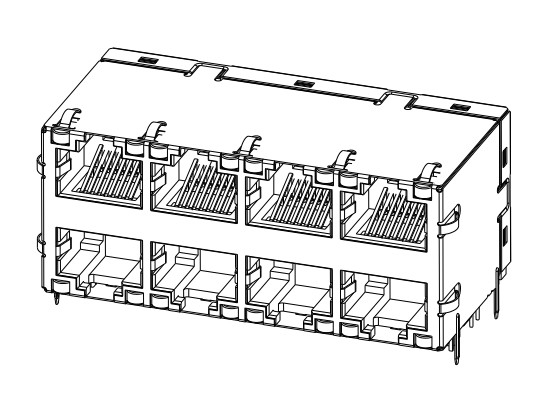

RJ45 Connector with 1000 Base-T Integrated Magnetics |
|
|
Part Number |
1-1840661-7 |
|
Length |
28.12mm |
| Width | 59.07mm |
| Height | 25.50mm |
| Connector Type | RJ45 Multi-Port Jack |
|
LED Option |
GREEN ORANGE / GREEN ORANGE |
|
Latch |
TAB UP AND DOWN |
|
Number of Ports |
2X4 |
|
Transform |
INTEGRATED MAGNETICS |
|
PCB Mount Angle |
SIDE ENTRY |
|
UL Certification |
YES |
|
RoHS Compliant |
YES |
| Housing Material | Thermoplastic |
| Thermoplastic | UL94V-0 |
|
Shield EMI Tabs |
WITH |
|
Application |
10/100/1000 BASE-T |
|
Temperature Range |
0 TO 70℃ |
| Transmission mode | Full duplex |
| IMPEDANCE | 100 OHMS |
|
Turns Ratio |
(CHIP: CABLE)1:1 ALL FOUR PAIRS |
| INDUCTANCE (OCL) | 350uH MIN @100kHz, 0.1 VRMS, 8mADC BIAS FROM 0°C TO 70°C |
| Isolation voltage | 2250VDC(MAX) |
The MagJack 1-1840661-7 is a high-performance multi-port Integrated Connector Module designed for Gigabit Ethernet applications. It integrates four RJ-45 connectors with transformers and LED indicators in a compact form factor, providing a complete physical layer interface solution. The product features excellent electrical performance, reliable design, and comprehensive LED status indication, making it suitable for various network devices and communication equipment requiring Gigabit Ethernet Magjacks.
