Rincian Produk
Tempat asal: Guangdong, Cina
Nama merek: LINK-PP
Sertifikasi: UL,RoHS,Reach,ISO
Nomor model: 7490140123, 7490140124, 7490140125
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 400/2000/10 ribu/25 ribu
Harga: $0.06-$2.2
Kemasan rincian: T&R
Waktu pengiriman: Stok
Syarat-syarat pembayaran: TT,NET30/60/90 Hari
Menyediakan kemampuan: 3KK/Bulan
Tarif Data: |
10/100 Basis-T |
Pelabuhan: |
1 |
Gaya Pemasangan: |
TPS |
Ternyata Rasio: |
1:1 |
PoE: |
Non-PoE |
Induktansi: |
350uH |
Tegangan Isolasi: |
1500V RMS |
Suhu operasi: |
-40 °C hingga +85 °C |
Tarif Data: |
10/100 Basis-T |
Pelabuhan: |
1 |
Gaya Pemasangan: |
TPS |
Ternyata Rasio: |
1:1 |
PoE: |
Non-PoE |
Induktansi: |
350uH |
Tegangan Isolasi: |
1500V RMS |
Suhu operasi: |
-40 °C hingga +85 °C |

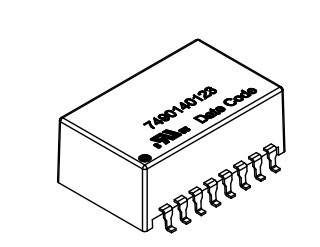

| Nomor Bagian | 7490140123 | 7490140124 | 7490140125 |
| Rata data | 10/100 Base-T | 10/100 Base-T | 10/100 Base-T |
| Jumlah PIN | 16Nomor PIN | 12Nomor PIN | 24 PIN |
| Rasio berputar | 11 (± 2%) | 11 (± 2%) | 11 (± 2%) |
| Induktansi | 350 μH | 350 μH | 350 μH |
| Isolation Voltage (tekanan isolasi) | 1500V (RMS, 1 menit) | 1500V (RMS, 1 menit) | 1500V (RMS, 1 menit) |
| Kerugian Penempatan | -1,4 dB maksimum (1 ‰ 100 MHz) | -1,2 dB maksimal (1 ‰ 100 MHz) | -1,4 dB maksimum (1 ‰ 100 MHz) |
| Kembali Kerugian |
-14 dB min (1 ‰ 30 MHz), -9 dB min (3060 MHz), -8 dB min (60~80 MHz), -7 dB min (80 ∼ 100 MHz) |
-16 dB min (1 ‰ 30 MHz), -14 dB min (3060 MHz), -9 dB min (60~80 MHz), -8 dB min (80~100 MHz) |
-14 dB min (1 ‰ 30 MHz), -9 dB min (3060 MHz), -8 dB min (60~80 MHz), -7 dB min (80 ∼ 100 MHz) |
| Rasio Penolakan Mode Umum (CMRR) |
-20 dB min (1 ‰ 30 MHz), -18 dB min (3060 MHz), -15 dB menit (60-100 MHz) |
|
-20 dB min (1 ‰ 30 MHz), -18 dB min (3060 MHz), -15 dB menit (60-100 MHz) |
| Rasio Penolakan Modus Umum (DCMR)) |
-30 dB min (1 ‰ 30 MHz), -25 dB min (3060 MHz), -20 dB menit (60-100 MHz) |
-35 dB min (130 MHz), -32 dB min (3060 MHz), -30 dB menit (60-100 MHz) |
-30 dB min (1 ‰ 30 MHz), -25 dB min (3060 MHz), -20 dB menit (60-100 MHz) |
| Crosstalk (CT) |
-40 dB min (160 MHz), -35 dB min (60-100 MHz) |
-33 dB min (160 MHz), -30 dB menit (60-100 MHz) |
-40 dB min (160 MHz), -35 dB min (60-100 MHz) |
| Tipe pemasangan | SMT | SMT | SMT |
| Suhu operasi | -40°C sampai +85°C | -40°C sampai +85°C | -40°C sampai +85°C |
| Resistensi DC (Max) | 500mΩ (100 kHz / 100 mV (Pin 9-16) | 1300mΩ(100 kHz / 100 mV (Pin 7-12) | 500mΩ(100 kHz / 100 mV (Pin 13-24) |
| Dimensi (L × W × H) | 24.28 × 15.1 × 11.0 mm | 17.1 × 14,75 × 8,65 mm | 18.25 × 15,59 × 10,02 mm |
| Jarak bebas | 2.5 mm | 2.5 mm | 2.5 mm |
| Jarak merangkak | 4 mm | 4 mm | 4 mm |
| Pelabuhan | 1 | 1 | 1 |
