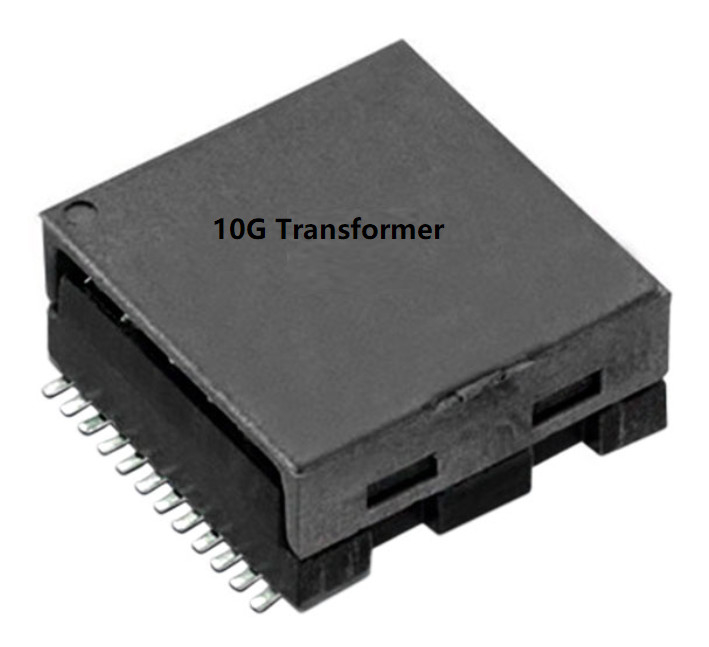

SMT Mount 749052014 LAN Magnetic Supports 10GBASE-T Ethernet

Name: SMT Mount 749052014 LAN Magnetic Supports 10GBASE-T Ethernet
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: 749052014
Price: 1.06 USD
Availability: InStock

Rincian Produk

Place of Origin: GuangDong, China

Nama merek: LINK-PP

Sertifikasi: RoHS, REACH

Model Number: 749052014

Ketentuan Pembayaran & Pengiriman

Minimum Order Quantity: 100pcs

Harga: Negotiable & Discount

Packaging Details: Packaging Quantity : 20 Packaging Method : Box & Tray, Tray

Waktu pengiriman: Dikirim dalam waktu 15 hari

Syarat-syarat pembayaran: T/T, L/C, Western Union

Supply Ability: 6000K-PCS/Month

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                    10G LAN Magnetic, 749052014, 10G Ethernet Magnetics


Jenis transformator:	10 transformator gigabit	Part Number:	749052014
PoE:	Non-PoE	Ternyata Rasio:	1:1
Inductance (OCL):	180 µH	Isolation Voltage:	1500 V RMS
Mounting Type:	Surface Mount (SMT)	Dimensions (L × W × H):	17.73mm × 14.86mm × 7.24mm

Jenis transformator:	10 transformator gigabit
Part Number:	749052014
PoE:	Non-PoE
Ternyata Rasio:	1:1
Inductance (OCL):	180 µH
Isolation Voltage:	1500 V RMS
Mounting Type:	Surface Mount (SMT)
Dimensions (L × W × H):	17.73mm × 14.86mm × 7.24mm

SMT Mount 749052014 LAN Magnetic Supports 10GBASE-T Ethernet

749052014 High Speed LAN Magnetics Overview:

The High Speed LAN Magnetics 749052014 is designed for 10GBASE-T Ethernet applications. Supporting data rates up to 10 Gbps, this SMT transformer offers a compact footprint (17.73 mm × 14.86 mm × 7.24 mm) and robust reliability with a 1500 V RMS isolation voltage. Featuring a 1:1 turns ratio and 180 µH minimum inductance, it ensures excellent signal integrity with low insertion loss and superior return loss across a wide frequency range. The 749052014 operates over an extended industrial temperature range from -40°C to +105°C and complies with IEEE 802.3an standards, making it ideal for use in EtherCAT and Profinet, as well as routers, switches, servers, IP cameras, and HDBaseT applications. Its fully automated manufacturing process guarantees consistent quality and performance, while its RoHS compliance ensures environmentally friendly design. The 749052014 is the optimal choice for engineers seeking reliable, high-speed magnetic solutions for next-generation networking equipment.

749052014 Datasheet:

SMT Mount 749052014 LAN Magnetic Supports 10GBASE-T Ethernet 0
