Rincian Produk
Place of Origin: GuangDong, China
Nama merek: LINK-PP
Sertifikasi: RoHS, REACH

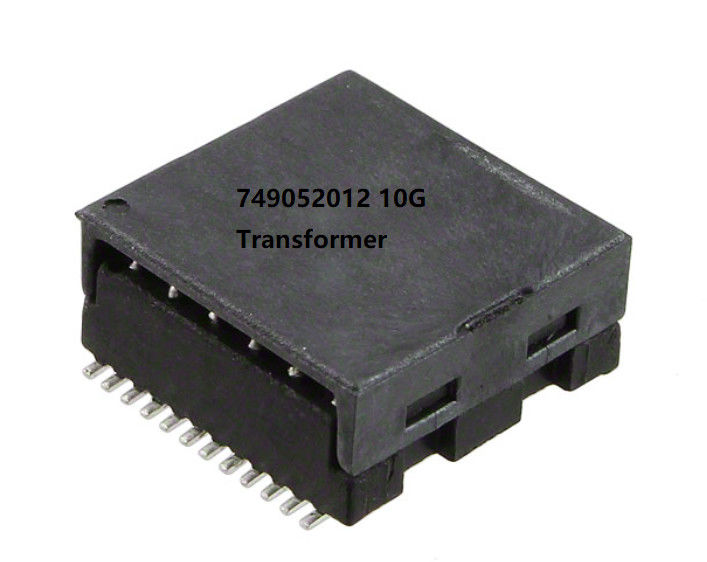

Model Number: 749052012
Ketentuan Pembayaran & Pengiriman
Minimum Order Quantity: 100pcs
Harga: Negotiable & Discount
Packaging Details: Packaging Quantity : 20 Packaging Method : Box & Tray, Tray
Delivery Time: Ships within 15 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 6000K-PCS/Month
Transformer Type: |
SMT Transformer |
Tarif Data: |
10G Basis-T |
PoE: |
PoE+ (up to 600 mA) |
Suhu operasi: |
0 sampai +70 °C |
Improved CMRR: |
NO |
Panjang: |
13.97mm |
Width: |
15.11mm |
Height: |
6.6mm |
Transformer Type: |
SMT Transformer |
Tarif Data: |
10G Basis-T |
PoE: |
PoE+ (up to 600 mA) |
Suhu operasi: |
0 sampai +70 °C |
Improved CMRR: |
NO |
Panjang: |
13.97mm |
Width: |
15.11mm |
Height: |
6.6mm |
| Nomor Bagian | 749052012 |
| Seri produk | 10GLAN Transformer |
| Status | Aktif |
| Nomor PIN | 24 |
| Dukungan PoE | PoE+ |
| Peringkat Saat Ini | 600 mA |
| Rasio berputar | 11 ± 2%@100kHz / 100mV |
| Induktansi (OCL) | 120 μH @ 100kHz / 100mV, 8mA DC Bias |
| Kerugian Penempatan (((IL) | ≤ -3,0 dB @100 kHz 1 MHz |
| Kerugian Penempatan(IL) | ≤ -1,0 dB @1 MHz 250 MHz |
| Kerugian Penempatan (((IL) | ≤ -3,0 dB @250 MHz 500 MHz |
| Kembali kerugian (RL) | ≥ -20 dB @1 ️ 40 MHz |
| Kembali kerugian (RL) | ≥ -16 dB @100 MHz |
| Kembali kerugian (RL) | ≥ -13 dB @200 MHz |
| Kembali kerugian (RL) | ≥ -11,2 dB @250 MHz |
| Kembali kerugian (RL) | ≥ -10 dB @400 MHz |
| Kembali kerugian (RL) | ≥ -8 dB @ 500 MHz |
| Umum untuk penolakan modus diferensial(CDMR) | ≥ -35 dB@1 MHz 100 MHz |
| Umum untuk penolakan modus diferensial(CDMR) | ≥ -30 dB @100 MHz 300 MHz |
| Umum untuk penolakan modus diferensial(CDMR) | ≥ 25 dB @ 300 MHz 500 MHz |
| Rasio Penolakan Mode Umum (CMRR) | ≥ -35 dB@ 1 MHz 100 MHz |
| Rasio Penolakan Mode Umum (CMRR) | ≥ -30 dB @ 100 MHz ️ 250 MHz |
| Rasio Penolakan Mode Umum (CMRR) | ≥ -25 dB @ 250 MHz ️ 500 MHz |
| Swara lintas |
≤ -40 dB (1MHz 100MHz) ≤ -30 dB (100MHz 500MHz) |
| Isolation Voltage (tekanan isolasi) | 1500 Vrms |
| Jangkauan suhu operasi | 0°C sampai +70°C |
