Rincian Produk
Place of Origin: Guangdong, China
Nama merek: LINK-PP
Sertifikasi: UL,ISO,ROHS,REACH
Model Number: S558-5500-JB
Ketentuan Pembayaran & Pengiriman
Minimum Order Quantity: 18/864pcs
Harga: $0.9-$2.3
Packaging Details: Tape and Reel
Delivery Time: 5-10 working days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 5KK/Month
Part Number: |
S558-5500-JB |
Number of Ports: |
Single |
Data Rate: |
1G、2.5G |
PoE: |
100W PoE |
Operating temperature range: |
-40 to 85℃ |
RoHS: |
RoHS-certified |
Pin Count: |
24 |
Pin Pitch: |
0.05 inch |
CM Filter: |
3 Wire |
Mounting Type: |
SMT |
Part Number: |
S558-5500-JB |
Number of Ports: |
Single |
Data Rate: |
1G、2.5G |
PoE: |
100W PoE |
Operating temperature range: |
-40 to 85℃ |
RoHS: |
RoHS-certified |
Pin Count: |
24 |
Pin Pitch: |
0.05 inch |
CM Filter: |
3 Wire |
Mounting Type: |
SMT |

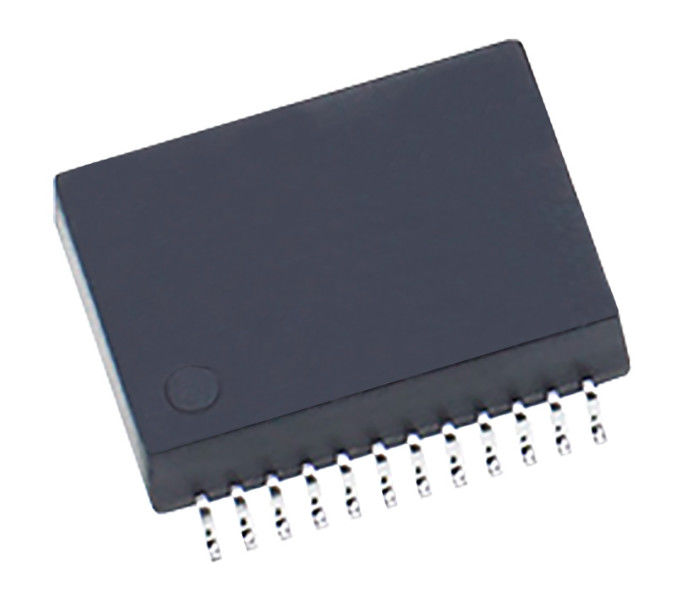

| Nomor Bagian | S558-5500-JB |
| Status Bagian | Aktif |
| Jenis Transformer | LAN 1/2.5 GBase-T Power Over Ethernet Transformer |
| Tipe pemasangan | Permukaan Gunung |
| Jumlah Terminal | 24 |
| Panjang Transformer LAN | 17.53 mm |
| Kedalaman Transformer LAN | 15.24 mm |
| Ketinggian Transformer LAN | 5.71 mm |
| Aplikasi | 1GBase/2.5GBaseT, 100W PoE |
| Suhu operasi | -40°C ~ 85°C |
| Kemasan | Pita dan Reel |
| Spesifikasi Listrik @ 25°C | |
| Rasio berputar (± 2%) |
1CT:1CT |
| OCL (@100KHz/100mV) | 180uH MIN dengan 8mA DC BIAS 120uH MIN dengan 23mA DC BIAS |
| Kapasitas pengikat, Cww | 30pFMax @1KHz/20mV |
| DCR | 1A MAX 57VDC terus menerus |
| HI-POT | Kebocoran arus kurang dari1mAAT 1500VAC |
| Kerugian Penempatan | 1-100MHz = -1.odBMaksimal |
| Swara lintas |
-35dBMin@ 1MHz sampai 40MHz |
| CMRR |
-25dBMin@ 1MHz sampai 150MHz |
| Kembali Kerugian |
-20dBMin@ 1MHz sampai 40MHz |
