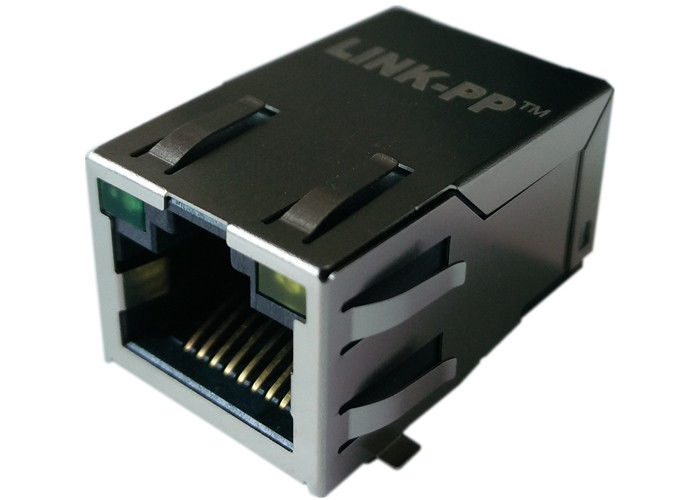

Pulsa J3011G21DNL SMT RJ45 PCB Connector 10/100Base-T permukaan mount Jack

Pulse J3011G21DNL SMT RJ45 PCB Connector 10/100Base-T Surface Mounting Jack
Pulse J3011G21DNL SMT RJ45 PCB Connector 10/100Base-T Surface Mounting Jack Pulse J3011G21DNL SMT RJ45 PCB Connector 10/100Base-T Surface Mounting Jack Pulse J3011G21DNL SMT RJ45 PCB Connector 10/100Base-T Surface Mounting Jack

Gambar besar :  Pulsa J3011G21DNL SMT RJ45 PCB Connector 10/100Base-T permukaan mount Jack

Detail produk:
Tempat asal: Guangdong, Cina
Nama merek: LINK-PP
Sertifikasi: ISO9001,SGS,UL,CE,REACH
Nomor model: J3011G21DNL
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 500 PC
Harga: Supportive&Competitive
Kemasan rincian: 150 pcs dalam 1 reel, 6 kumparan di 1 karton, yang merupakan 35 * 35 * 35 cm, 9KGS (900 pcs) masing-
Waktu pengiriman: persediaan
Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day
Menyediakan kemampuan: 3000000/bulan
Kontak
Detil Deskripsi produk
Spesifikasi: J3011G21DNL Lintas PN: SM-LPJ8011ABNL
Ethernet: 10/100 Cepat Lan Proyek aplikasi: Wireless Port Antarmuka
Penghentian: Solder LED: Hijau / Kuning
Menyorot:

smt RJ45 connector

,

jack profil ultra rendah

Pulse J3011G21DNL SMT RJ45 PCB Konektor 10 / 100Base-T Surface Mounting Jack

Spesifikasi Listrik @ 25 ℃
1.Turns Ratio (± 2%):
TX = 1CT: 1CT RX = 1CT: 1CT
2.OCL: 350uH Min
@ 100KHz, 100mV, arus bias 8mA
Kerugian 3.Insion:
1-65MHz: -1.0dB Maks
4.Return Loss (dB Min @ 100Ω ± 15Ω):
1-10MHz: -20 30MHz: -16
60-80MHz: -12
5.Crosstalk (dB Min):
1-10MHz: -40 30-60MHz: -35
60-100MHz: -30
6. Penolakan Mode Umum (dB Min):
1-50MHz: -30 50-130MHz: -20
7.Isolation Voltage: 1500Vrms Min
8. Suhu Operasi: -40 ℃ ～ + 85 ℃
PN terkait
V811-1X4T-03 MJR11D2GYA0-H33D RM6-10KARV1F 678384005
V811-1X4T-03-F MJR11D2GYA0-H34F RM7-10KARU1F 678384006
V811-1X4T-06 MJR11D2GYA0-K30Y RM9-1SKARU1F 678384104
V811-1X4T-06-F MJR11D2GYA0-K33D RMT-131AGF1F 855035001
V890-1AX1-A1 MJR11D2GYA1-H30Y RN2-10N0F41F 855045001
V890-1AX1-A1 MJR11D2GYA1-H33D RN6-10W0F51F 855055002
V890-1AX1-A1A MJR11D2GYA1-H34F RS3-2840H41A 855055113
V890-1AX1-V6 MJR11D2GYA1-K30Y RSBH20108K1F 855105017
V890-1AX1-Y5 MJR11D2GYA1-K33D RT2-10FB4K1A 855105018
V890-1CX1-46 MJR11D2NNA0-H30Y RT5-1070NM3D 855105019
V890-1CX1-A1 MJR11D2NNA0-H33D RT5-1670KC2F 855105020
V890-1CX1-Y5 MJR11D2NNA0-H34F RT5-1950K21F 855105025
V890-1G1T-A1 MJR11D2NNA0-K30Y RT7-103ABP1A 855105026
V890-1GX1-V6 MJR11D2NNA0-K33D RT7-103GG41A 855105027
V890-1GX1-Y5A MJR11S2NNA4-H34L RT7-104A8K2A 855105028
V890-1RX1-46 MJR11S2NNA4-H359 RT7-114AAG1A 855105117
V890-1RX1-A1 MJR11S2NNA4-H35V RT7-114ABP1A 855105118
