Rincian Produk
Tempat asal: Guangdong, Cina
Nama merek: LINK-PP
Sertifikasi: UL,ROHS,Reach,ISO
Nomor model: HFJV1-2450-L12RL
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 50/500/1000/25K
Harga: $0.09-$1.85
Kemasan rincian: Paket: 60 PC di nampan 1, 22 nampan dalam 1 karton yang 37 * 30 * 30 cm, 10 kg (1320 pcs) dari setia
Waktu pengiriman: persediaan
Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day
Menyediakan kemampuan: 3000000/bulan
Nomor bagian: |
HFJV1-2450-L12RL |
BUATAN CHINA: |
SM-LPJD1011BDNL |
Cross & datasheet: |
LPJD1011BDNL |
Antarmuka: |
10/100Mbps |
Proyek aplikasi: |
NETWORK INTERFACE CARD |
Sampel: |
Gratis Active |
Nomor bagian: |
HFJV1-2450-L12RL |
BUATAN CHINA: |
SM-LPJD1011BDNL |
Cross & datasheet: |
LPJD1011BDNL |
Antarmuka: |
10/100Mbps |
Proyek aplikasi: |
NETWORK INTERFACE CARD |
Sampel: |
Gratis Active |
Nomor bagian | Buatan China | Pabrikan | Deskripsi |

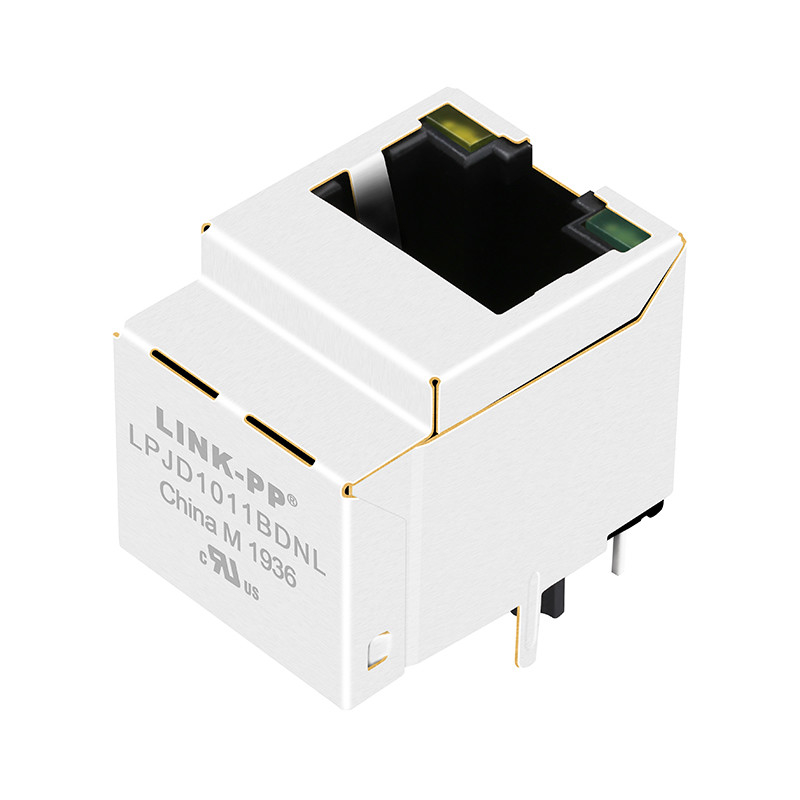

HFJV1-2450-L12RL | SM-LPJD1011BDNL | LINK-PP | File Langkah Vertikal RJ45 Jack HFJV1-2450-L12RL 10 / 100Base-T LPJD1011BDNL |
Seri | Tipe Konektor | Aplikasi | Mounting Type |
Konektor, Interkoneksi | LINK-PP Rj45 | 10 Mbps | Melalui lubang |
Orientasi | Penghentian | Warna LED | Melindungi |
180 ° Sudut (Vertikal) | Pateri | Kuning hijau | Terlindungi |
| SPESIFIKASI LISTRIK @ 25 ℃ 1.Turn Ratio (± 2%): TX = 1CT: 1CT RX = 1CT: 1CT 2.Inductance OCL: 350uH MIN @ 100KHz, 0.1V, 8mA DC Bias Kerugian 3.Insion: -1.1dB MAX @ 0,1 ～ 100MHz 4.Return Loss: -18dB MIN @ 0,5 ～ 30MHz -15,5dB MIN @ 40MHz -13.6dB MIN @ 50MHz -12dB MIN @ 60 ～ 80MHz 5.Cross talk: -40dB TYP @ 0,1 ～ 100MHz 6. Penolakan Mode Umum: -50dB TYP @ 0,1 ～ 30MHz -40dB TYP @ 30 ～ 60MHz -35dB TYP @ 60 ～ 100MHz 7.Hipot Test: 1500Vrms MIN 8. Suhu Operasi: 0 ℃ ～ 70 ℃. | |||
HFJV1-2450RL | HFJV1-2450-L12RL | HFJV1-E2450RL | HFJV1-E2450-L12RL |
HFJV1-2450-L11RL | HFJV1-2450-L15RL | HFJV1-E2450-L11RL | LPJD0713B31NL |
LPJD0835BDNL | HFJV1-E2450-L55RL | HFJV1-E2450-L78RL | LPJD0773BFNL |
LPJD1011BDNL | LPJD0025DNL | LPJD0011BENL | LPJD0813BENL |
LPJD1011BENL | LPJD0055BANL | LPJD0011BGNL | LPJD0820BENL |
LPJD1011BFNL | LPJD0093DNL | LPJD0011DNL | LPJD0834BDNL |
LPJD1011DNL | LPJD0101BENL | LPJD0012BENL | LPJD4012BENL |
LPJD4011BENL | LPJD0110BANL | LPJD0012BHNL | LPJD4012DNL |
HFJV1-2450-L78RL | LPJD0115BENL | LPJD0012DNL | LPJD4013BGNL |
LPJD4140BENL | LPJD0115BHNL | LPJD0012NENL | LPJD4056BDNL |
LPJD4709BENL | LPJD0152BENL | LPJD0012NFNL | LPJD4122BDNL |
LPJD4835BDNL | LPJD0213NFNL | LPJD0025BENL | HFJV1-2450-L55RL |
HFJV1-E2450-L15RL | LPJD0711BDNL | HFJV1-2450-L21RL | HFJV1-2450-L77RL |
HFJV1-E2450-L17RL | LPJD0711BENL | LPJD5013BGNL | HFVJ1-E2450-L77RL |
HFJV1-E2450-L21RL | HFJV1-2450-L17RL | LPJD6049BENL | HFJT1-1075RL |
