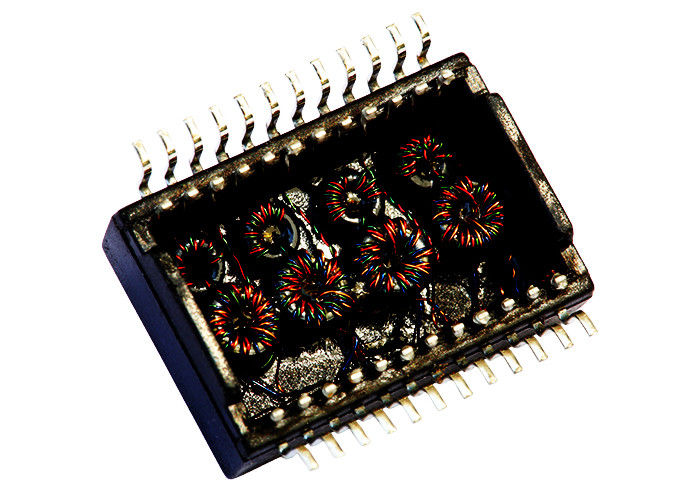

Rincian Produk
Tempat asal: Guangdong, Cina
Nama merek: LINK-PP
Sertifikasi: UL,RoHS,Reach,ISO
Nomor model: PT61022
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 400/2000/10K/25K
Harga: $0.06-$3.2
Kemasan rincian: T&R
Waktu pengiriman: persediaan
Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day
Menyediakan kemampuan: 3KK/Bulan
Item No: |
PT61022 |
Kategori: |
Gigabit Magnetics |
Ternyata Ratio: |
1: 1 |
pemasangan: |
SMD |
Ukuran / Dimensi: |
18,80 mm X 13,80 mm |
Tinggi - duduk (Max): |
6.80 mm |
Archivi Disponibili: |
PDF / 3D / ISG / Stp / Langkah / Datasheet |
Item No: |
PT61022 |
Kategori: |
Gigabit Magnetics |
Ternyata Ratio: |
1: 1 |
pemasangan: |
SMD |
Ukuran / Dimensi: |
18,80 mm X 13,80 mm |
Tinggi - duduk (Max): |
6.80 mm |
Archivi Disponibili: |
PDF / 3D / ISG / Stp / Langkah / Datasheet |
fitur
■ Versi gratis Lead tersedia
■ RoHS compliant (versi bebas timah) *
■ Compliant dengan Standar Draft IEEE802.3ab untuk 1000 Base-T
■ Dirancang untuk Long Haul Gigabit Ethernet 10/100/1000 aplikasi Full Duplex Base-T
■ Surface mount kemasan profil rendah yang dirancang untuk proses reflow (225 ° puncak)
■ Mendukung 4 pasang kabel UTP Kategori 5
■ LAN
■ Ethernet
Induktansi .......................... 350 μH mnt. dengan 8 mA DC bias @ 100 KHz, 0,2 V
Induktansi kebocoran ........... 0,50 µH maks.
@ 100 KHz, 0,2 V
Interwinding Capacitance ....... 25 pF typ.
@ 100 KHz, 0,2 V
Ketahanan DC ..................... 0,90 Ω maks.
Rugi Penyisipan .................... 0,3-100 MHz
-1,1 dB maks.
Return Loss (dB menit)
0,3-30 MHz ...................................... 18
40 MHz ........................................- 14,4
50 MHz ........................................- 13.1
60-80 MHz .................................. 12
Cross Talk (dB mnt.)
0,3-30 MHz ...................................... 35
60-100 MHz ....................................- 28
Penolakan Mode Umum (dB mnt.)
0,3-30 MHz ...................................... 40
60 MHz ............................................- 35
80-100 MHz ....................................- 30
Ternyata Rasio .......................... 1 CT: 1 ± 5%
Isolasi Hi-Pot .... 1500 VAC 1 mA 1 detik.
Suhu Operasional
.......................................... 0 ° C hingga +70 ° C
| PT61022 LAN 10/100/1000 Modul Trafor Dasar-T LV2001 Gigabit Port | ||
|---|---|---|
| S558-5999-T3-F / H2009NL | DA4T103A3 | LU4S041F-43 LF |
| KLU1T041C-43 LF / LU1T041C-43 LF | H2009NL | LU4T041A LF |
| KLU1T516-34 LF / LU1T516-34 LF | DA4T103U2 | KLU1S041F-43 LF |
| HX2009NL / LU1S041-43 LF | TG111-E032NYRL | KLU1S041X-43 |
| KLU1T041-43 LF / LU1T041-43 LF | DA4T104A1 | KLU1S516-34 LF |
| KLU1T041C-43 LF / LU1T041C-43 LF | DU4T201A1 | S558-5999-T3-F |
| TG111-E032NYRL | DA4T10303 | KLA1S109F-1-43 LF |
| KLU1T516-43 LF / LU1T516-43 LF | DA4T10304 | KLA1S109M-43 LF |
| HX2009NL / LA1S109-43 LF | S558-5999-T3-F | H2009NL |
| LU1S041-43 LF / KLU1S041-43 LF | DA4T103N3 | TG111-E032NYRL |
| S558-5999-T3-F | H2009NL | S558-5999-T3-F |
| KLU1S041C-43 LF / LU1S041C-43 LF | TG111-E032NYRL | KLA1S109-34 LF |
| HX2009NL / LU1S041CM-43 LF | DA6T103A3 | KLA1T109 LF |
| S558-5999-T3-F / LU1S041CX-34 LF | S558-5999-T3-F | TG111-E032NYRL |
