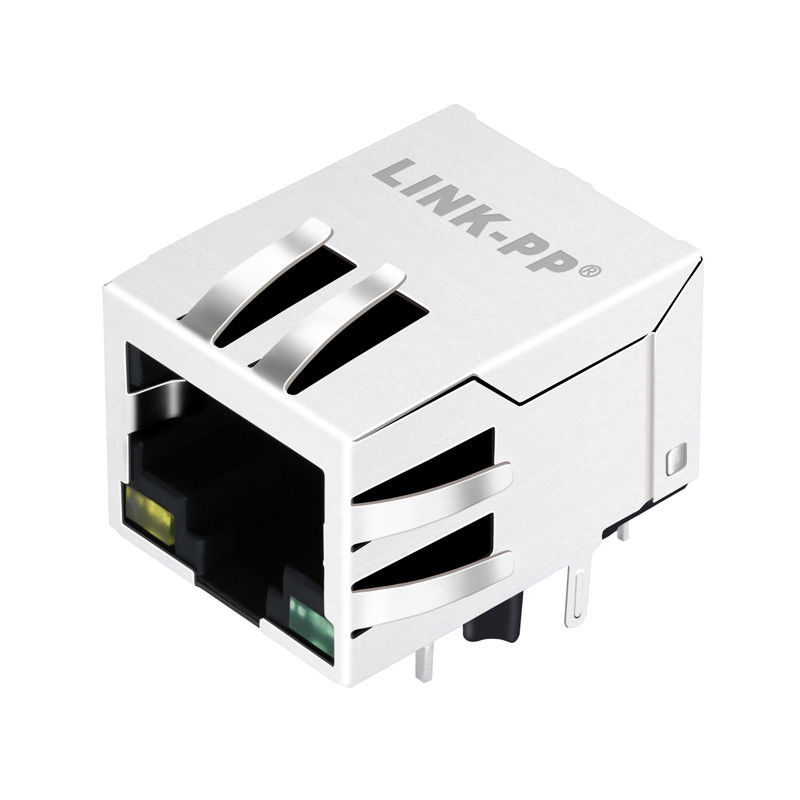

LPJ0112GDNL UTP-5 kabel RJ45 Connector, POE RJ45 13F-6XGYDNW2NL IEEE802.3af

Name: LPJ0112GDNL UTP-5 kabel RJ45 Connector, POE RJ45 13F-6XGYDNW2NL IEEE802.3af
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: 13F-6XGYDNW2NL
Price: 0.05 USD
Availability: InStock

Rincian Produk

Tempat asal: Cina

Nama merek: LINK-PP

Sertifikasi: UL,ROHS,Reach,ISO

Nomor model: 13F-6XGYDNW2NL

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 50/500/1000/25K

Harga: $0.05-$1.28

Kemasan rincian: 50PCS / Baki, 1200pcs / Carton

Waktu pengiriman: persediaan

Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day

Menyediakan kemampuan: 4200K-PCS / Bulan

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:
                                                                                                                                    RJ-45 ethernet jack, modular Jack rj45


Artikel:	13F-6XGYDNW2NL	Nomor Bagian:	LPJ0112GDNL
Ethernet:	10/100 Kekuatan Melalui Ethernet	Sampel:	Tersedia gratis

Artikel:	13F-6XGYDNW2NL
Nomor Bagian:	LPJ0112GDNL
Ethernet:	10/100 Kekuatan Melalui Ethernet
Sampel:	Tersedia gratis

LPJ0112GDNL UTP-5 kabel RJ45 Connector, POE RJ45 13F-6XGYDNW2NL IEEE802.3af

LPJ0112GDNL UTP-5 Kabel RJ45 Konektor, POE Rj45 13F-6XGYDNW2NL IEEE802.3af

1.10/100 Base-T POE Magnetic JackPencocokan impedansi

2.1X1 Tab-down

3. melalui lubangJack modular RJ45

4. 21,3mm panjangRJ45 Magjack

Spesifikasi Listrik @ 25°C
1.Rasio putar ((100KHz,0.1V):
PINS: ((1-2) ️(J1-J2) = 1 ️1

PINS: ((3-6) ↓↓↓↓↓↓↓↓↓

2.OCL ((@100KHz,100mV,8mA DC Bias):
PINS: ((1-3), ((4-6) = 350uH MIN
3.Insertion Loss:
-1,1dB MAX @0,1~100MHz
4.Return Loss:
-18dB MIN @ 0.5 30MHz
-15,5dB MIN @40MHz
-13,6dB MIN @50MHz
-12dB MIN @ 60 ¢ 80MHz

5.Cross bicara:
-38dB TYP @ 1 ¢ 100MHz
6.Mode Umum Penolakan:
-50dB TYP @ 0.1 ¢ 30MHz
-40dB TYP @ 30 ¢ 60MHz
-30dB TYP @ 60 ‰ 100MHz
7.Hipot Test: 1500Vrms
8.Suhu operasi:

0°C sampai 70°C./-40°C sampai 85°C.

LPJ0112GDNL UTP-5 kabel RJ45 Connector, POE RJ45 13F-6XGYDNW2NL IEEE802.3af 0

LPJ0112GDNL UTP-5 kabel RJ45 Connector, POE RJ45 13F-6XGYDNW2NL IEEE802.3af 1
