Rincian Produk
Tempat asal: Guangdong, Cina
Nama merek: LINK-PP
Sertifikasi: UL,RoHS,Reach,ISO
Nomor model: H4001DG
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 400/2000/10K/25K
Harga: $0.06-$3.2
Kemasan rincian: T&R
Waktu pengiriman: persediaan
Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day
Menyediakan kemampuan: 3KK/Bulan

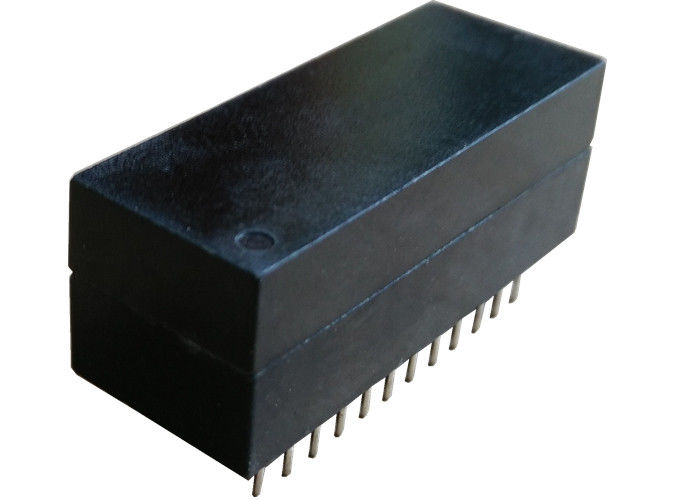

1.Quad Port Lan Transformer
2.ColiStructure: Toroidal
3.100base-t transformator
4.PHT, 24 pin
Spesifikasi Listrik @ 25 ℃
1.Turns Ratio: (± 3%)
TX: 1CT: 1CT RX: 1CT: 1CT
2.HI-POT: 1500Vrms
3.OCL: 350uH Min
@ 100KHz / 0.1V dengan 8mA DC Bias
Kerugian 4.Insion:
1-100MHz: -1.2dB Maks
5.Return Loss:
30MHz: -15dB Min; 50MHz: -13dB Min;
80MHz: -11dB Min
6.Crosstalk:
0.3-30MHz: -40dB Min; 30-60MHz: -35dB Min;
60-100MHz: -30dB Min
7.CMR:
1-30MHz: -30dB Min; 30-60MHz: -25dB Min;
60-125MHz: -20dB Min
1.Magnetik desain untuk mendukung PHY.
2.Complies dengan standar IEEE 802,3 termasuk 350 uH menit OCL dengan bias 8mA.
3.Lead gratis untuk pin eksternal.
4. Rentang suhu operasi: 0 ℃ ～ 70 ℃.
5.Rentang suhu penyimpanan: -25 ℃ ～ 125 ℃.
| 0863-2X4R-54-F | C850-2G4R-54 | 08B1-1X1T-06-F | 08B1-1X1T-03-F |
| 0863-2X6R-54-F | 0874-1X8T-66-F | 0826-1K1T-43-F | 2250273-1 |
| 08B0-1X1T-01-F | 0833-2X8R-55-F | 0826-1X1T-GH-F | 0833-2X6R-33-F |
| G12-1JJT-038 | 0833-2X6R-54N-F | 0838-1X1T-W6 | 0833-2X8R-59-F |
| 0833-2X8R-BU-F | 0810-2H8R-28-F | L829-1J1T-D2 | 0826-144T-23-F1 |
| S553-0716-00 | S553-6500-D6 | S560-6600-GF | S553-6500-41 |
| S553-0756-AE | S553-6500-D8 | S560-6600-GG | S553-6500-43 |
| S553-1006-AE | S553-6500-D9 | S560-6600-GJ | S553-6500-44 |
| S553-1084-01 | S553-6500-E2 | S560-6600-GK | S553-6500-45 |
| S553-1084-11 | S553-6500-E3 | S560-6600-GM | S553-6500-55 |
| S553-1506-AE | S553-6500-E4 | S560-6600-GV | S553-6500-58 |
| S553-2940-01 | S553-6500-E5 | S560-6600-HA | S553-6500-63 |
| S553-2940-02 | S553-6500-E6 | S560-6600-HB | S553-6500-66 |
| S553-2940-03 | S553-6500-E7 | S560-6600-HG | S553-6500-69 |
| S553-2940-04 | S553-6500-F2 | S560-6600-HH | S553-6500-80 |
