H1302NL, H1302NLT 10/100 Transformer XFRMR MAGNETIC 1PORT 1: 1, LP1302NL

Name: H1302NL, H1302NLT 10/100 Transformer XFRMR MAGNETIC 1PORT 1: 1, LP1302NL
Brand: LINK-PP
SKU: H1302NL
Price: 0.06 USD
Availability: InStock
Rating: 4.9 (110 reviews)

Rincian Produk

Tempat asal: Guangdong, Cina

Nama merek: LINK-PP

Sertifikasi: UL,RoHS,Reach,ISO

Nomor model: H1302NL

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 400/2000/10K/25K

Harga: $0.06-$3.2

Kemasan rincian: T&R

Waktu pengiriman: persediaan

Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day

Menyediakan kemampuan: 3KK/Bulan

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyorot:
                                                                                                                                                                                                                                                                                lan discrete transformer, network transformer


Spesifikasi:	H1302NL	P/N:	LP1302NL
Ethernet:	1x10 / 100Mbps	pemasangan:	SMT
Ukur:	12.70x9.40x5.97mm	Sampel:	gratis
Archivi Disponibili:	PDF / 3D / ISG / Stp / Langkah / Datasheet

Spesifikasi:	H1302NL
P/N:	LP1302NL
Ethernet:	1x10 / 100Mbps
pemasangan:	SMT
Ukur:	12.70x9.40x5.97mm
Sampel:	gratis
Archivi Disponibili:	PDF / 3D / ISG / Stp / Langkah / Datasheet

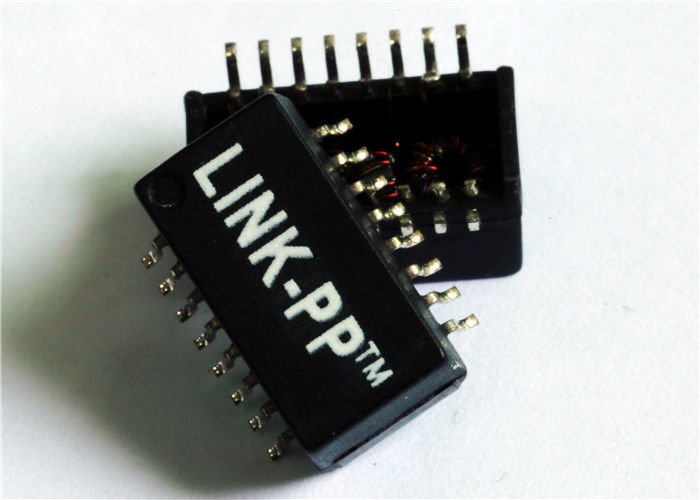

H1302NL, H1302NLT 10/100 Transformer XFRMR MAGNETIC 1PORT 1: 1, LP1302NL

Single Port Lan Transformer LP1302NL Kompatibel

Trafo 100base-t

SMD, 16 pin

H1302NL, H1302NLT Bagian Kompatibel

H1302NL Telecom Transformer 1: 1/1: 1 0.65Ohm Prim. DCR 0,65Ohm Dtk. DCR

Transformer Audio / Transformer Sinyal 100BaseTX SMD NonPoE 350uH .65Ohms 1-Port

Spesifikasi Listrik (25):

1. Ternyata Ratio50KHz, 0,5V

Sisi chip: Sisi garis = 1CT: 1CT + _2%

2. Induktansi (Ls) 100KHz, 0.1V, 12mA DC Bias:

Sisi chip: 350uH Min

3. Penipisan Loss1-100MHz: -1.4dB Max

4. Return Loss1-30MHz: -16dB Min

40MHz: -14.4dB Min

50MHz: -13.1dB Min

60-80MHz: -12dB Min

100MHz: -10dB Min

5. Differential to Common Mode Rejection:

30MHz: -45dB Min

60MHz: -40dB Min

100MHz: -35dB Min

6. Crosstalk30MHz: -40dB Min

60MHz: -35dB Min

100MHz: -30dB Min

7. Hi-Pot: 1500Vrms, Min

Aplikasi:

Digunakan untuk peralatan jaringan dan komunikasi seperti HUB, kartu PC, Switch, Router, Mainboard PC, SDH, PDH, IP Phone, modem xDSL

Keunggulan kompetitif:

2600 staf,

Tes 100%

Waktu pengiriman yang fleksibel

H1302NLT
LP1302NL
LP1011NLE
LP1011NL
LP1011PNL
LP1012NL
LP1012NLE
LP1040PNL

H1302NL, H1302NLT Ethernet Magnetic Transformers 10 / 100base-T Port Tunggal

H1302NL Penjualan Harga terendah Made In China Equivalent Cross Compatible replacement

H1302NLT Penjualan Harga terendah Made In China Equivalent Cross Compatible replacement
