H1060NL, LP1060NL 4x10 / 100Base-T Magnetics Transformer SMD Modul

Name: H1060NL, LP1060NL 4x10 / 100Base-T Magnetics Transformer SMD Modul
Brand: LINK-PP
SKU: H1060NL
Price: 0.06 USD
Availability: InStock
Rating: 4.7 (150 reviews)

Rincian Produk

Tempat asal: Guangdong, Cina

Nama merek: LINK-PP

Sertifikasi: UL,RoHS,Reach,ISO

Nomor model: H1060NL

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 400/2000/10K/25K

Harga: $0.06-$3.2

Kemasan rincian: T&R

Waktu pengiriman: persediaan

Syarat-syarat pembayaran: TT,NET30/60/90 Hari Day

Menyediakan kemampuan: 3KK/Bulan

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyorot:
                                                                                                                                                                                                                                                                                                                                                Transformator SMD, surface mounting transformer


Spesifikasi:	H1060NL	Kompatibel:	LP1060NL
Ethernet:	4 x 10/100Base-T	Sampel:	gratis
Aplikasi:	ETHERNET (NON PoE)	Ternyata Rasio RX:	CT: 1 1 CT
Ternyata Rasio TX:	CT: 1 1 CT	Cores Per Port:	16
Archivi Disponibili:	PDF / 3D / ISG / Stp / Langkah / Datasheet

Spesifikasi:	H1060NL
Kompatibel:	LP1060NL
Ethernet:	4 x 10/100Base-T
Sampel:	gratis
Aplikasi:	ETHERNET (NON PoE)
Ternyata Rasio RX:	CT: 1 1 CT
Ternyata Rasio TX:	CT: 1 1 CT
Cores Per Port:	16
Archivi Disponibili:	PDF / 3D / ISG / Stp / Langkah / Datasheet

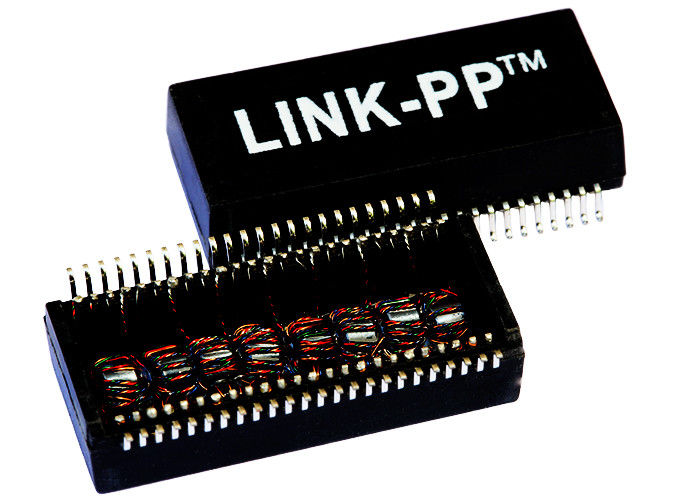

H1060NL, LP1060NL 4x10 / 100Base-T Magnetics Transformer SMD Modul

H1060NL, LP1060NL 4x10 / 100Base-T Magnetics Transformer Modul SMD

1x4 Port Lan Transformer Memenuhi spesifikasi IEEE 802.3
RoHS peak reflow temperature rating: 245 ° C
Model dirancang untuk mendukung empat konektor RJ-45 tunggal atau ganda
Tranceivers transformator 100base-t Membutuhkan 1: 1 Mengirim dan Menerima Rasio Giliran
10 / 100Base-TX Quad Port Transformer Modul
Model Industri LP1062ANLE

Spesifikasi Listrik (25):

1. Ternyata Ratio50KHz, 0,5V

Sisi chip: Sisi garis = 1CT: 1CT + _2%

2. Induktansi (Ls) 100KHz, 0.1V, 12mA DC Bias:

Sisi chip: 350uH Min

3. Penipisan Loss1-100MHz: -1.4dB Max

4. Return Loss1-30MHz: -16dB Min

40MHz: -14.4dB Min

50MHz: -13.1dB Min

60-80MHz: -12dB Min

100MHz: -10dB Min

5. Differential to Common Mode Rejection:

30MHz: -45dB Min

60MHz: -40dB Min

100MHz: -35dB Min

6. Crosstalk30MHz: -40dB Min

60MHz: -35dB Min

100MHz: -30dB Min

7. Hi-Pot: 1500Vrms, Min

Aplikasi:

Digunakan untuk peralatan jaringan dan komunikasi seperti HUB, kartu PC, Switch, Router, Mainboard PC, SDH, PDH, IP Phone, modem xDSL

Keunggulan kompetitif:

2600 staf,

Tes 100%

Waktu pengiriman yang fleksibel

LP1260NLE
H1302NLT
LP1302NL
LP1011NLE

LP1062ANLE
